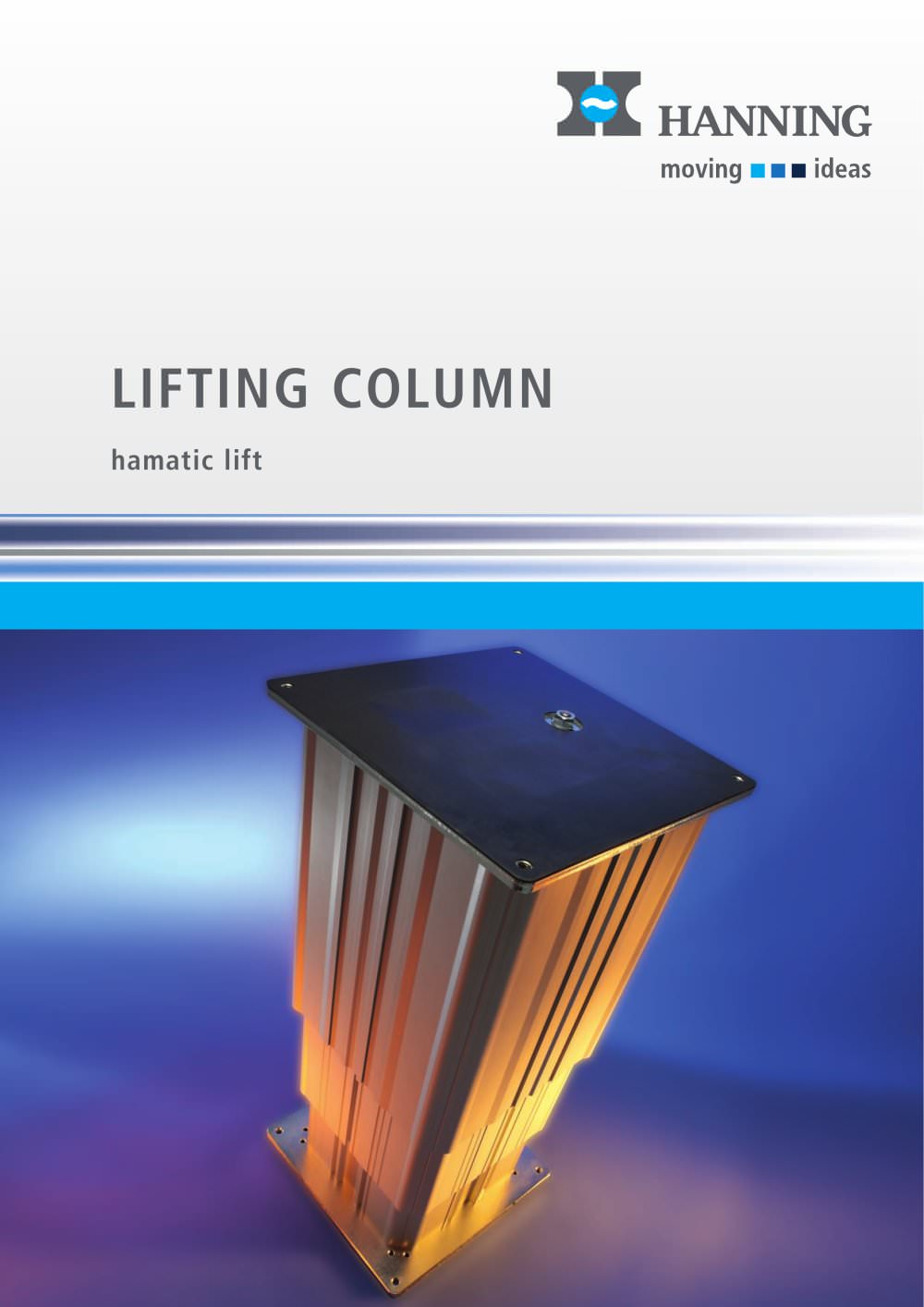

1 / 6 PagesView full catalog

hamatic lift

Product catalog summary

Features

Powered by AC motors with consistent speed during load changes.
High capacity for eccentric loads and patented guidance system.
Operates in temperatures from -20°C to +50°C.
Customizable stroke lengths and control options.
Complies with DIN EN 60601, UL 60601, CSA 60601 standards.

Design and Applications

The hamatic lift is designed for lifting and lowering heavy loads smoothly. It is available in 2 and 3-piece columns with different lifting heights. It is suitable for medical applications like treatment tables and industrial tasks requiring ergonomic solutions. The lift's design allows it to be a main supporting element in various applications.

Technical Specifications

Lifting torque up to 7,000 N and speed up to 32 mm/s.
Max load: 7,000 N for industrial, 5,000 N for medical applications.
Protection class: IP40 - IP44, Class 1.
Duty cycle: 25 s on / 400 s off.
Control options include pneumatic, electric, PLC, and HANNING CTRL unit.

Control and Accessories

Various control units are available, including pneumatic and low-voltage switches. Mounting elements are offered for application-specific attachments.

Diagrams and Dimensions

Force-speed and load-excentricity diagrams are provided for both THS-2 and THS-3 types. Installation dimensions vary based on stroke length, with special dimensions available on request.

Contact Information

HANNING ELEKTRO-WERKE GmbH & Co. KG, Holter Straße 90, D-33813 Oerlinghausen, Germany. Tel: +49 (5202) 707-0, Email: [email protected], Web: www.hew.hanning.com

Catalog excerpts

hamatic lift Mains voltage1~100 / 115 / 230 V AC 10% Mains frequency50 - 60 Hz Max.load7,000 N (industrial applications) or 5,000 N (medical applications) Type of protectionIP40 - IP44 Class of protection1 Duty time25 s on / 400 s offControl options ѕ pneumatically electricallyՕ via standard PLC via HANNING CTRL universal control unit Օ via low-voltage switching elements (in preparation)End position limitation End position limitation through internal micro switches Օ Optionally the end positions can be limited externally by micro switches >
