Circulatory pumps

Product catalog summary

Overview: The document provides technical specifications and features of circulatory pumps designed for both domestic appliances and industrial applications. It includes details on various models, their operational capabilities, and technical data.

Specifications:

The pumps are available in both totally enclosed and open designs, suitable for continuous operation up to an ambient temperature of 60°C.
They are equipped with a thermal protector for safety and an axial face seal for durable sealing.
The pumps exhibit chemical resistance to common commercial washing detergents and have a UL-approved insulation system.
Options are available for different voltages and frequencies (50 Hz or 60 Hz).

Models and Applications:

UP Series (UP 30, UP 60): Suitable for both industrial applications and domestic appliances, available in enclosed and open designs.
CP Series (CP 27, CP 35, CP 50, CP 60): Designed for domestic appliances, available in open design.
PS Series (PS 26, PS 40/PS 40 R, PS 60/PS 60 R, PS 80 S, PS 90 S): Intended for industrial applications, available in both enclosed and open designs.

Technical Data:

Protection degree varies from IP 00 to IP 54 depending on the model.
Input power ranges from 150 W to 3000 W.
Maximum pressure ranges from 0.36 bar to 2.0 bar.
Maximum flow rate ranges from 100 l/min to 950 l/min.
Direction of rotation is specified as clockwise (cw) or counter-clockwise (ccw).
Possible socket positions vary by model, ranging from 4 to 8.

Contact Information: For further inquiries, contact details are provided for Hanning GmbH & Co. KG, located in Oerlinghausen, Germany.

Catalog excerpts

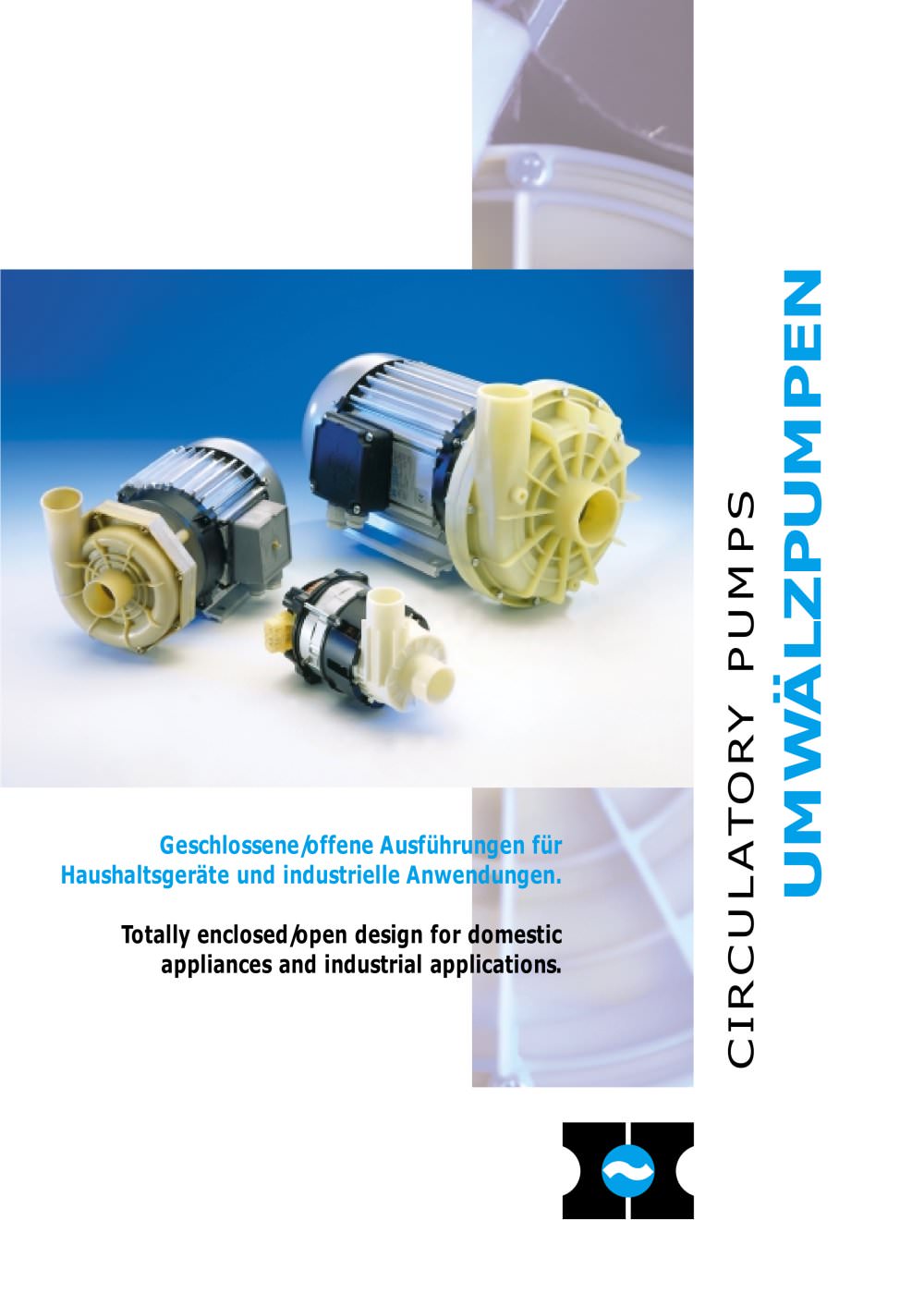

UMWLZPUMPEN CIRCULATORY PUMPS >

Open the catalog to page 1

0,75 0,25bar/DIV 100 l/min / DIV300Flow Rate PRE SSURE 0,75 0,25bar/DIV 100 l/min / DIV300Flow Rate PRE SSURE Typen/ types UP 30, UP 60Geschlossene/offene Ausfhrungf似r industrielle Anwendungen und Hausgerte Typen/ types CP 27, CP 35, CP 50, CP60Offene Ausfhrungf似r Hausgerte totally enclosed /open designfor industrial applications and domestic appliances open designfor domestic appliances > 3,0 1,0bar/DIV 500 l/min / DIV1500Flow Rate PRE S SURE Typen/ types PS 26, PS 40/PS 40R, PS60/PS 60RPS80S, PS 90SGeschlossene/offene Ausfhrungf似r industrielle Anwendungen totally enclosed /open designfor industrial...

Open the catalog to page 2

1000/3/01 GmbH & Co. KG Holter Strae 90 / D-33813 OerlinghausenPhone: +49 (0)5202-707-0 / Fax: +49 (0)5202-707-301 e-mail: [email protected] URL: www.hanning-hew.com >

Open the catalog to page 8
