Industrial Battery Charger- Rectifier
1 / 5Pages

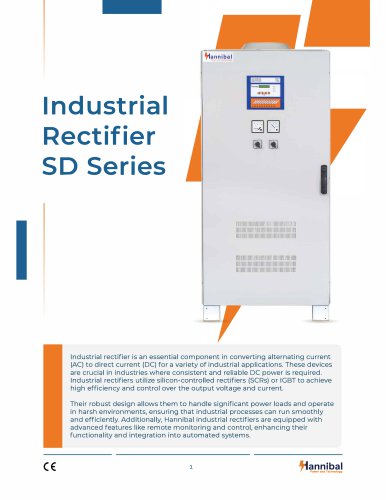

Industrial Rectifier SD Series Industrial rectifier is an essential component in converting alternating current (AC) to direct current (DC) for a variety of industrial applications. These devices are crucial in industries where consistent and reliable DC power is required. Industrial rectifiers utilize silicon-controlled rectifiers (SCRs) or IGBT to achieve high efficiency and control over the output voltage and current. Their robust design allows them to handle significant power loads and operate in harsh environments, ensuring that industrial processes can run smoothly and efficiently. Additionally, Hannibal industrial rectifiers are equipped with advanced features like remote monitoring and control, enhancing their functionality and integration into automated systems. annibal Power and Technology

Benefits Range Overview Applications Continuous and Stable Power Supply: SD Rectifiers ensure a reliable and uninterrupted power source, which is essential for the smooth operation of industrial equipment and processes. Enhanced Energy Efficiency: By converting alternating current (AC) to direct current (DC) efficiently, rectifiers minimize energy losses and improve overall system efficiency. Flexibility integration with operating environment: • Various solutions to operate with the differing input voltage networks (nominal value, tolerance, frequency) • Dedicated fault and status loops for...

Main technical Features — ■ Input Isolation Transformer: Galvanically isolated. ■ . Fast Control with DSP Controller: Ensures precise control. ■ Thyristor/lGBT Technology: For efficient power conversion. *. Float Boost and Equalize Charge: For optimal battery charging. ■ Auto and Manual Charge Mode: Flexible charging options. v Voltage Ripple: Less than 1% (less than 4% on l phase). * Alarm Adjustable Dry Contacts: For monitoring and alerts. ■ ModBus Protocol: RS232, RS485 for communication. - Operation Available While Mains Fail: Ensures continuous operation. ■ Current Limiting: Adjustable...

- Continuous operation at full load at 55 °C ambient to meet industrial-level reliability requirements. * Resistance to vertical and horizontal acceleration up to 0.5 g using robust mechanical design. - Designed for 20+ years of continuous operation with appropriate maintenance plan. - Isolation transformer included. - Full compatibility with lead-acid and nickel-cadmium batteries, sealed or vented. Technioical Data (1) Other value on request / (2) May vary between 10 and 14% according to operation conditions, Option for THDi«S% (+/- lpt) available on 12-pulse version (3) May vary depending...

Industrial Battery Charger SD SERIES Options Consult us for any other requirements, subject to feasibility. Rectifier . Battery circuit protection box . Battery reversed polarity detection . Battery low-voltage disconnection contactor (LVD) . DC earth fault detection . Battery room temperature sensor . Battery monitoring system (Hannibal BMS) . Battery cabinet/ rack . Battery circuit protection box . Battery reversed polarity detection . Battery low-voltage disconnection contactor (LVD) . DC earth fault detection . Battery room temperature sensor . Battery monitoring system (Hannibal BMS) ....
