1414 Series Enclosures - NEMA 12, 13 Clamped, Lift Off Cover

Product catalog summary

Overview: The document provides technical specifications and details for the 1414 Series Enclosures, designed for use as instrument enclosures, electric, hydraulic, or pneumatic control housings, electrical junction boxes, or terminal wiring enclosures. These enclosures offer protection against falling dirt, dust, oil, and water.

Standards: The enclosures comply with UL 508 Type 12 and 13, CSA Type 12 and 13, NEMA Type 12 and 13, JIC EGP-1-1967 (unless marked otherwise), and IEC 60529, IP54.

Construction: The body is made from 16 or 14 gauge steel, with covers from 14 gauge steel. Features include smooth, continuously welded seams, welded brackets for mounting, lift-off covers secured with stainless steel clamps, oil-resistant gaskets, removable inner panels for models larger than 4" x 4", and grounding studs.

Finish: The cover and enclosure are finished in ANSI 61 gray recoatable powder coating, while the removable inner panel is finished in white powder coating.

Accessories: Available accessories include additional inner panels, breather kits, door clamping hardware, filter fans, heaters, louvered ventilating plates, terminal kit assemblies, thermostats, window kits, and swing panels.

Specifications Table: The document includes a detailed table listing part numbers, dimensions, panel sizes, cover dimensions, and shipping weights for various models in the 1414 Series.

Catalog excerpts

1414 Series Enclosures - NEMA 12, 13 Clamped, Lift Off Cover-1

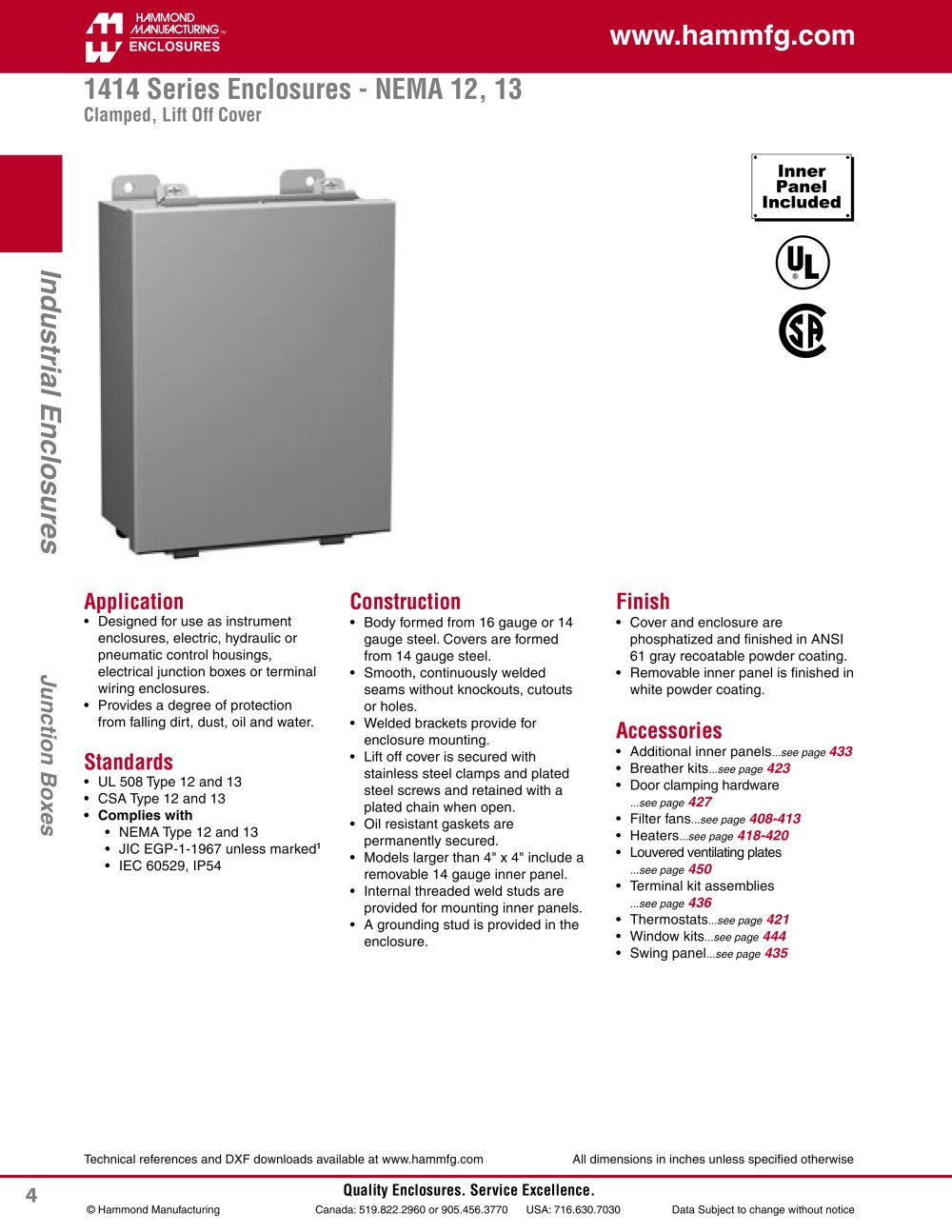

4Industrial Enclosures Quality Enclosures. Service Excellence. © Hammond Manufacturing Canada: 519.822.2960 or 905.456.3770 USA: 716.630.7030 Data Subject to change without notice Technical references and DXF downloads available at www.hammfg.com All dimensions in inches unless specified otherwise Junction Boxes Application Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides a degree of protection from falling dirt, dust, oil and water. Standards UL 508 Type 12 and 13 CSA Type 12 and 13 Complies with NEMA Type 12 and 13 JIC EGP-1-1967 unless marked1 IEC 60529, IP54 • • • • • • • • Construction Body formed from 16 gauge or 14 gauge steel. Covers are formed from 14 gauge steel. Smooth, continuously welded seams without knockouts, cutouts or holes. Welded brackets provide for enclosure mounting. Lift off cover is secured with stainless steel clamps and plated steel screws and retained with a plated chain when open. Oil resistant gaskets are permanently secured. Models larger than 4" x 4" include a removable 14 gauge inner panel. Internal threaded weld studs are provided for mounting inner panels. A grounding stud is provided in the enclosure. • • • • • • • • Finish Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating. Removable inner panel is finished in white powder coating. Accessories Additional inner panels...see page 433 Breather kits...see page 423 Door clamping hardware ...see page 427 Filter fans...see page 408-413 Heaters...see page 418-420 Louvered ventilating plates ...see page 450 Terminal kit assemblies ...see page 436 Thermostats...see page 421 Window kits...see page 444 Swing panel...see page 435 • • • • • • • • • • • • 1414 Series Enclosures - NEMA 12, 13 Clamped, Lift Off Cover
