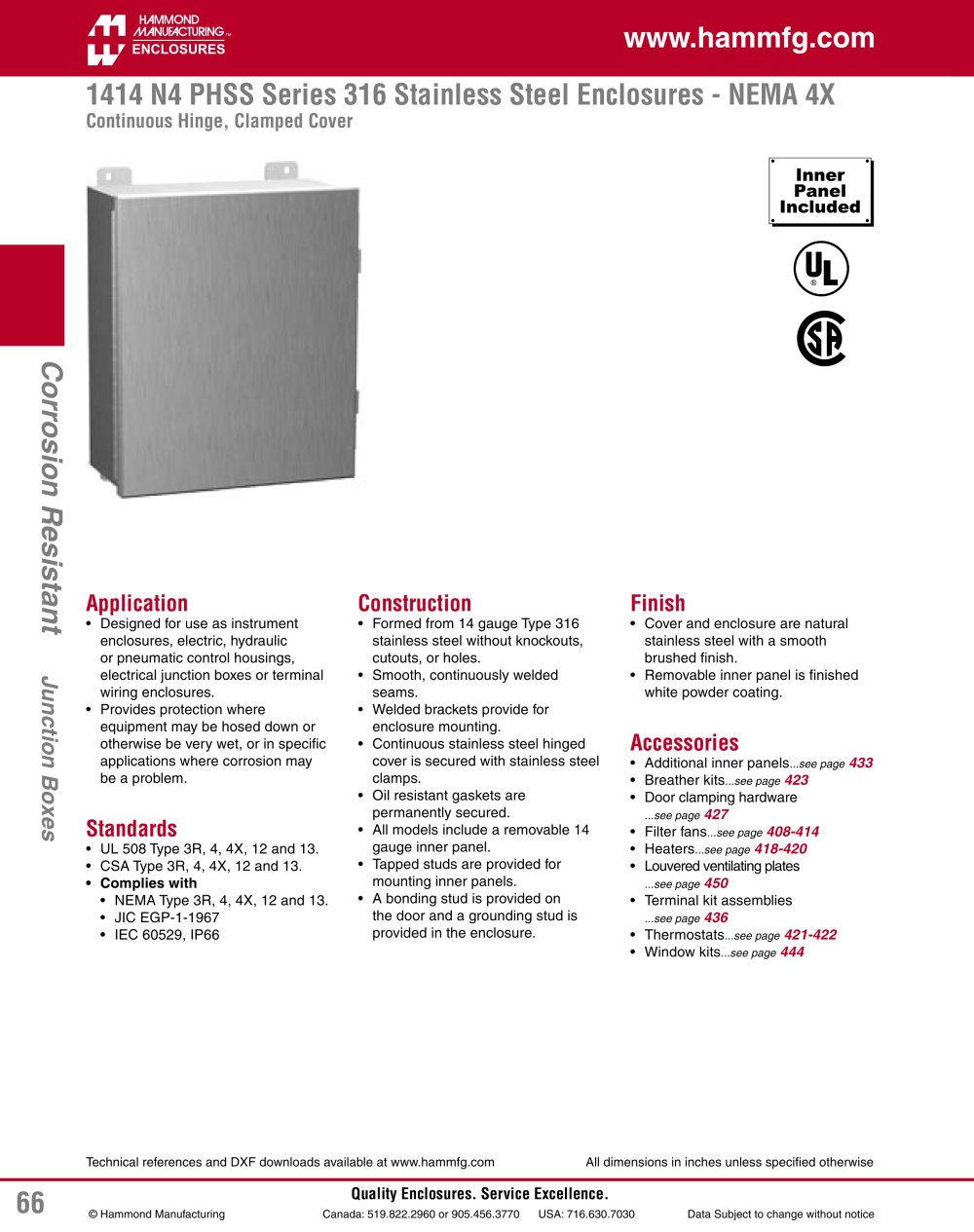

Corrosion Resistant Quality Enclosures. Service Excellence. © Hammond Manufacturing Canada: 519.822.2960 or 905.456.3770 USA: 716.630.7030 Data Subject to change without notice Technical references and DXF downloads available at www.hammfg.com All dimensions in inches unless specified otherwise 66 Junction Boxes Application Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem. Standards UL 508 Type 3R, 4, 4X, 12 and 13. CSA Type 3R, 4, 4X, 12 and 13. Complies with NEMA Type 3R, 4, 4X, 12 and 13. JIC EGP-1-1967 IEC 60529, IP66 • • • • • • • • Construction Formed from 14 gauge Type 316 stainless steel without knockouts, cutouts, or holes. Smooth, continuously welded seams. Welded brackets provide for enclosure mounting. Continuous stainless steel hinged cover is secured with stainless steel clamps. Oil resistant gaskets are permanently secured. All models include a removable 14 gauge inner panel. Tapped studs are provided for mounting inner panels. A bonding stud is provided on the door and a grounding stud is provided in the enclosure. • • • • • • • • Finish Cover and enclosure are natural stainless steel with a smooth brushed finish. Removable inner panel is finished white powder coating. Accessories Additional inner panels...see page 433 Breather kits...see page 423 Door clamping hardware ...see page 427 Filter fans...see page 408-414 Heaters...see page 418-420 Louvered ventilating plates ...see page 450 Terminal kit assemblies ...see page 436 Thermostats...see page 421-422 Window kits...see page 444 • • • • • • • • • • • 1414 N4 PHSS Series 316 Stainless Steel Enclosures - NEMA 4X Continuous Hinge, Clamped Cover
