primary shredder VB 450 DK

Product catalog summary

Transport Dimensions & Weight
The primary shredder VB 450 DK has transport dimensions of 5.7 m in length, 1.8 m in width, and 2.3 m in height. The machine weighs 10 tons, with an additional 1 ton for the magnet.

Advantages

3-part hopper extension for optimal feeding with a wheel loader.
Discharge height suitable for container loading.
Universal use through multifunctional shredding shafts.
User-friendly control system for different materials.

Specifications

Shredding shafts: 1,270 mm with an example configuration of 9/9 discs with 6 knives per disc.
Diesel engine: 154 PS (114 kW) Cummins F3.8 - Stage 5.
Max torque: 80,000 Nm.
Engine speed: 2,200 rpm.
Fuel capacity: 180 liters.
Discharge height: 3,000 mm (33°).
Discharge width: 800 mm.
Working length: 1,270 mm.
Total length: 1,540 mm.
Shaft diameter: 450 mm.
Rotation of shafts: up to 30 rpm.
Hopper volume: 2 m³.
Main & tilting hopper: designed for long materials.

Drive & Discharge Belt
Details on the drive and discharge belt are provided, emphasizing the machine's efficiency and adaptability.

Material Compatibility

Wood: waste wood, pallets, cable drums, root stems, green waste.
Waste: domestic waste, industrial waste, bulky waste, construction & demolition waste, paper rolls.
Metal: aluminum profiles.

Note: Input material should not contain foreign materials thicker than 3 mm.

Principle of Operation

Hydraulically operated low-speed shredder with two special counter-rotating shafts.
Direct feeding with material on the shafts or into the tilting hopper.
Material is shredded directly through the shafts.
Metal separation (ferrous metals) via a permanent overbelt magnet.

Catalog excerpts

DRIVE* diesel engine max. torque engine speed fuel capacity DISCHARGE BELT* discharge height discharge width SHAFTS* working length total length shaft diameter rotation of shafts example: 9/9 discs with 6 knives per disc HOPPER* hopper volume main & tilting hopper 2 m³ tilting hopper with surface for long materials TRANSPORT DIMENSIONS & WEIGHT length x width x height weight 3-part hopper extension for optimal feeding with wheel loader discharge height ensure container loading universal use through multifunctional shredding shafts user-friendly „easy to use“ control for different materials HAMMEL Recyclingtechnik GmbH Leimbacher Str. 130 | D-36433 Bad Salzungen +49(0)3695-69910 | [email protected] *approx. values

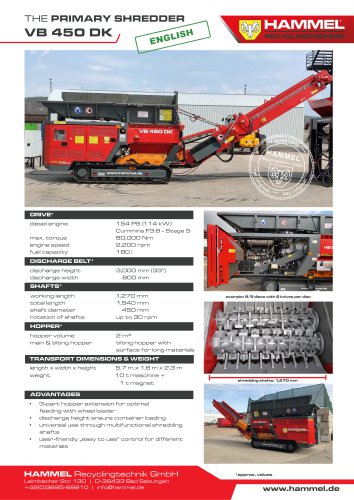

Open the catalog to page 1

MATERIAL* wood: waste wood, pallets, cable drums, root stems, green waste waste: domestic waste,industrial waste, bulky, C & D, Paper rolls metal: aluminium profiles *The input material should not contain any foreign materials thicker than 3 mm. hydraulically operated low-speed shredder with 2 special counter-rotating shafts direct feeding with material on the shafts or into the tilting hopper material is shredded directly through the shafts metal separation (ferrous metals) via permanentoverbelt magnet HAMMEL Recyclingtechnik GmbH Leimbacher Str. 130 | D-36433 Bad Salzungen +49(0)3695-69910...

Open the catalog to page 2
