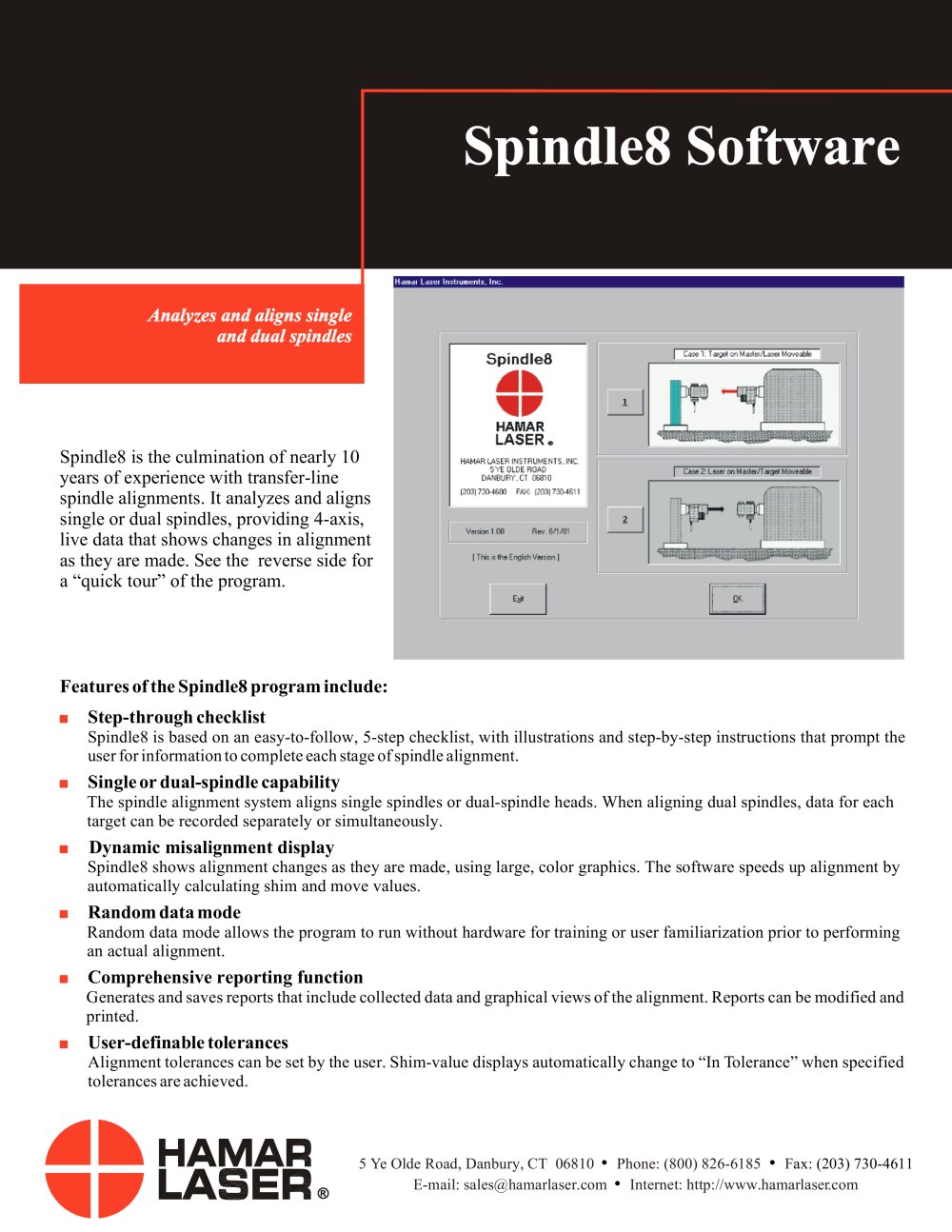

Analyzes and aligns single and dual spindles Analyzes and aligns single and dual spindles Spindle8 is the culmination of nearly 10 years of experience with transfer-line spindle alignments. It analyzes and aligns single or dual spindles, providing 4-axis, live data that shows changes in alignment as they are made. See the reverse side for a quick tourӔ of the program. Features of the Spindle8 program include:Step-through checklist > Spindle8 is based on an easy-to-follow, 5-step checklist, with illustrations and step-by-step instructions that prompt the user for information to complete each stage of spindle alignment. Single or dual-spindle capability > The spindle alignment system aligns single spindles or dual-spindle heads. When aligning dual spindles, data for each target can be recorded separately or simultaneously. Dynamic misalignment display > Spindle8 shows alignment changes as they are made, using large, color graphics. The software speeds up alignment by automatically calculating shim and move values. Random data mode > Random data mode allows the program to run without hardware for training or user familiarization prior to performing an actual alignment. Comprehensive reporting function > Generates and saves reports that include collected data and graphical views of the alignment. Reports can be modified and printed. User-definable tolerances > Alignment tolerances can be set by the user. Shim-value displays automatically change to In ToleranceӔ when specified tolerances are achieved. 5 Ye Olde Road, Danbury, CT 06810 E-mail: sales@hamarlaser.com Օ > Phone: (800) 826-6185 FInternet: http://www.hamarlaser.com ax: (203) 730-4611 Ε >

CHECKLIST-BASED SOFTWARE FOR EASE OF USE Spindle8 is based on a 5-step checklist, with illustrations and step-by-step instructions prompting the user for information to complete each stage of spindle alignment. STEP 1: MACHINE SETUP The user is queried for machine dimensions at specified points, all of which are clearly labeled. If the alignment involves dual spindles, that is specified in this step. Other information, such as alignment tolerances, target setup, units of measure, and company information, is also entered by clicking on the various tabs of the setup screen. All settings can...
