S-680 SHAFT ALIGNMENT SYSTEM
8Pages

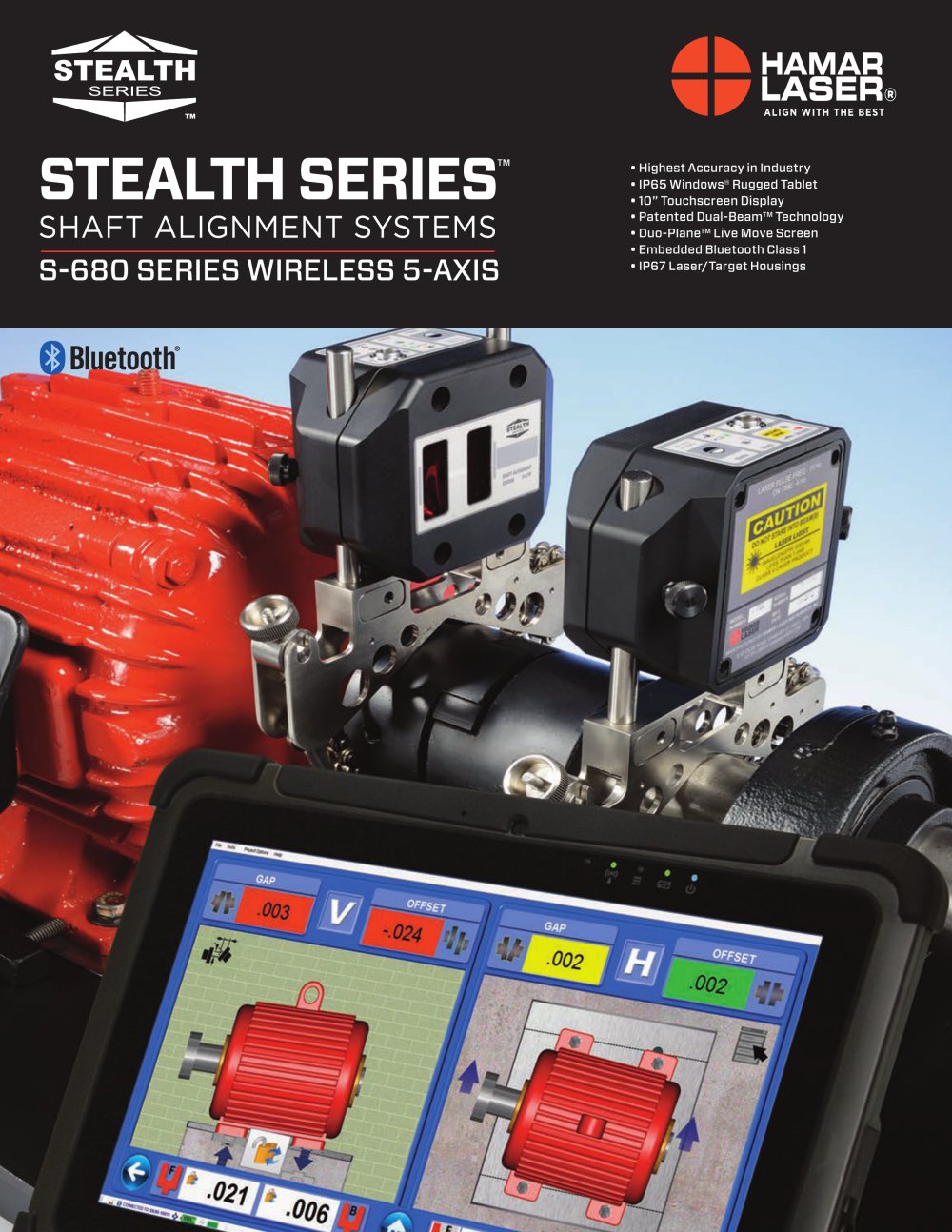

SERIES HAMAR ALIGN WITH THE BEST STEALTH SERIES SHAFT ALIGNMENT SYSTEMS S-680 SERIES WIRELESS 5-AXIS • Highest Accuracy in Industry • IP65 Windows® Rugged Tablet • 10” Touchscreen Display • Patented Dual-Beam™ Technology • Duo-Plane™ Live Move Screen • Embedded Bluetooth Class 1 • IP67 Laser/Target Housings

What sets the S-680 platform Dual-Beam™ detector technology A patented technology that allows the measurement of offset and angle simultaneously with only one PSD, increasing accuracy by 50%. Here’s how it works: 1. Beam #1 blinks on and hits PSD measuring the center offsets. 2. Beam #1 blinks off for ambient light correction. 3. Beam #2 blinks on and bounces off one prism, passes through a lens, bounces off a second prism and hits the PSD, measuring the angle. 4. Beam #2 blinks off for a second ambient light correction. The world’s most advanced laser alignment technology For over 45...

apart from the competition? Duo-Plane™ live move screen for faster, easier alignments The Duo-Plane™ live move screen and T-1290 5-axis target allow you to simultaneously view a live alignment screen for both the vertical and horizontal planes (4 axes) without having to rotate the shafts. This is critically important on large machine applications where tightening the bolts can create horizontal movement of the machine, causing you to have to redo the alignment. Research shows 50% of all machine downtime is the result of poor alignments Duo-Plane™ live move screen shows live motor graphics...

In any alignment system, the hardware is only part the story. The other, more important part is the software. So when we designed the Stealth™ Couple6 software, we had the novice user in mind and created our Easy Guide™ approach to navigation that is so simple to use, it requires little to no training. Easy-to-follow, high quality, color screens lead you through each stage of the alignment, so you don't need to constantly refer to "cheat sheets” just to remember how to use it! Project Menu Start new projects, manage old alignment projects, review saved files and create project templates....

Step 4 - Measure Misalignment Did you know that nearly 50% of the price of our competitor’s lasers comes from the display box? Alignment Report (print or email) Up to five data-taking modes record data for even the most difficult applications. Save multiple sets of data to check repeatability. Data can be archived and data categories assigned to track alignments. Step 4 - Measurement results Click on a set of alignment data to display color-code alignment results. Red means out of tolerance, yellow means “good” and green indicates “excellent”. Foot values are also displayed. Step 5 - Live...

Advanced Couple6 features Display Options S-680 offers familiar MS Windows® rugged, IP65 industrial tablets with 10” touchscreen that runs Couple6 and other HLI programs. Couple6 allows the user to flip the motor graphics to match the pump/motor orientation without having to turn the display upside down! Bolt Bound™ Enter dimension of the pump, and then lock different combinations of the motor and pump feet to see how it affects the alignment. The graphics and shim values automatically update with each click. Vertical Motor Program The industry’s only vertical alignment display with live...

More advanced features Auto Sweep™ simply the best data-taking method. Period. Couple6 automatically saves alignment data with each click Start rotating the shafts and the built-in accelerometer detects the movement, automatically collecting hundreds of data points. Stop rotating the shafts and Couple6 starts calculating the misalignment. More data means more accurate alignment data and less rework. Included in the Couple6 Basic License is Auto-Clock™ and AutoSweep™ data-taking modes. Optional data-taking features include: Arc Mode™, Point Mode, and Uncoupled Swipe™ Mode for those hard-to...

Specifications Laser/Target Unit Size 4.2” x 3.3” x 2.2” (107 mm x 84 mm x 55 mm) Housing Material Impact resistant plastic Detector Type & Size 2-axis super-linear PSD 33 mm (v) x 13 mm (h) provides 4 continuously updating alignment axes (2 alignment plane). Target Measurement Offset: 0.5 micron (.00002”) Resolution Angular: 0.007 mm/m (.00008 in/ft) Target Measurement Offset: <0.15% Angular Sensor Range +/- 5° (+/- .085”/inch or 8.5 mm/100 mm) Laser Type 650 nm dual-beam laser with horizontal adjustment <0.9mW Communication between Wireless Bluetooth® Class 1...
