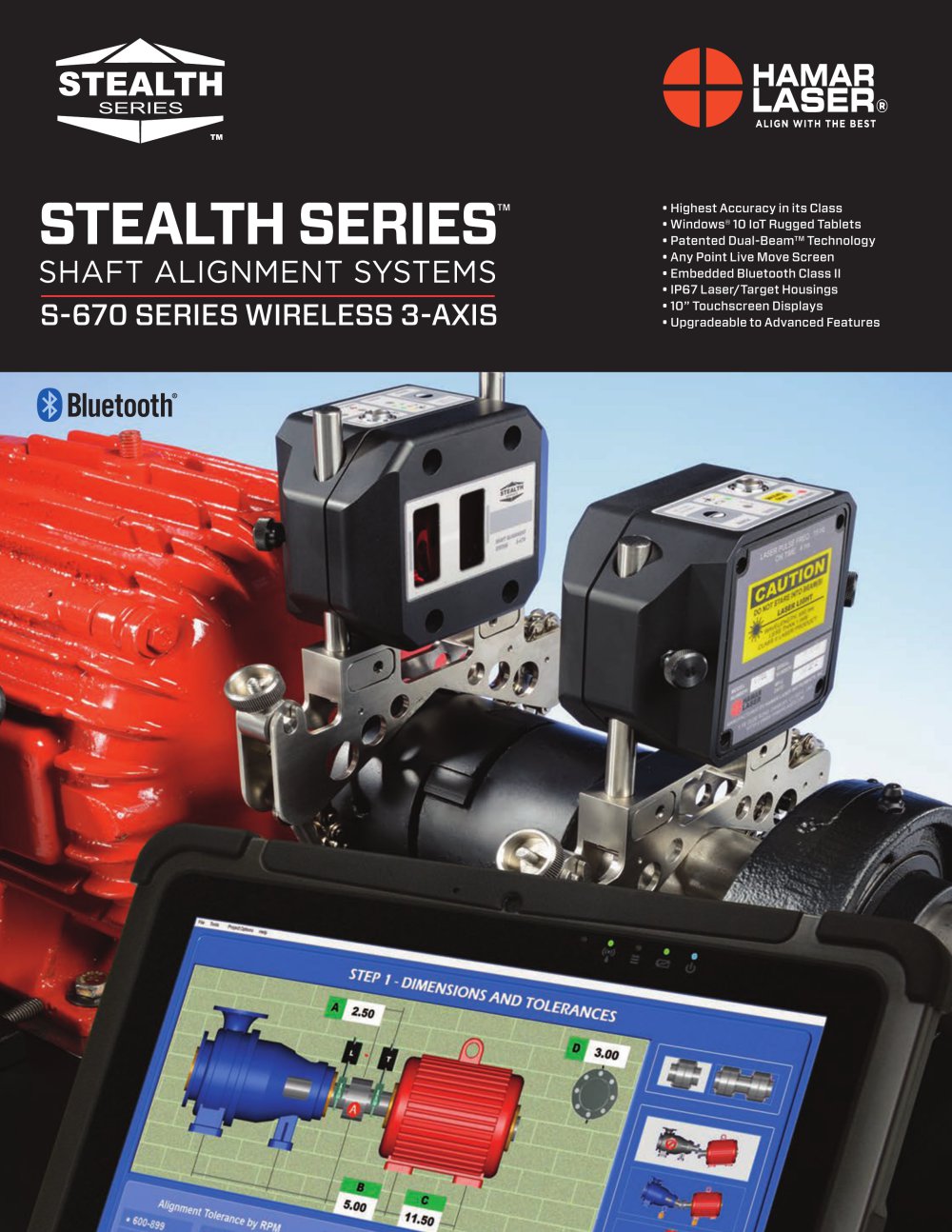

STEALTH SERIES SHAFT ALIGNMENT SYSTEMS S-670 SERIES WIRELESS 3-AXIS • Highest Accuracy in its Class • Windows® 10 IoT Rugged Tablets • Patented Dual-Beam™ Technology • Any Point Live Move Screen • Embedded Bluetooth Class II • IP67 Laser/Target Housings • 10” Touchscreen Displays • Upgradeable to Advanced Features

What sets the S-670 platform Dual-Beam™ detector technology A patented technology that allows the measurement of offset and angle simultaneously with only one PSD, increasing accuracy by 50%. Here’s how it works: 1. Beam #1 blinks on and hits PSD measuring the center offsets. 2. Beam #1 blinks off for ambient light correction. 3. Beam #2 blinks on and bounces off one prism, passes through a lens, bounces off a second prism and hits the PSD, measuring the angle. 4. Beam #2 blinks off for a second ambient light correction. apart from the competition? The world’s most advanced laser alignment...

Did you know that nearly 50% of the price of our competitor's lasers comes from the display box? In any alignment system, the hardware is only part the story. The other, more important part is the software. So when we designed the Stealth™ Couple6 software, we had the novice user in mind and created our Easy Guide™ approach to navigation that is so simple to use, it requires little to no training. Easy-to-follow, high quality, color screens lead you through each stage of the alignment, so you don't need to constantly refer to "cheat sheets” just to remember how to use it! Project Menu Start...

More advanced features Couple6 automatically saves alignment data with each click Display Options Auto Sweep™ simply the best data-taking method. Period. Start rotating the shafts and the built-in accelerometer detects the movement, automatically collecting hundreds of data points. Stop rotating the shafts and Couple6 starts calculating the misalignment. More data means more accurate alignment data and less rework. 5 data-taking modes Flip it™ Feature Stealth Series™ offers familiar Windows® OS display boxes: a rugged industrial IP65 10” tablet that runs Couple6 and other HLI software....

Laser/Target Unit Size 4.2” x 3.3” x 2.2” (107 mm x 84 mm x 55 mm) Housing Material Impact resistant plastic Detector Type & Size 1-axis super-linear PSD 30 mm (v) x 10 mm (h) provides 2 continuously updating alignment axes (1 alignment plane). Ambient Light Protection Yes via blinking-laser algorithm embedded in all Stealth targets Target Measurement Offset: 1.0 micron (.00004”) Target Measurement Offset: <0.30% Angular Sensor Range +/- 5° (+/- .085”/inch or 8.5 mm/100 mm) Laser Type 650 nm dual-beam laser with 0.5° fan <0.9mW Communication between Wireless...
