Read8 Multi-Function Alignment Software
2Pages

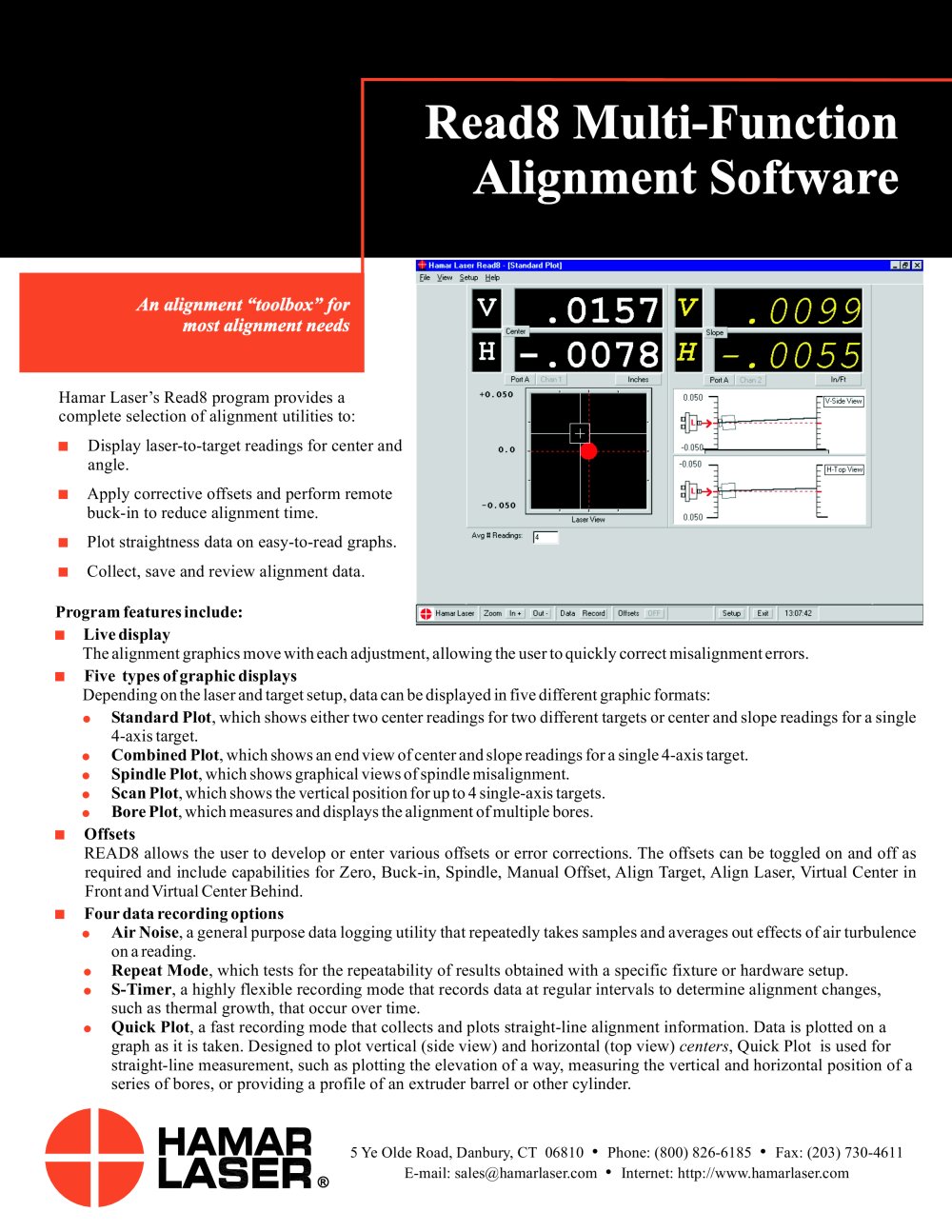

Hamar Lasers Read8 program provides a complete selection of alignment utilities to:Display laser-to-target readings for center and angle.Apply corrective offsets and perform remote buck-in to reduce alignment time. Plot straightness data on easy-to-read graphs. Collect, save and review alignment data. Program features include:Live display The alignment graphics move with each adjustment, allowing the user to quickly correct misalignment errors. Five types of graphic displays Depending on the laser and target setup, data can be displayed in five different graphic formats: Standard Plot Combined Plot , which shows either two center readings for two different targets or center and slope readings for a single 4-axis target. , which shows an end view of center and slope readings for a single 4-axis target. Spindle Plot , which shows graphical views of spindle misalignment. Scan Plot , which shows the vertical position for up to 4 single-axis targets. Bore Plot , which measures and displays the alignment of multiple bores. Offsets READ8 allows the user to develop or enter various offsets or error corrections. The offsets can be toggled on and off as required and include capabilities for Zero, Buck-in, Spindle, Manual Offset, Align Target, Align Laser, Virtual Center in Front and Virtual Center Behind. Four data recording optionsAir Noise Repeat Mode , a general purpose data logging utility that repeatedly takes samples and averages out effects of air turbulence on a reading. , which tests for the repeatability of results obtained with a specific fixture or hardware setup. S-Timer Quick Plot , a highly flexible recording mode that records data at regular intervals to determine alignment changes, such as thermal growth, that occur over time. , a fast recording mode that collects and plots straight-line alignment information. Data is plotted on a graph as it is taken. Designed to plot vertical (side view) and horizontal (top view) centers , Quick Plot is used for straight-line measurement, such as plotting the elevation of a way, measuring the vertical and horizontal position of a series of bores, or providing a profile of an extruder barrel or other cylinder. > 5 Ye Olde Road, Danbury, CT 06810 E-mail: sales@hamarlaser.com Phone: (800) 826-6185 FInternet: http://www.hamarlaser.com ax: (203) 730-4611 ծ

COMPREHENSIVE SETUP FIVE LIVE PLOT DISPLAYS Standard Plot provides two center readings for two different targets or center and slope readings for a single, 4-axis target. EIGHT OFFSET UTILITIES FOR CORRECTING MOUNTING ERRORS The READ8 Setup screen provides tabs corresponding to each feature of the program. All program settings, including company information, machine setup, units of measure, display options, data source, target setup and data recording methods are specified from this screen. The Setup screen is always accessible while running the program so that new options may be easily...
