R-1307 Digital Readouts
2Pages

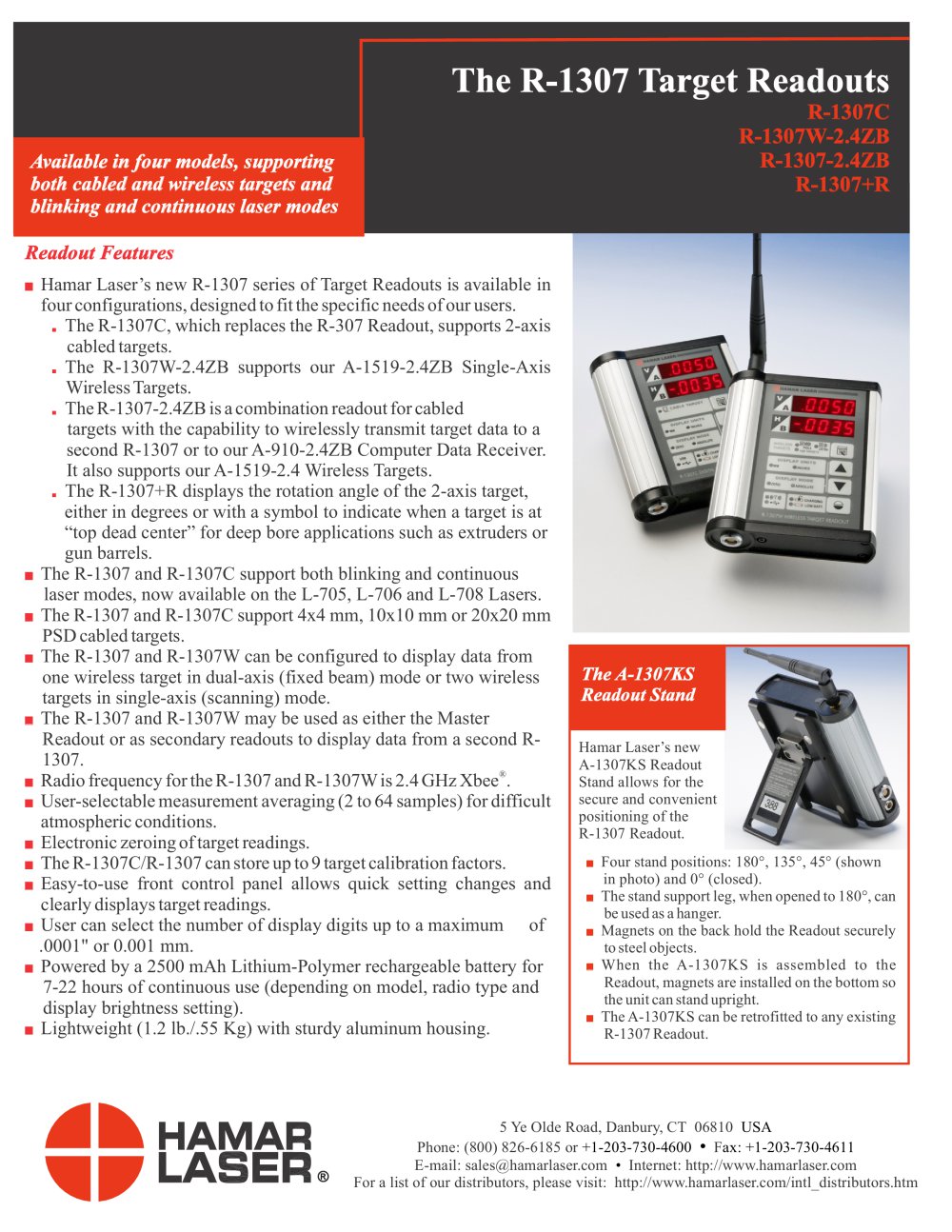

The R-1307 Target Readouts R-1307C R-1307W-2.4ZB Available in four models, supporting R-1307-2.4ZB ■ Four stand positions: 180°, 135°, 45° (shown in photo) and 0° (closed). ■ The stand support leg, when opened to 180°, can be used as a hanger. ■ Magnets on the back hold the Readout securely to steel objects. ■ When the A-1307KS is assembled to the Readout, magnets are installed on the bottom so the unit can stand upright. ■ The A-1307KS can be retrofitted to any existing R-1307 Readout. Readout Features ■ Hamar Laser’s new r-1307 series of Target Readouts is available in four configurations, designed to fit the specific needs of our users. . The R-1307C, which replaces the R-307 Readout, supports 2-axis cabled targets. . The R-1307W-2.4ZB supports our A-1519-2.4ZB Single-Axis Wireless Targets. . The R-1307-2.4ZB is a combination readout for cabled targets with the capability to wirelessly transmit target data to a second r-1307 or to our A-910-2.4ZB Computer Data Receiver. It also supports our A-1519-2.4 Wireless Targets. . The R-1307+R displays the rotation angle of the 2-axis target, either in degrees or with a symbol to indicate when a target is at “top dead center” for deep bore applications such as extruders or gun barrels. ■ The r-1307 and R-1307C support both blinking and continuous laser modes, now available on the L-705, L-706 and L-708 Lasers. ■ The r-1307 and R-1307C support 4x4 mm, 10x10 mm or 20x20 mm PSD cabled targets. ■ The r-1307 and R-1307W can be configured to display data from one wireless target in dual-axis (fixed beam) mode or two wireless targets in single-axis (scanning) mode. ■ The r-1307 and R-1307W may be used as either the Master Readout or as secondary readouts to display data from a second R-1307. ■ Radio frequency for the r-1307 and R-1307W is 2.4 GHz Xbee®. ■ User-selectable measurement averaging (2 to 64 samples) for difficult atmospheric conditions. ■ Electronic zeroing of target readings. ■ The R-1307C/R-1307 can store up to 9 target calibration factors. ■ Easy-to-use front control panel allows quick setting changes and clearly displays target readings. ■ User can select the number of display digits up to a maximum of .0001" or 0.001 mm. ■ Powered by a 2500 mAh Lithium-Polymer rechargeable battery for 7-22 hours of continuous use (depending on model, radio type and display brightness setting). ■ Lightweight (1.2 lb./.55 Kg) with sturdy aluminum housing. 5 Ye Olde Road, Danbury, CT 06810 USA Phone: (800) 826-6185 or +1-203-730-4600 • Fax: +1-203-730-4611 E-mail: sales@hamarlaser.com • Internet: http://www.hamarlaser.com For a list of our distributors, please visit: http://www.hamarlaser.com/

Radio Specifications Agency Certifications for the 900 MHZ Radio Transceiver FCC (United States of America) Certification Contains FCC ID: OUR-9XCITE The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. RF EXPOSURE WARNING: This equipment is approved only for mobile and base station transmitting devices, separation distances of (i) 20 centimeters or more for...
