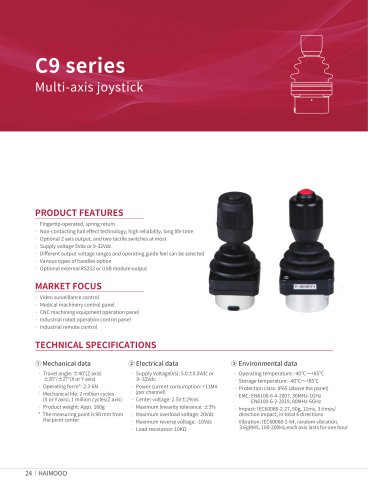

Product Features
The C9 series multi-axis joystick is designed for fingertip operation with a spring return mechanism. It utilizes non-contacting hall effect technology for high reliability and long lifespan. The joystick offers an optional Z axis output and can include up to two tactile switches. It supports supply voltages of 5Vdc or 9-32Vdc, with various output voltage ranges and handle options available. External RS232 or USB module outputs are optional.

Market Focus
This joystick is suitable for applications in video surveillance control, medical machinery control panels, CNC machining equipment operation panels, industrial robot operation control panels, and industrial remote controls.

Technical Specifications
Mechanical Data: The joystick has a travel angle of ±40° for the Z axis and ±20°/±27° for the X or Y axis. The operating force ranges from 2.3-6N, with a mechanical life of 2 million cycles for the X or Y axis and 1 million cycles for the Z axis. The product weighs approximately 160g.
Electrical Data: It operates with a supply voltage of 5.0±0.5Vdc or 9~32Vdc, with power current consumption under 11mA per channel. The center voltage is 2.5V±2%Vs, with a maximum linearity tolerance of ±3%. It can withstand a maximum overload voltage of 20Vdc and a maximum reverse voltage of -10Vdc, with a load resistance of 10KΩ.
Environmental Data: The operating and storage temperature range is -40℃ to +85℃. It has a protection class of IP65 above the panel and complies with EMC standards EN6100-6-4-2007 and EN6100-6-2-2019. It can withstand impacts as per IEC60068-2-27 and vibrations as per IEC60068-2-64.

Ordering Codes
The joystick can be customized with various operating modes, travel angles, output signals, handle options, and wiring configurations. Each option is coded for easy ordering, allowing for single or dual-axis operations, different handle types, and specific electrical outputs.

Installation
The joystick is designed for easy installation with a mounting diagram and panel cut-out dimensions provided. The panel thickness should not exceed 4mm.
