Tension Load Cells

Tension Load Cells

Product catalog summary

Overview: The document provides detailed information on HAEHNE's web tension measurement solutions using pillow block load cells. These sensors are designed for various industrial applications, including textile, paper, and aluminum processing.

Product Specifications:

Small Pillow Block Load Cells: Suitable for finishing web applications, with a measuring range of 100 N - 500 N, made of aluminum, and a protection class of IP 52.
Rugged Versatile Sensors: Designed for multifunctional applications, with a measuring range of 2 kN - 200 kN, made of stainless steel, and a protection class of IP 67.
Large Rigid Sensors: For demanding force measurement applications, with a measuring range of 160 N - 6300 N, made of nickel-plated or stainless steel, and a protection class ranging from IP 50 to IP 67.

Extended Options: HAEHNE offers customization options such as:

Temperature ranges from -70 to 250°C.
Enhanced protection for aggressive environments.
Higher accuracy with a combined error as low as 0.05%.
Adapted force ranges and dimensions for specific applications.
Solutions for vacuum and clean room conditions.
ATEX certification for potentially explosive atmospheres.

Special-Purpose Solutions: HAEHNE provides tailored solutions for unique customer requirements, emphasizing the benefit to the customer as a primary guideline.

Catalog excerpts

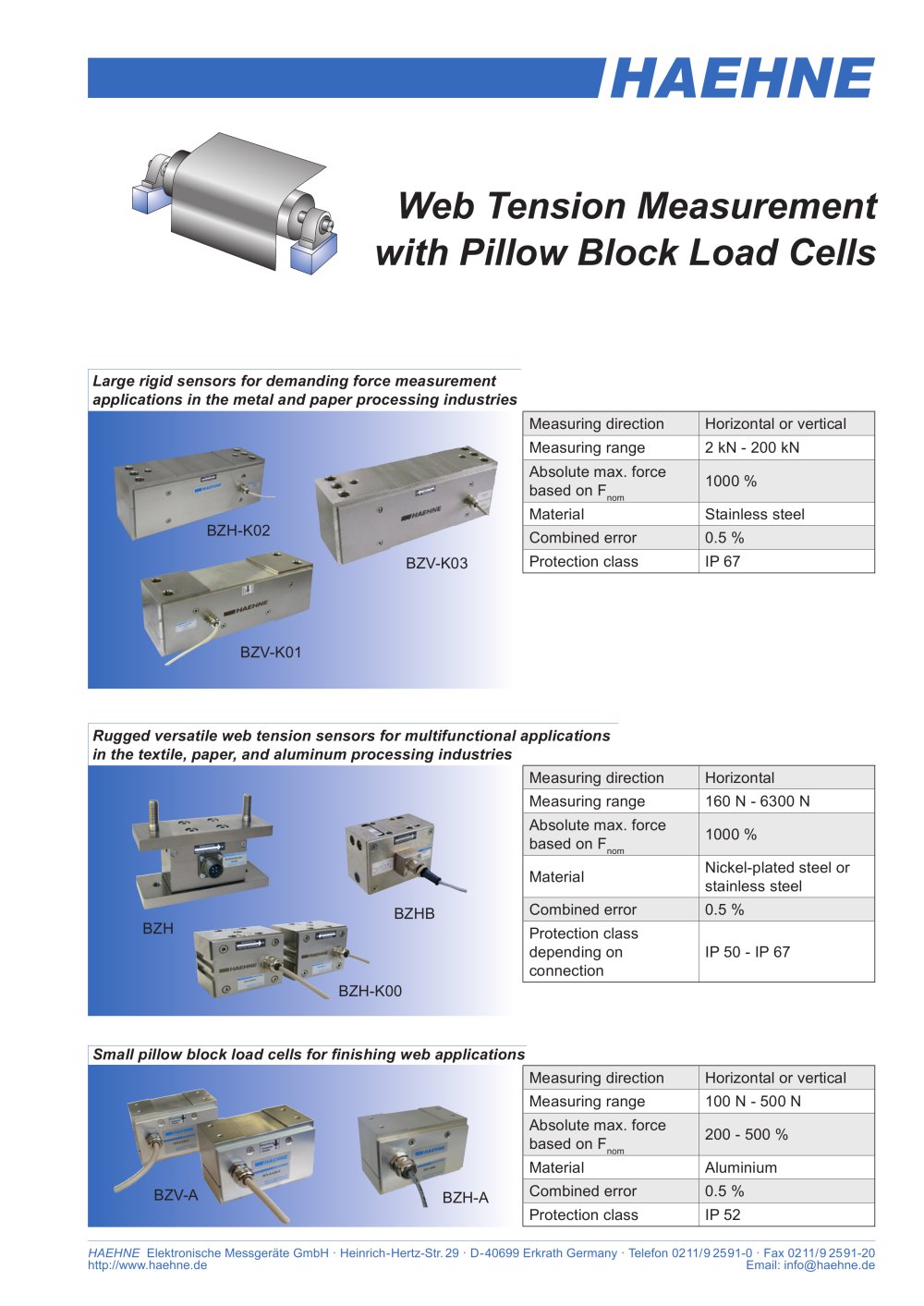

103443_ROBOX_piegh_ok.indd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:23.00pt "Arial", sans-serif; } .font4 { font:32.00pt "Microsoft Sans Serif", sans-serif; } HAEHNE Web Tension Measurement with Pillow Block Load Cells Rugged versatile web tension sensors for multifunctional applications in the textile, paper, and aluminum processing industries Measuring direction Horizontal Measuring range 160 N - 6300 N Absolute max. force based on F nom 1000 % Material Nickel-plated steel or stainless steel Combined error 0.5 % Protection class depending on connection IP 50 - IP 67 Small pillow block load cells for finishing web applications BZH-A Measuring direction Horizontal or vertical Measuring range 100 N- 500 N Absolute max. force based on Fnom 200 - 500 % Material Aluminium Combined error 0.5 % Protection class IP 52 HAEHNE Elektronische Messgerate GmbH Heinrich-Hertz-Str.29 Օ D-40699 Erkrath Germany Telefon 0211/92591-0 Օ Fax 0211/92591-20 http://www.haehne.de Email: [email protected]
