HAEHNE
Measuring Rolls

Measuring Rolls

Product catalog summary

Overview: The document provides technical specifications and options for HAEHNE's web tension measurement rolls, which are equipped with integrated force sensors for efficient and space-saving installation.

Specifications:

MES: Complete measurement roll with integrated force sensors. Measuring range: 100 - 800 N, combined error: 0.5%, material: Aluminium, length: 80 - 300 cm, roll diameter: 100 - 160 mm.
MUW: Measurement roll with mounted web tension sensors and bearing blocks. Measuring range: 0.2 - 30 kN, combined error: 0.5%, material options: Aluminium, steel, stainless steel, customizable length and roll diameter.
MEZ: Measurement roll with fitted web tension sensors for quick and cost-effective mounting. Measuring range: 20 - 4000 N, combined error: 0.5%, standard material: Aluminium, customizable length, roll diameter from 40 mm.
MWF: Overhung measurement roll. Measuring range: 50 - 500 N, combined error: 0.5%, customizable material, length: 10 - 25 cm, roll diameter: 80 mm.

Special Solutions: HAEHNE offers sensors for mounting into roll shells for special requirements, such as large roll diameters, segmented rolls for flatness measurement, and nip force measurement in winders.

Additional Options:

Extended temperature ranges from -70 to +250°C (-95 to +480°F).
Enhanced protection class IP 67 for aggressive environments.
Solutions for vacuum and clean room conditions.
ATEX certified for potentially explosive atmospheres (II2G Ex ia II C T4).

Note: Technical modifications are reserved.

Catalog excerpts

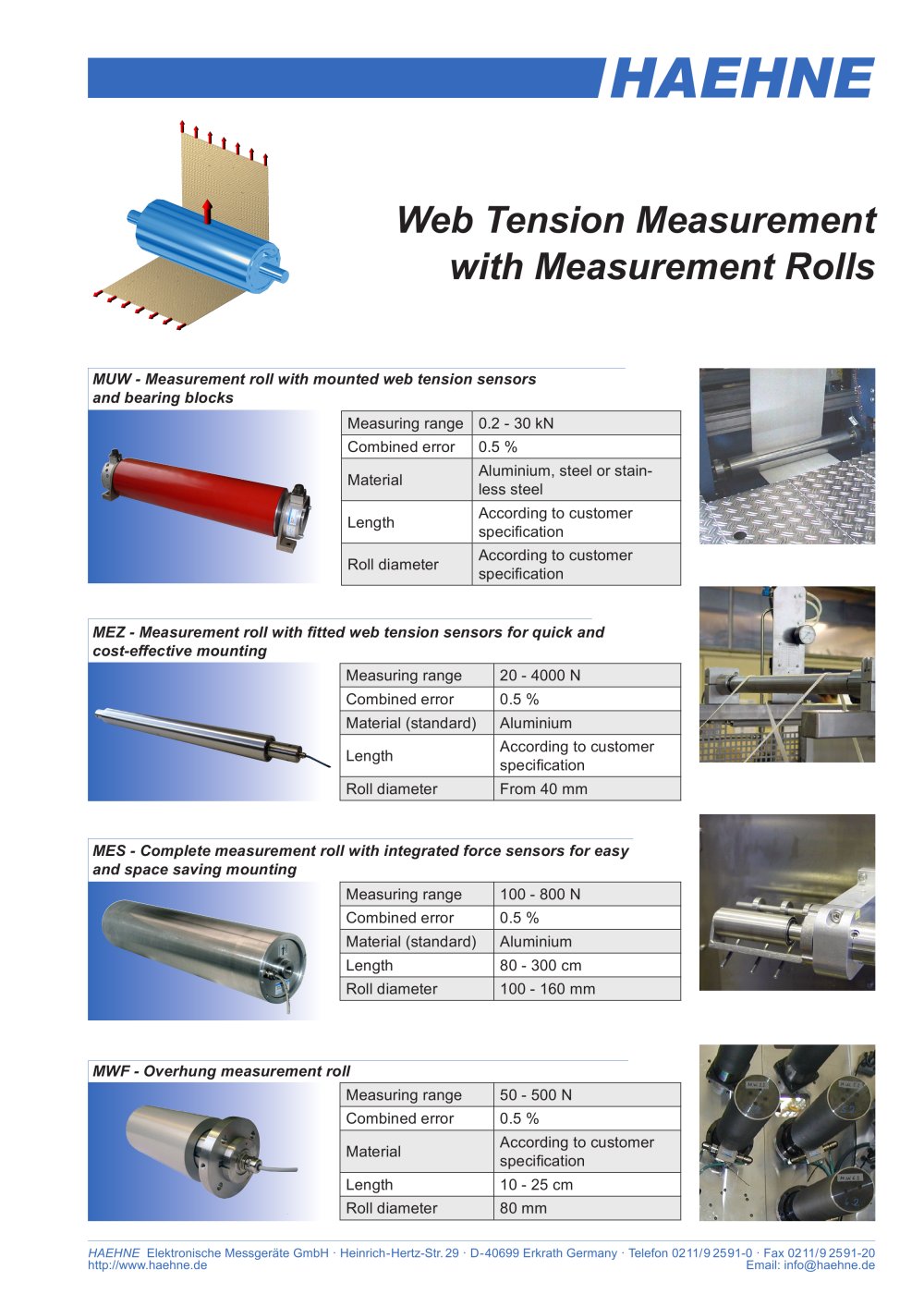

103443_ROBOX_piegh_ok.indd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:23.00pt "Arial", sans-serif; } .font3 { font:32.00pt "Microsoft Sans Serif", sans-serif; } HAEHNE Web Tension Measurement with Measurement Rolls MUW - Measurement roll with mounted web tension sensors and bearing blocks Measuring range 0.2 - 30 kN Combined error 0.5 % Material Aluminium, steel or stain-less steel Length According to customer spcification Roll diameter According to customer spcification MEZ - Measurement roll with fitted web tension sensors for quick and cost-effective mounting Measuring range 20 - 4000 N Combined error 0.5 % Material (standard) Aluminium Length According to customer sp驩cification Roll diameter From 40 mm MES - Complete measurement roll with integrated force sensors for easy and space saving mounting Measuring range 100 - 800 N Combined error 0.5 % Material (standard) Aluminium Length 80 - 300 cm Roll diameter 100 - 160 mm MWF - Overhung measurement roll Measuring range 50 - 500 N Combined error 0.5 % Material According to customer spcification Length 10 - 25 cm Roll diameter 80 mm HAEHNE Elektronische Messgerate GmbH Heinrich-Hertz-Str.29 镕 D-40699 Erkrath Germany Telefon 0211/9 2591-0 Օ Fax 0211/9 2591-20 http://www.haehne.de Email: [email protected]

Open the catalog to page 1

103443_ROBOX_piegh_ok.indd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:32.00pt "Microsoft Sans Serif", sans-serif; } HAEHNE Comptence for Adaption and Spcial Solutions Sensors for build-in roll mounting, also for flatness measurement rolls For sp驩cial requirements, especially for large roll diameters, HAEHNE can supply sensors for mounting into the roll shell. This makes it possible...

Open the catalog to page 2
