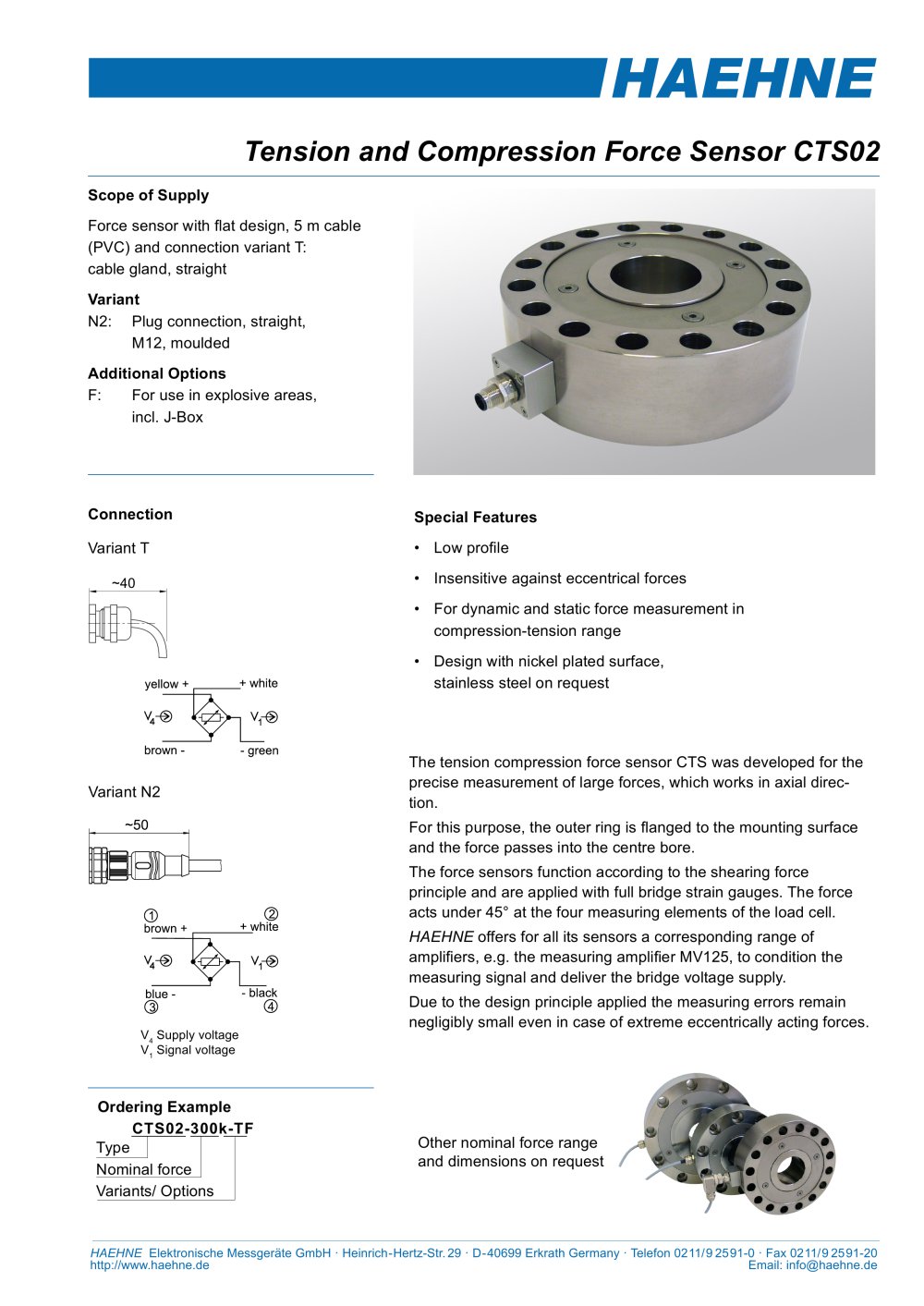

Tension and Compression Force Sensor CTS02 Scope of Supply Force sensor with flat design, 5 m cable (PVC) and connection variant T: cable gland, straight Variant N2: Plug connection, straight, M12, moulded Additional Options F: For use in explosive areas, incl. J-Box Special Features • Low profile • Insensitive against eccentrical forces • For dynamic and static force measurement in compression-tension range • Design with nickel plated surface, stainless steel on request The tension compression force sensor CTS was developed for the precise measurement of large forces, which works in axial direction. For this purpose, the outer ring is flanged to the mounting surface and the force passes into the centre bore. The force sensors function according to the shearing force principle and are applied with full bridge strain gauges. The force acts under 45° at the four measuring elements of the load cell. HAEHNE offers for all its sensors a corresponding range of amplifiers, e.g. the measuring amplifier MV125, to condition the measuring signal and deliver the bridge voltage supply. V4 Supply voltage V1 Signal voltage Ordering Example CTS02-300k-TF Type Nominal force Variants/ Options Due to the design principle applied the measuring errors remain negligibly small even in case of extreme eccentrically acting forces. Other nominal force range and dimensions on request HAEHNE Elektronische Messgeräte GmbH · Heinrich-Hertz-Str. 29 · D-40699 Erkrath Germany · Telefon 0211/9 25 91-0 · Fax 0211/9 25 91-20 http://www.haehne.de Em
Open the catalog to page 1
Technical Data HAEHNE Elektronische Messgerate GmbH ■ Heinrich-Hertz-Str.29 ■ D-40699 Erkrath Germany ■ Telefon 0211/92591-0 ■ Fax 0211/92591-20 http://www.haehne.de Email: info@haehne.de Technical modification reserved
