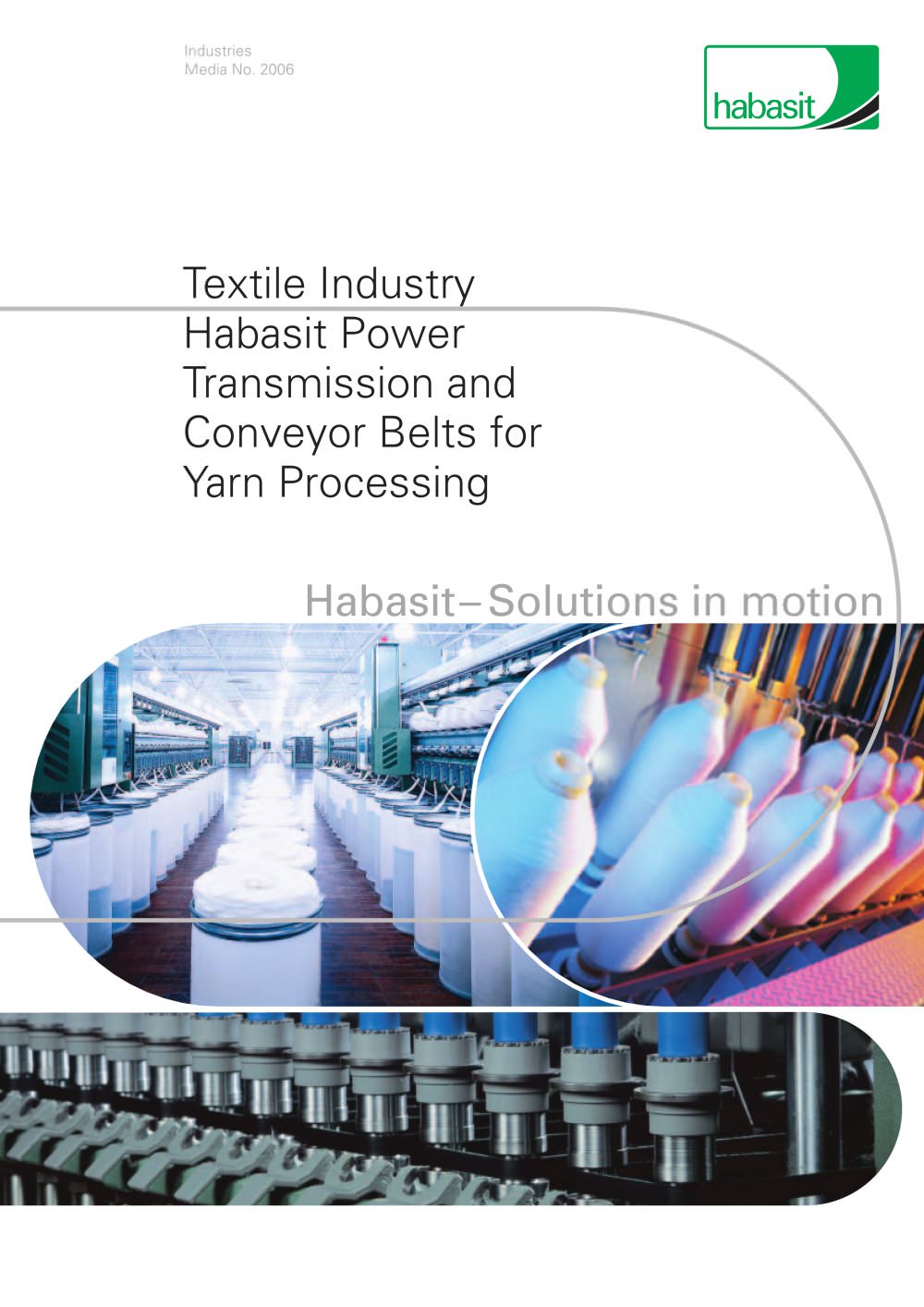

IndustriesMedia No. 2006 Textile IndustryHabasit Power Transmission and Conveyor Belts for Yarn Processing HabasitSolutions in motion >

Open the catalog to page 1

Focus on yarn processing More than 50 years of experience Habasit is the leading belt manufacturer world wide offering a complete product range for all applications in the short and long staple as well as in the man made fibre industry. From bale opening to winding and twisting. With a comprehensive global network, Habasit is able to respond to any request that you may have with nothing less than an outstanding belting solution of highest quality, tailored to your specific needs. > 2 Innovation is a key word at Habasit Yarn manufacturing requires a wide range of power transmission belts,...

Open the catalog to page 2

3 Polyester power transmission beltsTC-tangential- and flat belts combine the benefits of Polyamide and Aramid belts such as highreliability, long service life with excellent damping properties. They are suitable for high speed machines and can cope very well with small pulley diameters and reversed bendings. Aramid power transmission beltsTF-tangential- and flat belts are the best solution for compact driving configurations. The TFbelts provide maximum power transmission efficiency and minimum spindle rpm deviation due to the high modulus of elasticity of the Aramid traction fabric....

Open the catalog to page 3

Process overview: > 4 Yarn manufacturing/blow room > Bale-opener Automatic bale-opener Driving belt Feeder beltSpiked lattice Remark: The drawings show schematic examples of selected applications/processes. The drawings dont lay claim tocompleteness. The belt recommendations (use/application/layout) can only be considered as a general hint. Due to the complexity of the various processes and technical requirements and the decisive external influences (e.g. nature or property of transported goods, process speed, steps of treatment/handling, environment or process temperature, humidity,...

Open the catalog to page 4

Cleaning anddedusting unit Card Blending opener Cross apron Spiked lattice Feeder belt >

Open the catalog to page 5

Process overview: > 6 Ring spinning for carded yarn > Drawing frame Flyer (roving frame)Cone drive Ring spinning frame Drawing system driving belt size="-2">

Open the catalog to page 6

Winder Tangential belt driveGroup/section driveFour spindle drive (two jockey pulleys) Four spindle drive (one jockey pulley) >

Open the catalog to page 7

Process overview: > 8 Ring spinning for combed yarn > Drawing frame FlyerComberRibbon lap machine Ring spinning frame Drawing system driving belt size="-2">

Open the catalog to page 8

Remark: The drawings show schematic examples of selected applications/processes. The drawings dont lay claim tocompleteness. The belt recommendations (use/application/layout) can only be considered as a general hint. Due to the complexity of the various processes and technical requirements and the decisive external influences (e.g. nature or property of transported goods, process speed, steps of treatment/handling, environment or process temperature, humidity, chemicals, additives, ingredients, recipes, etc.) there is a large variety of solutions possible. >

Open the catalog to page 9

OE rotor spinning Trash belt Rotor belt Bobbinconveyor belt >

Open the catalog to page 10

OE driveCombing roller belt Conveyor belt Combing roller belt Main drive >

Open the catalog to page 11

12 Habasit has developed an extensive variety of different power transmission belts that allow the customer to choose the most suitable belt for their specific application requirements. Power Transmission Belts The right choice TC Polyester (PET) TF Aramid (AR) S Polyamide (PA) 3 2 1 3 2 1 3 2 1 (enlarged)(enlarged)(enlarged) > 1 Light green, low aging and abrasion resistant NBR rubberHigh flexible polyester tractionfabricBlack, antistatic, low agingNBR rubberGreen, low aging and abrasionresistant NBR rubberHigh flexible Aramid tractionfabric with high modulus of elasticityBlack,...

Open the catalog to page 12

13 The right choice Habasit has developed an extensive variety of spindle tapes that allow the customer to choose the most suitable tape for their specific application requirements. Spindle Tapes W Polyester (PET) TS/HS Polyamide (PA) > 1 1 2 2 (enlarged)(enlarged) > 1 Green impregnated polyester traction fabric (whirl side)Black, antistatic, thermoplastic friction cover (driving pulley side) > 1 Yellow polyamide traction fabric (whirl side)Green NBR rubber frictioncover (driving pulley side) > 2 2 Picture with W-8/W-16 four spindle Picture with W-8/W-16 four spindle drive with two jockey...

Open the catalog to page 13

Remarks All data are approximate values under standard climatic conditions: 23C/ 73аF , 50% relativehumidity (DIN 50005/ISO 554), and are based on the Habasit Master Joining Method. = applicable = conditionally applicable= not applicable Legend Armid= AramideCEL= Cellulose CO= Cotton EPDM= Ethylenepropyleneterpolymer (also called EPT) Gro.= Groove (longitudinal groove structure) Hamid= Habasit thermoplastic compound H.= Hard Impr. fabric= Impregnated fabric Longitudin.= Longitudinal (longitudinal groove structure) Mat= Mat (dull finish) Medium-adh.= Medium-adhesive NA= Not available NBR=...

Open the catalog to page 18

Product key data overview You will find the key data for most Habasit products on the Habasit Websites: > Select an affiliated companye.g. United KingdomProductsՕe.g. Machine TapesProduct DataOverview Detailed technical data for each product/belt type With one more click on the respective belt type, you will obtain a technical data overview, showing details such as:ՕProduct designation/featuresProduct design/built-upՕProduct characteristicsTechnical data etc. >

Open the catalog to page 19

Polyester TC power transmission belts (PET) Habasit developed this unique product range as a result of very close contacts to the textile industry, partnerships with leading machine manufacturers worldwide and ongoing research. Habasit has gained much experience with polyester products in different industries and applications over the years. The result is a product range with a perfect price-to-value ratio. Features Benefits Very flexible belt Longest service life Outstanding reliability Suitable for small pulleydiameters > Service lifeHabasitCompetitor Օ Reduced energyconsumption Maximum...
