Habasit Confectionery Industry (2039) - 1

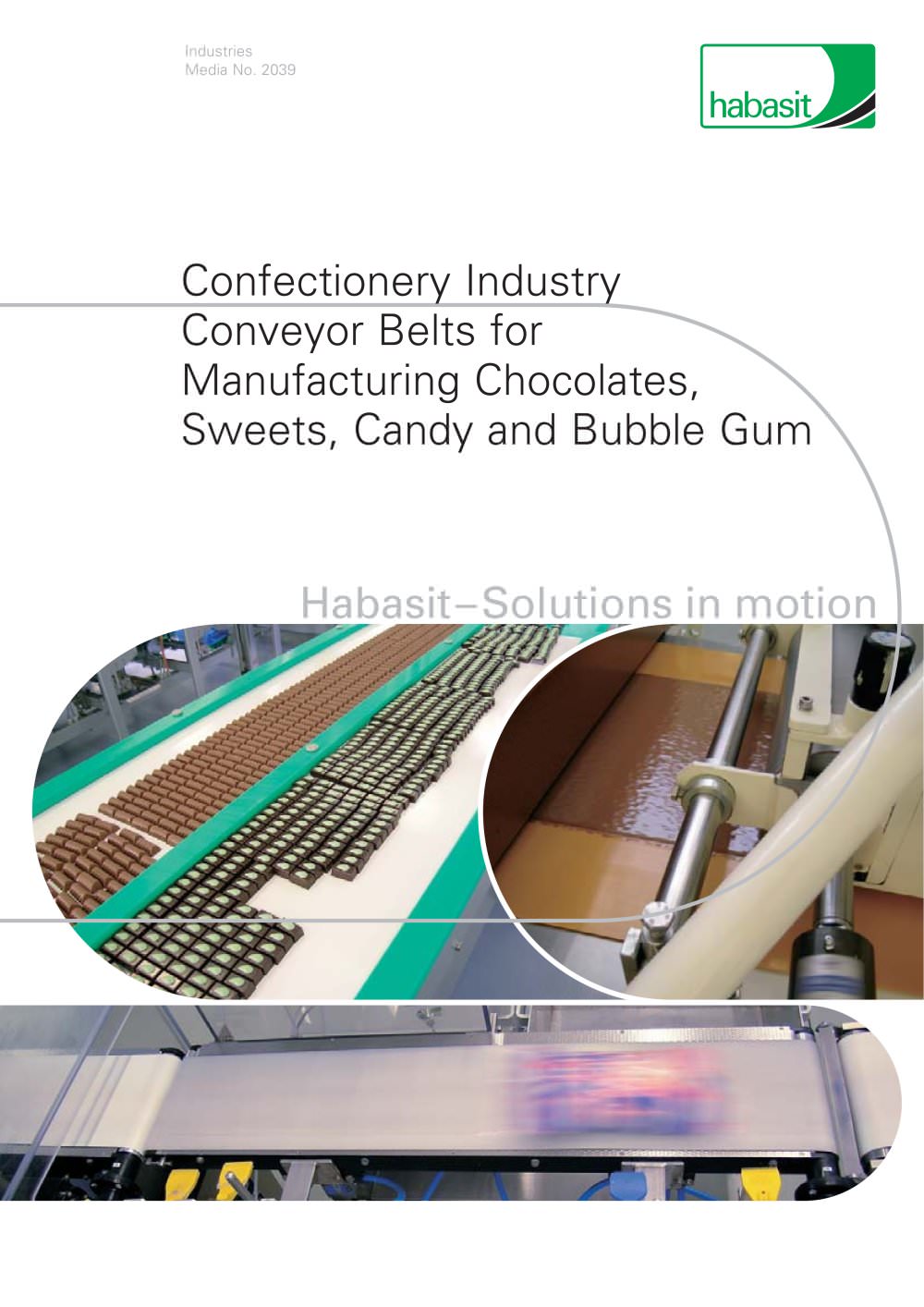

IndustriesMedia No. 2039 Confectionery IndustryConveyor Belts for Manufacturing Chocolates, Sweets, Candy and Bubble Gum HabasitSolutions in motion >

Open the catalog to page 1

Habasit Confectionery Industry (2039) - 2

2 Introduction 3 Process / Application Overview (Schematic) Chocolate Bar Manufacturing, Distribution / Feed-in, 4 Ֆ 5 Wrapping and Packaging Moulded Chocolate Manufacturing 5 Օ Chewing Gum Candy Processing 6 ֖ 7 Variety of Product Ranges 8 Variety of Belt Surfaces / Styles 9 Confectionery Industry Application Table / Belt Selection 10 11b Guide and Technical Key Data Features and Benefi ts ֕ TPU Coated Belts 12 TPO / Habilene > ծ Coated Belts 13 Plastic Modular Belts 14 Other Coating Materials Օ Silicone Coated Belts 15 Antimicrobial TPU Belts 16 Successful Belt Solutions 17 Services 18The...

Open the catalog to page 2

Habasit Confectionery Industry (2039) - 3

The variety of belts 3 Our range contains unique products like Cleanline Focus on confectionery industry More than 60 years of experience The confectionery industry is divided into various segments, such as the production of chocolate, sweets, candy (e.g. jelly babies) and bubble gum. Habasit offers a complete range of conveyor belts for chocolate confectionery and candy processing. Habasit products demonstrate excellent release properties even for very sticky goods, reliable positioning of products on the belt, high longitudinal fl exibility to handle small pulley diameters, superior...

Open the catalog to page 3

Habasit Confectionery Industry (2039) - 4

Chocolate bar manufacturing Feeding belt Forming press Drum cooler Cooler Forming press Strang slitter Strang fanner Cross cutter Pre-bottomer Cooling belt Spreader belts Transfer belt Distribution / feed-in, wrapping and packaging Packaging unit and subsequent processes depending on kind of wrapping and packaging In-line feeder Օ Accumulation Flow pack wrapper Օ Robotic carousel Deposit belt Transfer belt Transfer / gapping belt Cardboard box / tray loading Օ Etc. >

Open the catalog to page 4

Habasit Confectionery Industry (2039) - 5

Cooling tunnel Cooling tunnel Coater / enrober Transfer belt Cooling belt Cooling belt > Metering Vibration Metal detector Demoulding Metering / fi lling Transfer belt Process variant: Hollow / fi lled chocolate items Vibration / fl ipping Spinning / scraping Pre-cooling / edge scraping Depositing fi lling Filling Cooling /fi lling / vibration Heating of edges Bottoming Cooling section >

Open the catalog to page 5

Habasit Confectionery Industry (2039) - 6

Chewing gum processing Z-conveyor / inclined conveyor Ingredients / raw materials ExtruderOption: Pre-extruder (coated chewing gum) Stacking unit Forming unit (rolling and scoring for candy coated chewing gum) Option / variation: Vibrating Cooling tunnel Transfer / line / cooling belt Candy processing (hard and soft) Mixer Coating unit Cooling tunnel Elevator Transfer / line belt with corrugated side wallsOptions: with profi les or modular belt with fl ights and side guards Modular belt with fl ights and side guards (Option: scoops) >

Open the catalog to page 6

Habasit Confectionery Industry (2039) - 7

7 Tumbling drum Polishing pan Coating pan Wrapping machine Transfer / line belt with corrugated side wallsOptions: with profi les or modular belt with fl ights and side guards Packaging unit (Form Fill ֖ Seal unit) Check-weigher unit > Remark: The drawings are schematic examples of selected applications / processes. The drawings do not claim completeness. The belt recommendations (use / application / layout) are only general suggestions. Due to the complexity of various processes, technical requirements and decisive external infl uences (e.g. nature or property of transported goods, process...

Open the catalog to page 7

Habasit Confectionery Industry (2039) - 8

8 The right choice Habasit has developed an extensive variety of solutions that allow customers to choose the best product for their specific application. Habasit is the only belt supplier to manufacture and offer the full package of fabric based and plastic modular belts. Belting products for the confectionery industry Design / material variations > TPU coated belts PP (Polypropylene) TPU coated frayless and non-fray belts Polyurethane round belts PE ( Polyethylene) > TPU coated customized embossed belts Ε Polycord POM/AC Habicord (Polyoxymethylene / Acetal) Օ Habiblue TPO coated belts...

Open the catalog to page 8

Habasit Confectionery Industry (2039) - 9

9 Belt surface and function To fulfill the requirements for a specific application or a defined process, the belt surface or the material inherent properties play a key role. Following a selection of various surfaces, styles and properties.Illustrations: Product view from top (running direction from left to right). > Blank smooth (adhesive, medium-adhesive or non-adhesive) Flat Top 0.5 Flush Grid 0.5ӓ Diagonal rhomboid pattern / structure brown (adhesive) Square embossing / structure (adhesive) Diagonal rhomboid positive pattern / structure HarlequinӔ (adhesive) Flush Grid 0.5Micropitch...

Open the catalog to page 9

Habasit Confectionery Industry (2039) - 13

Remarks All data are approximate values under standard climatic conditions: 23C / 73аF , 50% relative humidity (DIN 50005/ISO 554), and are based on the Habasit Master Joining Method. 11b Legend Blk/smth = Blank / smooth Dia rhom= Diagonal rhomboid positive pattern / structure Harlequin= Harlequin pattern / structure Med-adh= Medium-adhesive Non-adh= Non-adhesive Squ-emb= Square embossing Sup-adh = Super-adhesiveText. struc.=Fine textile structure TPO= Thermoplastic Polyolefi ne TPU= Thermoplastic Polyurethane > = applicable Additional information regarding products, use, application...

Open the catalog to page 13

Habasit Confectionery Industry (2039) - 14

TPU food belts combine many outstanding features that are supporting reliable and hygienic production processes. TPU coated belts for high demanding applications, e.g. small pulleys and narrow transfers, wide temperature range, applications which ask for cut and abrasion resistant surfaces. Features Benefits Longitudinal flexibility Շ Belts can cope with small pulley diameters, compact design Smooth and trouble-free product transfer Ǉ Low energy consumption Calendered TPU belt surface Շ Closed, most homogeneous surface Reduced soiling of belt surface Ǉ Good release properties Easy to clean...

Open the catalog to page 14

Habasit Confectionery Industry (2039) - 15

Habilene > ή coating is a high-tech food thermoplastic polyolefin specially modified by Habasit. Habilene > is a sophisticated belt coating for easy release of sticky goods and excellent chemical resistance. Habilene > ή coated belts are called Cleanline > , a name linked with a clean belt environment, hygienic conveying, efficiency and reliability. Features Benefits Ε Absolutely blank, smooth, closed and non-porous belt surface Reduced soiling of belt surface Ǉ Outstanding release properties Easy and efficient cleaning ǖ cost/time savings Calendered surface coating Շ HACCP support > (HACCP...
