Habasit
Habasit Compressible Printing Blankets (4268)

Habasit Compressible Printing Blankets (4268)

Product catalog summary

Introduction
The document introduces the new HabaFLOW® ENU-20ELBI compressible printing blanket by Habasit, designed to enhance printing quality through a modified surface layer and redesigned intermediate layer, providing a 'cushion effect'.

Key Features

Excellent printing results on both fine and coarse fabrics.
Even and intensive printing impressions, especially on large dark color areas.
Perfect repeat accuracy.
High resistance to chemicals, temperature, and mechanical stress.
Quick and easy belt joining and installation.

Technical Specifications

Thickness: 2.6 mm (0.1 in).
Minimum pulley diameter with counter flexion: 100 mm (4 in).
Tensile force for 1% elongation: 18 N/mm (103 lbs./in).
Seamless manufacturing width: 2400 mm (94 in).

Product Construction

Conveying Side Material: Thermoplastic polyurethane (TPU).
Surface: Smooth and non-adhesive.
Traction Layer Material: Polyester (PET) fabric.
Running Side/Pulley Side Material: Polyester (PET) fabric.

Product Liability and Application Considerations
The document emphasizes that the selection and application of Habasit products should be guided by authorized sales specialists. The customer is responsible for ensuring product suitability and safety. The data provided are based on laboratory tests and may not reflect industrial performance. Habasit disclaims liability for product suitability and process outcomes.

Conclusion
The HabaFLOW® ENU-20ELBI offers significant improvements in printing quality due to its innovative design, making it suitable for various printing applications while ensuring ease of use and durability.

Catalog excerpts

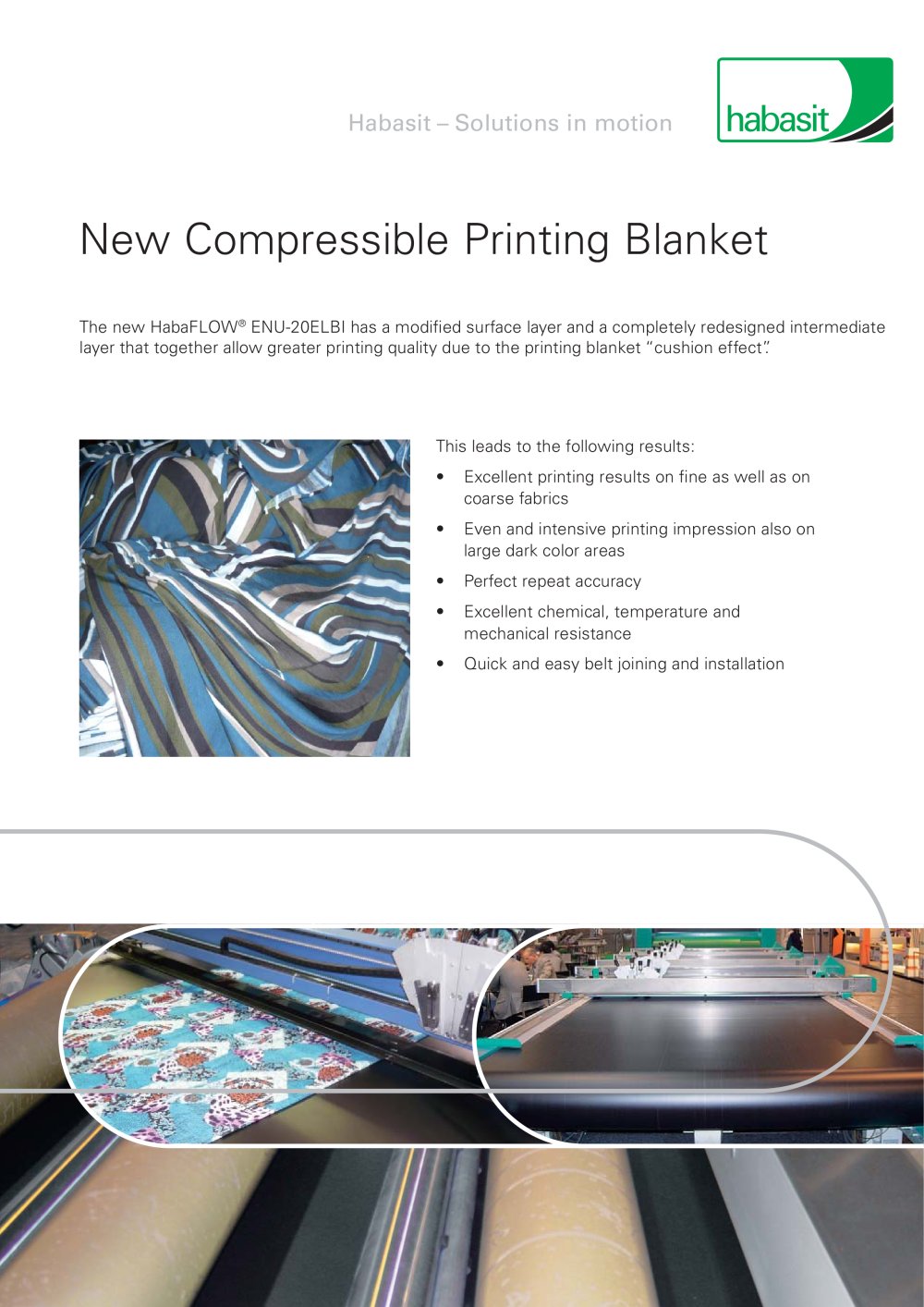

Habasit Compressible Printing Blankets (4268)-1

Habasit – Solutions in motion New Compressible Printing Blanket The new HabaFLOW® ENU-20ELBI has a modifi ed surface layer and a completely redesigned intermediate layer that together allow greater printing quality due to the printing blanket “cushion effect”. This leads to the following results: • Excellent printing results on fi ne as well as on coarse fabrics • Even and intensive printing impression also on large dark color areas • Perfect repeat accuracy • Excellent chemical, temperature and mechanical resistance • Quick and easy belt joining and installation

Open the catalog to page 1

Habasit Compressible Printing Blankets (4268)-2

Compressible Printing Blanket HabaFLOW® ENU-20ELBI Headquarters Habasit AG CH-4153 Reinach-Basel Phone +41 61 715 15 15 Fax +41 61 715 15 55 E-mail [email protected] www.habasit.com Copyright Habasit AG Subject to alterations Printed in Switzerland Publication data: 4268FLY.CVB-en0510HQR Habasit – We are where you are Product liability, application considerations If the proper selection and application of Habasit products are not recommended by an authorized Habasit sales specialist, the selection and application of Habasit products, including the related area of product safety, are the responsibility...

Open the catalog to page 2
