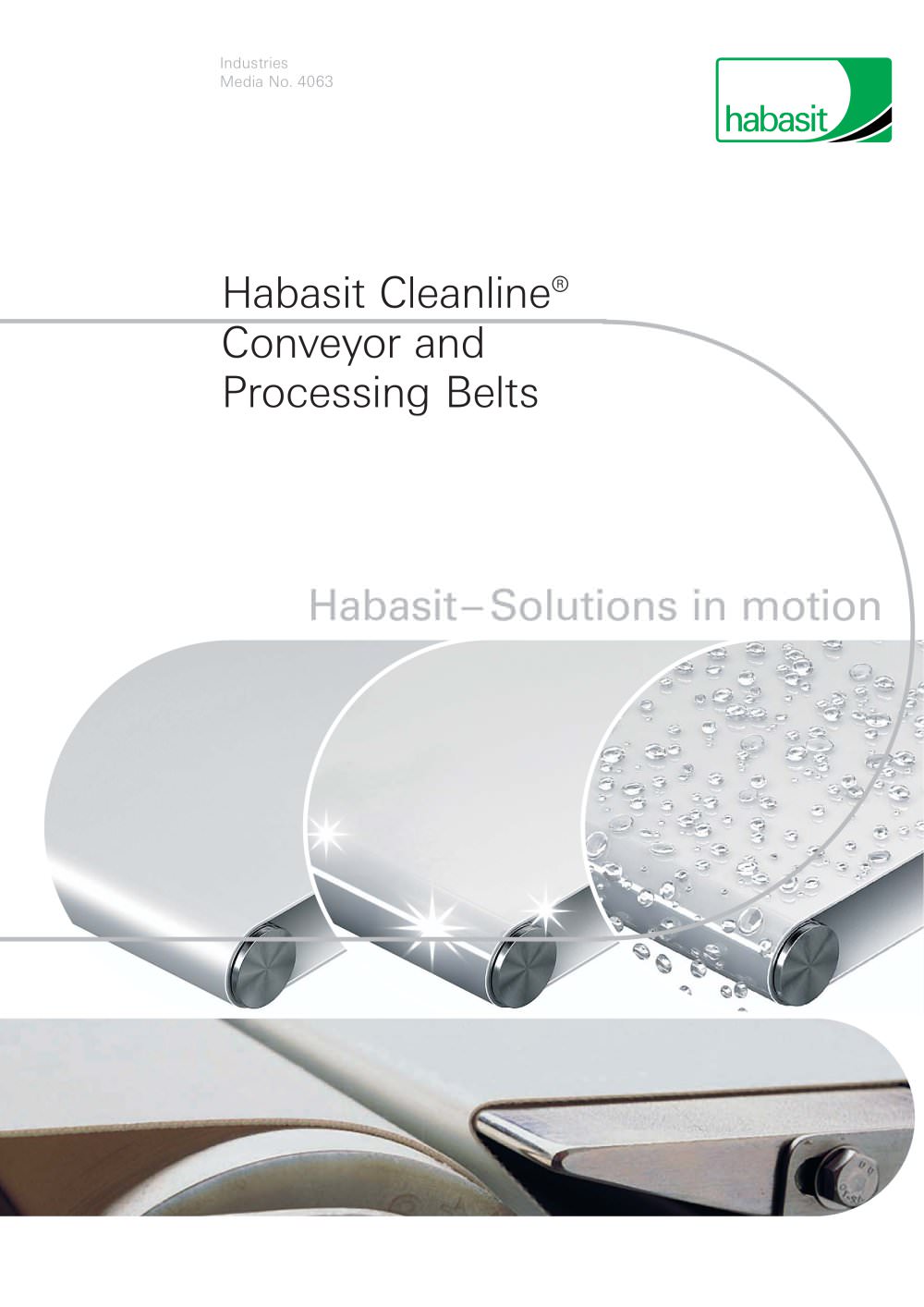

ProductsMedia No. 4063 Habasit Cleanline > Conveyor andProcessing Belts HabasitΖSolutions in motion >

Open the catalog to page 1

5Cleanline > belts are used in countless manufacturing processes, following are some typical applications. Inspection / controlAccumulation / metering / singulation > 456 General conveying and processing (moulding, dough handling, folding, dressing, trimming, slicing, grading, portioning, reworking, positioning etc.) Metal detection Check-Weighing Cooling, freezing, cold discharge Incline / decline Powerturn / curve TransferInfeed / depositor / outfeed / take-offPackaging >

Open the catalog to page 7

6 Belt surface and function To fulfill the requirements for a specific application process or a defined function the belt surface or the material inherent properties play a key role. See following overview of various surfaces, styles and properties.Illustrations: Product view from top and birdΒs view (running direction from left to right). Blank, smooth surface Available properties: Adhesive or non-adhesive Belt types: CAB-5E, CAB-8E, CAB-6EB, CNB-5E, CNB-5EQ, CNB-6EB (also available with blue coating), CNB-8E Reverse side (running/pulley side) depending on belt type: Impregnated fabric,...

Open the catalog to page 8

7 Modified polyolefine andhigh-tech coating technology Habilene > ή is a polyolefine specifically modified by Habasit. It is produced in a sophisticated synthesis process and features highest quality coating properties. Illustration (left): Habilene > coatingprovides an absolutely smooth, closed and non-porous belt surface. Illustration (right): HabasitΒs high-tech calendering unit. Polyolefine characteristics Polyolefine is the generic term for a family of polymers derived from a particular group of base chemicals known as olefins. The polyolefine family includes e.g. polypropylene and...

Open the catalog to page 9

8 Habilene Food suitability and chemicalproperties Due to a polymer structure with very little extractables, the material Habilene > ή consists of a homogeneous molecule structure which prevents extraction by chemicals. The Habilene > is suitable for conveying and processing all kinds of foodstuff and is highly chemical resistant. Habilene > ή material stands for purity. No softener/plasticizer, no additives, no monomers/ low-molecular parts. Other thermoplastic polyolefines Short molecules can be easily extracted.= easily extractable > is fully approved forfood contact respectively...

Open the catalog to page 10

9 Habilene Comparison with other polyolefine compounds The specific homogeneous structure of Habilene > ή No additives that can be extractedՕHomogeneous molecular structure > offers improved properties as compared to other polyolefines. Other thermoplastic polyolefins ΕAdditives can be extractedPoor chemical resistance of soft partsՕDifficult to process and joinPoor mechanical propertiesLegend:1additives, 2 hard, 3 soft > 2 1 3 Coating material Habilene > PVC TPU* Silicone Release properties Nosebar suitability Abrasion resistance Chemical resistance Hydrolysis resistance (Habilene > ή is...

Open the catalog to page 11

CAB-5ECAB-8E Bakery Biscuit Chocolate ֖ ConfectioneryMeat Poultry ֖ Fish DairyMiscellaneous applications / processesWood processingLacqueringHigh frequency dryerLive roller conveyorProduct construction / designProduct characteristicsTechnical key data Joining system Dough divider / feeder belt Moulder / rounder Dough conveyor (sheeter / extruder / curling) Gauge roll / calibrationCross roller lineSprinkler / depositorTransfer conveyor Folding station Cooling line Check weighing Packaging line Cooling belt Powerturn / curve conveyor Transfer conveyor Metal detector Inspection line Packaging...

Open the catalog to page 12

Legend / remarks See folding page (flap) 11b >

Open the catalog to page 15

12 Ε Absolutely blank, smooth, closed and non-porous belt surface Calendered surface coating Benefits Reduced soiling of belt surface Very good release properties Full support of easy and efficient cleaning Օ Excellent release properties HACCP support Low surface energy (HACCP = Hazard Analysis and Critical Control Points) Օ Non-polar material Blue coating available (CNB-6EBC) Excellent release of sticky products Less soiling Minimum affinity of surface with food, food-residues and bacteria Efficient and reliable processing Reduced waste Reduced downtime Full compliance/admissible for food...

Open the catalog to page 16

13 Benefits Ε Excellent low temperature resistance down to -40˚C / Suitable for cold store application No loss of bending properties in lowtemperature environment -40˚F No cracking of belt surface Habilene > withstands lower temperature conditions than any other coating materials such as TPU or PVC Ε Longitudinal flexibility Belt can cope with small pulley diameters, compact design Nosebar suitability for CNB-6EB and CAB-6EB Smooth and trouble free product transfer Օ Habilene Low energy consumption Insensitive to humidity and temperature fluctuations > ծ is resistantagainst hydrolysis...

Open the catalog to page 17

Worldwide leading product range Habasit offers the largest selection of belting, conveying, processing and complementary products in the industry. Our response to anyrequest is nothing less than a specific, tailor- made solution. A selection of our product ranges: > 19 At Habasit, we listen to our customers, innovate continuously and deliver reliable solutions to meet your every need.Customers come first For additional information please visit:www.habasit.com Worldwide support Our extensive organization is ready to support you anywhere in the world. Engineering and emergency assistance,...
