Overview
GIOTTO-MAN is a manual measuring bench designed for shafts, suitable for use on the production floor to provide immediate feedback on tolerance limits. It is operated manually by the user and ensures repeatability through a dedicated mechanical system. The device is customizable to meet specific customer requirements.

Technical Specifications
  • Measuring Range: Length (Z) 0-500 mm or 0-1000 mm; Diameter (X) 1-120 mm or 1-150 mm.
  • Max Permissible Error: Length (Z) 4 + L(mm)/100 µm; Diameter (X) 3 + D(mm)/100 µm.
  • Repeatability: Length (Z) ≤ 4 µm; Diameter (X) ≤ 3 µm.
  • Resolution: Length (Z) 0.001 mm; Diameter (X) 0.001 mm.
  • Measuring Force: Constant for both Z and X axes.
  • Max Weight of Shaft: 40 kg for GM500, 60 kg for GM1000.
  • Weight of Instrument: 200 kg for GM500, 390 kg for GM1000.

Features
  • Manual measurement with accurate results.
  • Good repeatability ensured by a mechanical system.
  • Constant measuring force to minimize operator influence.

Dimensional and Geometrical Parameters
The device measures diameter, shoulder, width of recess, length, and taper, providing comprehensive dimensional analysis for shafts.
See more

Catalog excerpts

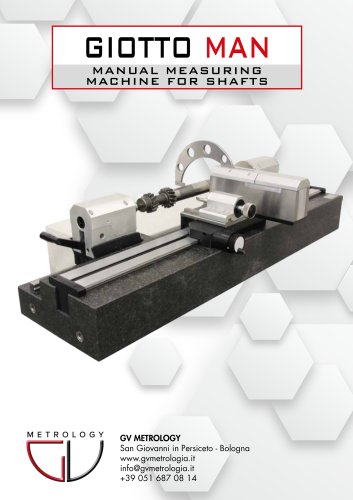

T-SHAFT MAN-1
