GURLEY Precision Instruments
HR2B, HR2C High Resolution Interpolators

HR2B, HR2C High Resolution Interpolators

Product catalog summary

Specifications:
The HR2B and HR2C are high-resolution interpolators designed for use with Gurley Model 9710 and 9717 modular incremental encoders. They require an input power of +5.0 ± 0.25V at a maximum of 125 mA, excluding transmission line termination requirements. The output signals are quadrature square waves with an interpolation factor (INT) of 20, 1, 2, 5, or 10, depending on the model. The maximum input frequency is 25 kHz, while the output frequency varies with the interpolation factor, reaching up to 500 kHz for INT = 20.

Procedures:
The devices include a watchdog circuit that outputs a low signal when analog encoder waveforms are faulty. The output device is an RS-422 differential line driver. The interpolators operate within a temperature range of 0° to 70°C and can be stored between -18° to 71°C. They are designed to handle up to 98% relative humidity in non-condensing conditions.

Norms and Standards:
The HR2B and HR2C are ISO 9001 certified, ensuring quality and reliability in their design and manufacturing processes.

Recommendations:
For optimal performance, it is recommended to consult the encoder data sheet for specific power requirements and to ensure proper termination of transmission lines. The devices are available in different configurations, including PC board assembly for user enclosure or mounted in an aluminum enclosure with IP 40 rating.

Special Capabilities:
Gurley Precision Instruments offers customization options for encoders to meet specific user requirements, such as higher frequency response, greater accuracy, and wider temperature ranges.

Warranty:
A limited warranty is provided against defects in material and workmanship for one year from the date of shipment.

Catalog excerpts

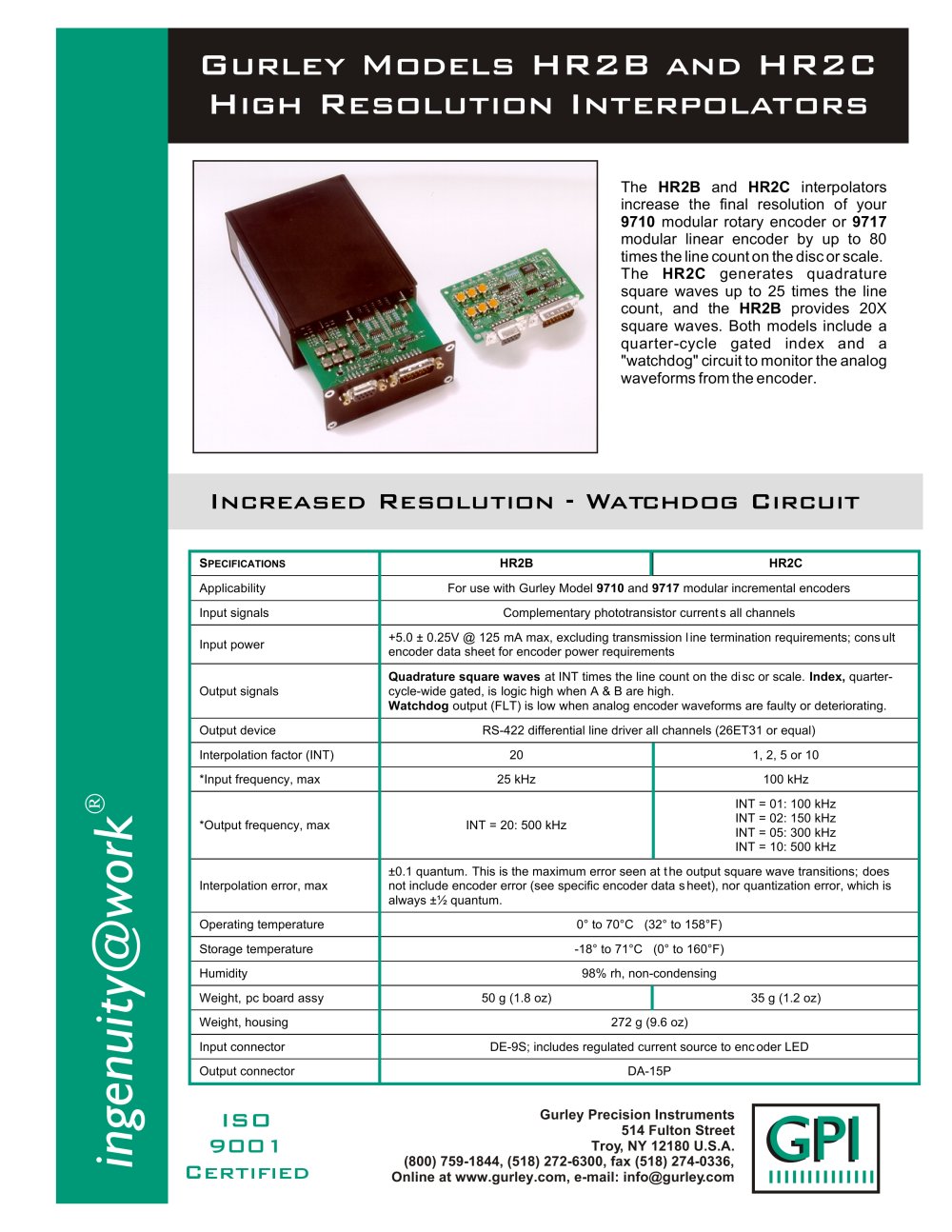

HR2B, HR2C High Resolution Interpolators-1

S > PECIFICATIONS HR2BHR2C ApplicabilityFor use with Gurley Model 9710 and 9717 modular incremental encoders Input signalsComplementary phototransistor currents all channels Input power+5.0 0.25V @ 125 mA max, excluding transmission line termination requirements; consultencoder data sheet for encoder power requirements Quadrature square waves at INT times the line count on the disc or scale. Index, quarter-cycle-wide gated, is Output signals logic high when A & B are high. Watchdog output (FLT) is low when analog encoder waveforms are faulty or deteriorating. Output deviceRS-422 differential line driver all channels (26ET31 or equal) Interpolation factor (INT)201, 2, 5 or 10 *Input frequency, max25 kHz100 kHz *Output frequency, maxINT = 20: 500 kHzINT = 01: 100 kHzINT = 02: 150 kHz INT = 05: 300 kHz INT = 10: 500 kHz Interpolation error, maxѱ0.1 quantum. This is the maximum error seen at the output square wave transitions; doesnot include encoder error (see specific encoder data sheet), nor quantization error, which is always ѽ quantum. Operating temperature0 to 70аC (32 to 158аF) Storage temperature-18 to 71аC (0 to 160аF) Humidity98% rh, non-condensing Weight, pc board assy50 g (1.8 oz)35 g (1.2 oz) Weight, housing272 g (9.6 oz) Input connectorDE-9S; includes regulated current source to encoder LED Output connectorDA-15P >

Open the catalog to page 1

HR2B, HR2C High Resolution Interpolators-2

HR2B/HR2C OUTLINE DIMENSIONS > Gurley Precision Instruments514 Fulton StreetTroy, NY 12180 U.S.A.(800) 759-1844, (518) 272-6300, fax (518) 274-0336, Online at www.gurley.com, e-mail: [email protected] HR2B/HR2C > Page 2 of 4V3.1

Open the catalog to page 2

HR2B, HR2C High Resolution Interpolators-3

Gurley Precision Instruments514 Fulton StreetTroy, NY 12180 U.S.A.(800) 759-1844, (518) 272-6300, fax (518) 274-0336, Online at www.gurley.com, e-mail: [email protected]

Open the catalog to page 3

HR2B, HR2C High Resolution Interpolators-4

VERS B C 3 x 4Լ board; 20X interpolation 3Ԕ x 2 board; 1, 2, 5 or 10X interpolation Interpolation factors available with 01, 02, 05, 08, 10, 12, 16, or 25 20 > VERS = C INT Interpolation factor available with > VERS = B INDEX Q Quarter-cycle gated index POWER 5 5Vdc input power INPUT A Differential photocurrents > PKG 0 1 PC board assembly, for mounting inside userԒs enclosure Mounted in aluminum enclosure, IP 40 SF # N Issued at time of order to cover special customer requirements No special features > Gurley Precision Instruments514 Fulton StreetTroy, NY 12180 U.S.A.(800) 759-1844, (518) 272-6300,...

Open the catalog to page 4
