9x25 Rotary Incremental Encoder

9x25 Rotary Incremental Encoder
1 / 6Pages

Catalog excerpts

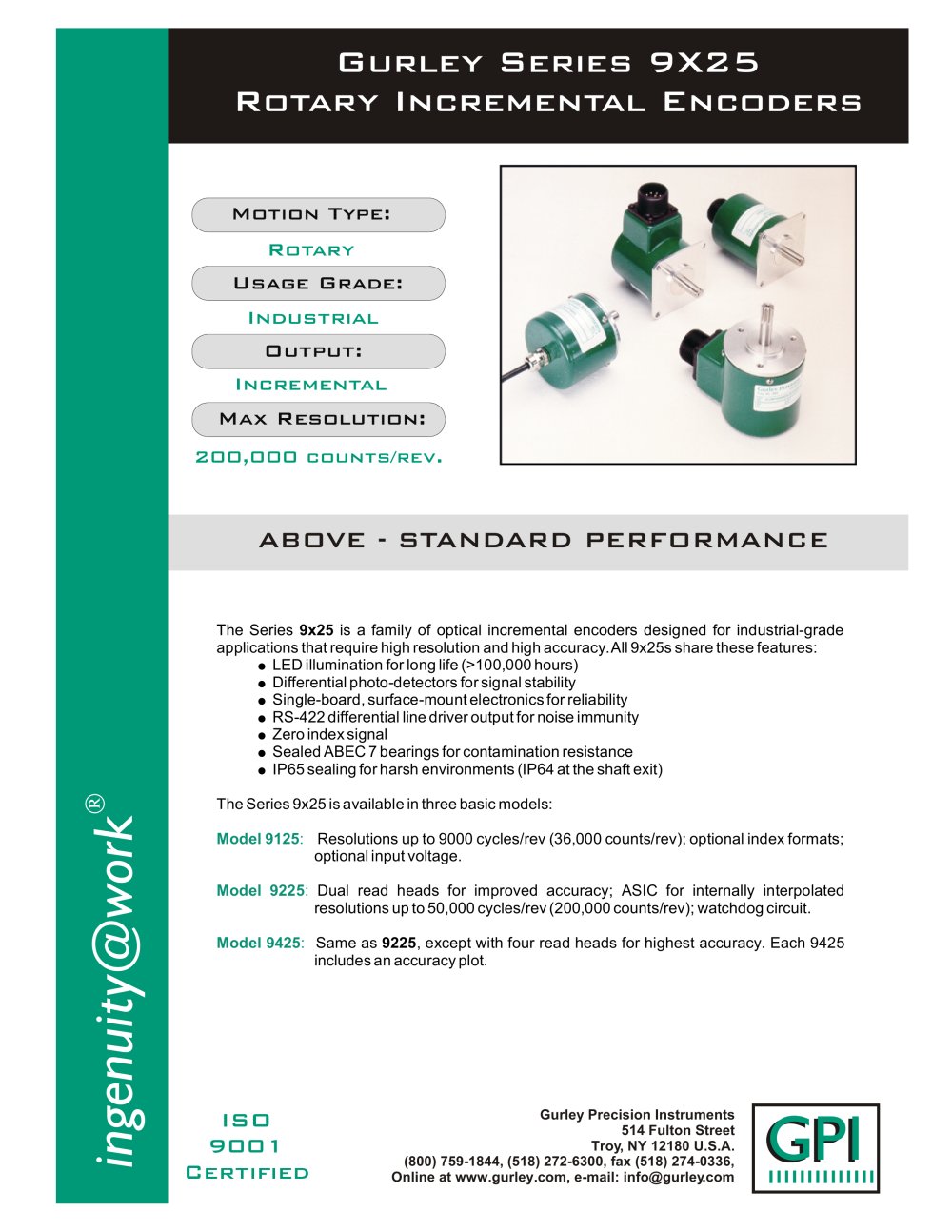

The Series 9x25 is a family of optical incremental encoders designed for industrial-grade applications that require high resolution and high accuracy. All 9x25s share these features: LED illumination for long life (>100,000 hours) Differential photo-detectors for signal stability Single-board, surface-mount electronics for reliability RS-422 differential line driver output for noise immunity Zero index signal Sealed ABEC 7 bearings for contamination resistance IP65 sealing for harsh environments (IP64 at the shaft exit)The Series 9x25 is available in three basic models: Resolutions up to 9000 cycles/rev (36,000 counts/rev); optional index formats; optional input voltage. Dual read heads for improved accuracy; ASIC for internally interpolated resolutions up to 50,000 cycles/rev (200,000 counts/rev); watchdog circuit. Same as Model 9125 : Model 9225 : Model 9425 : 9225 , except with four read heads for highest accuracy. Each 9425 includes an accuracy plot. > Gurley Precision Instruments514 Fulton StreetTroy, NY 12180 U.S.A.(800) 759-1844, (518) 272-6300, fax (518) 274-0336, Online at www.gurley.com, e-mail: info@gurley.com ingenuity@work

Open the catalog to page 1

C > HANNEL A C > HANNEL B I > NDEX Q-cycle option I > NDEX Hܽ-cycle option (9125 only) I > NDEX F (not gated) full-cycle option (9125 only) fault duration F > AULT (9225, 9425 > ONLY ) > Gurley Precision Instruments514 Fulton StreetTroy, NY 12180 U.S.A.(800) 759-1844, (518) 272-6300, fax (518) 274-0336, Online at www.gurley.com, e-mail: info@gurley.com

Open the catalog to page 3

OutputFunctions Wire ColorsPin #, Dx-15PPin #, DE-9PPin #, MS3102E-18-1P Conn. Code P Conn. Code Q or R Conn. Code S Conn. Code A Conn. Code M A Yellow84AA / A Brown78HB B Green53BC / B Orange47ID IND Blue22CE / IND White16JF FLT Violet12 / FLT Gray11 +V Red105DI C > OMMON Black139FJ C > ASE Bare (shield) 91GH > * Andok and Braycote are brand names of Exxon Corp and Castrol Industrial North America, respectively. GPI reserves the right to change to equivalent lubricants without notice. Gurley Precision Instruments514 Fulton StreetTroy, NY 12180 U.S.A.(800) 759-1844, (518) 272-6300, fax...

Open the catalog to page 4

Notes:1. Mating connector is optional.Connector Code PQRSMA Optional mating connector N/AM01M05M06M02M02 2. Any connector code can be used with any base code.3. See Rack-and-Pinion data sheet for rack details.4. All dimensions are in inches [mm] > Gurley Precision Instruments514 Fulton StreetTroy, NY 12180 U.S.A.(800) 759-1844, (518) 272-6300, fax (518) 274-0336, Online at www.gurley.com, e-mail: info@gurley.com

Open the catalog to page 5

MODEL SHAFT LINES IND V OUT INTERP BASE CAB EXIT CONN DIA SPEC A Base & lubricant type Synchro/face mount, Andok MODEL9125 C Square-flange mount, Andok Standard accuracy E Synchro/face mount, Braycote 9225 High accuracy F Square-flange mount, Braycote 9425 Highest accuracy CAB 18 - Cable length, inches SHAFT - Shaft type Standard S Solid shaft 00 With P 10-tooth pinion shaft (1֔ per rev.) Q 20-tooth pinion shaft (2 per rev.) > CONN code A, M or TEXIT LINES - Disc line count S Ԗ Cable exit or connector location 00200, 00250, 00300, 00360, 00500,00600, 00635, 00900, 01000, 01200, 01250,...
