Gunnebo

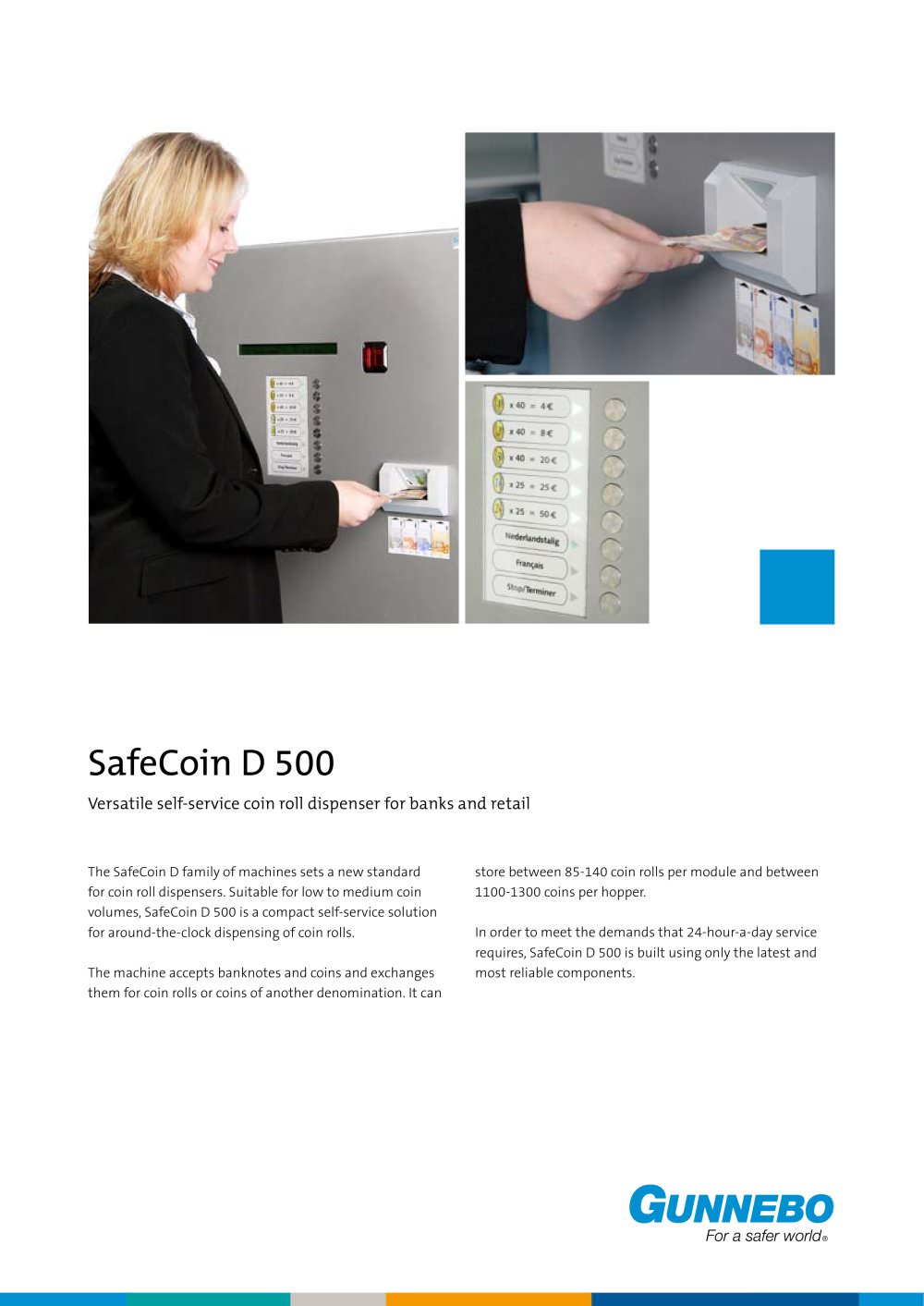

SafeCoinD500

SafeCoinD500

Product catalog summary

Overview: The SafeCoin D 500 is a versatile self-service coin roll dispenser designed for banks and retail environments. It is suitable for low to medium coin volumes and offers 24/7 dispensing of coin rolls. The machine can handle banknotes and coins, exchanging them for coin rolls or coins of another denomination.

Design and Installation: The SafeCoin D 500 can be installed as either a wall-mounted or freestanding unit. It is front-accessible, facilitating easy servicing and refilling by staff or CIT companies.

Management Software: The SafeControl software provides a web-based solution for monitoring and managing the self-service network, offering real-time status and performance insights for all terminals.

Exchange Options: The machine supports exchanges from banknotes to coin rolls, banknotes to coins, and coins to coins.

Features:

24/7 self-service availability
High-capacity coin roll dispensing modules
Operational reliability with CAN bus technology
Windows XP operating system
Electronic log for tracking

End User Benefits:

Reduced waiting times
Continuous availability
Optional customer identification via card reader
Various fee models available

Technical Specifications:

Capacity: 85-140 coin rolls per module, 1100-1300 coins per hopper
Positioning: Wall-mounted or freestanding
Placement: Indoor or lobby
Servicing: Front-loading
Supply voltage: AC 230 V ±10%
Mains frequency: 50Hz
Power consumption: 100 VA standby, 200 VA transaction
Dimensions: Type M - 700 x 1600 x 600 mm, Type L - 800 x 1600 x 600 mm
Weight: Type M - 350kg, Type L - 400kg (empty), +180kg (max. full)
Material: 3mm steel housing and door
Ambient temperature: +5 °C to +45 °C
Relative humidity: 20% to 80% (non-condensing)
Paint colour: Special RAL 9006 and 9007 powder coating, other RAL colours on request
