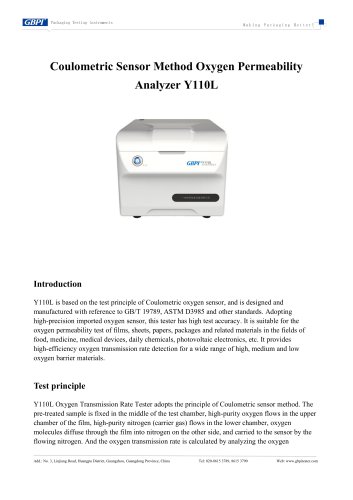

Coulometric Sensor Method Oxygen Permeability Analyzer Y110L Introduction Y110L is based on the test principle of Coulometric oxygen sensor, and is designed and manufactured with reference to GB/T 19789, ASTM D3985 and other standards. Adopting high-precision imported oxygen sensor, this tester has high test accuracy. It is suitable for the oxygen permeability test of films, sheets, papers, packages and related materials in the fields of food, medicine, medical devices, daily chemicals, photovoltaic electronics, etc. It provides high-efficiency oxygen transmission rate detection for a wide range of high, medium and low oxygen barrier materials. Test principle Y110L Oxygen Transmission Rate Tester adopts the principle of Coulometric sensor method. The pre-treated sample is fixed in the middle of the test chamber, high-purity oxygen flows in the upper chamber of the film, high-purity nitrogen (carrier gas) flows in the lower chamber, oxygen molecules diffuse through the film into nitrogen on the other side, and carried to the sensor by the flowing nitrogen. And the oxygen transmission rate is calculated by analyzing the oxygen Add.: No. 3, Linjiang Road, Huangpu District, Guangzhou, Guangdong Province, China

concentration measured by the sensor. Schematic diagram for Coulometric sensor method Standard ISO 15105-2, GB/T 19789, GB/T 1038.2, ASTM D3985, ASTM F2622, ASTM F1927, ASTM F1307, JIS K 7126-2, DIN 53380-3, Chinese Pharmacopoeia 2025 Edition "4007 Determination of Gas Transmission Rate of Pharmaceutical Packaging Materials", YBB 00082003 Specification Item Technical Parameters Test range Temperature control range Temperature control accuracy Add.: No. 3, Linjiang Road, Huangpu District, Guangzhou, Guangdong Province, China

Humidity control range This high-precision oxygen sensor boasts high sensitivity, exceptional stability, and an extremely low failure rate, with a resolution of 0.0001 cm3/(m2-24h-0.1MPa). Precise control of test temperature and humidity. Equipped with a high-precision temperature and humidity sensor, the test chamber temperature and humidity are stable, with temperature control accuracy up to 0.2°C and humidity accuracy to ±2%RH. The instrument monitors temperature, humidity, and gas flow rate values and curves in real time during the Add.: No. 3, Linjiang Road, Huangpu District, Guangzhou,...

testing process, ensuring high repeatability. Wide Testing Range, High Instrument Applicability The instrument features a single chamber, making it compact and flexible, saving space. Wide testing range 0.05~1000 cm³/(m²·24h·0.1 MPa) meets the testing needs of high, medium, and low barrier materials. With adapters, it can measure oxygen permeability in containers such as bottles, bags, and bowls. Intelligent Operating System, Globally Certified The self-developed intelligent operating system features modular diagrams, flexible setting of test process parameters, and intuitive and convenient operation....

Add.: No. 3, Linjiang Road, Huangpu District, Guangzhou, Guangdong Province, China Tel: 020-8615 3789, 8615 3790 Web: www.gbpitester.com

Oxygen permeability test of pipes made of various materials Factory configuration Standard Note: GBPI has always been committed to the innovation and improvement of product performance and function. For this reason, product technical specifications and appearance will also be changed accordingly. The above situation will not be notified. GBPI reserves the right of modification and final interpretation. Add.: No. 3, Linjiang Road, Huangpu District, Guangzhou, Guangdong Province, China Tel: 020-8615 3789, 8615 3790 Web: www.gbpitester.com
