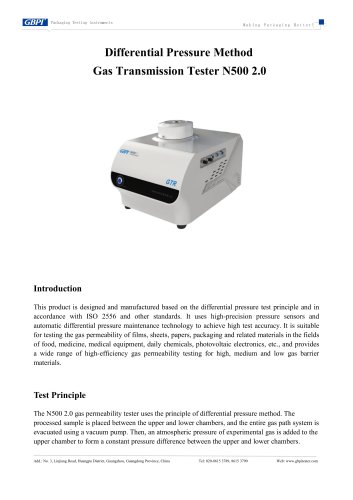

Differential Pressure Method Gas Transmission Tester N500 2.0 Introduction This product is designed and manufactured based on the differential pressure test principle and in accordance with ISO 2556 and other standards. It uses high-precision pressure sensors and automatic differential pressure maintenance technology to achieve high test accuracy. It is suitable for testing the gas permeability of films, sheets, papers, packaging and related materials in the fields of food, medicine, medical equipment, daily chemicals, photovoltaic electronics, etc., and provides a wide range of high-efficiency gas permeability testing for high, medium and low gas barrier materials. Test Principle The N500 2.0 gas permeability tester uses the principle of differential pressure method. The processed sample is placed between the upper and lower chambers, and the entire gas path system is evacuated using a vacuum pump. Then, an atmospheric pressure of experimental gas is added to the upper chamber to form a constant pressure difference between the upper and lower chambers. Add.: No. 3, Linjiang Road, Huangpu District, Guangzhou, Guangdong Province, China

Under the action of the pressure gradient, the gas penetrates from the upper chamber to the lower chamber through the film, and the system can calculate the gas permeability and other barrier performance parameters of the sample through the pressure change in the lower chamber. Standards Chinese Pharmacopoeia 2025 Edition, "4007 Determination of Gas Permeability of Pharmaceutical Packaging Materials", GB/T 1038.1, ISO 2556, ISO 15105-1, ASTM D1434, JIS K7126-1, YBB 00082003 Add.: No. 3, Linjiang Road, Huangpu District, Guangzhou, Guangdong Province, China Tel: 020-8615 3789, 8615 3790 Web: www.gbpitester.com...

Packaging Testing Instruments ♦ Patented core technology, efficient and accurate testing Patented automatic pressure differential technology, automatically maintains the pressure difference on both sides of the sample (pressure differential can be adjusted arbitrarily), built-in high-precision pressure sensor, resolution up to 0.01 Pa, good stability, low failure rate. The semiconductor refrigeration chip automatically controls the temperature in both directions, and the temperature control accuracy reaches 0.1oC. Original imported vacuum pump, the limit pressure can reach 0.05 Pa, high vacuum...

3D printed shell, smooth lines, fashionable and beautiful, novel and unique. Fully automatic operation, one-button test, automatic judgment, and automatic shutdown. Real-time display of five groups of curves: permeability-time, temperature-time, upper chamber pressure-time, lower chamber pressure-time, and pressure difference change-time. The curve supports preview and hide functions.  Intelligent operating system, global certification Self-developed intelligent operating system, modular graphics, flexible setting of test process parameters, and intuitive and convenient operation. Designed according...

Solid medical hard sheet (PP/PVC/PTP, etc.), metal composite sheet, rubber sheet and other sheet materials Coated paper, carbon paper, silicone paper, aluminized paper, paper-aluminum-plastic composite sheet and other paper, cardboard Medicinal patch, Medical plaster treatment patch, warm patch, dysmenorrhea warmer patch Sanitary napkins, pads and other hygiene products Wine bottles, Coke bottles, peanut oil drums, Tetra Pak packaging, vacuum packaging bags, three-piece cans, Package cosmetic packaging, toothpaste tubes, jelly cups, yogurt cups, etc. Plastic, rubber, paper, paper-plastic composite,...

Factory configuration Standard Note: GBPI has always been committed to the innovation and improvement of product performance and function. For this reason, product technical specifications and appearance will also be changed accordingly. The above situation will not be notified. GBPI reserves the right of modification and final interpretation. Add.: No. 3, Linjiang Road, Huangpu District, Guangzhou, Guangdong Province, China Tel: 020-8615 3789, 8615 3790 Web: www.gbpitester.com

GBPI (Guangzhou Biaoji Packaging Equipment Co., Ltd.) was established in 2002 and is located in Guangzhou Economic Development Zone. It is an enterprise integrating R&D, production, sales of packaging testing instruments, packaging equipment, modified atmosphere refrigerator and other products, and providing third-party testing and reference material calibration services. It is committed to providing comprehensive, professional, high-quality products and technical services for the packaging, food, medicine, testing and other industries. Write industry standards with quality and become a leader...
