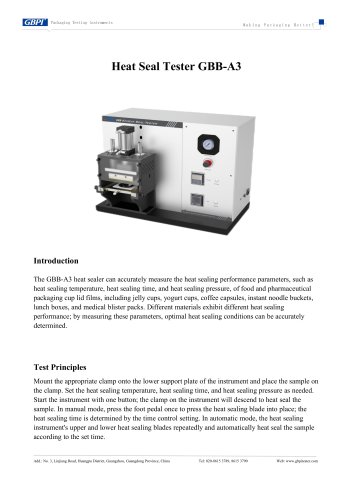

Heat Seal Tester GBB-A3 Introduction The GBB-A3 heat sealer can accurately measure the heat sealing performance parameters, such as heat sealing temperature, heat sealing time, and heat sealing pressure, of food and pharmaceutical packaging cup lid films, including jelly cups, yogurt cups, coffee capsules, instant noodle buckets, lunch boxes, and medical blister packs. Different materials exhibit different heat sealing performance; by measuring these parameters, optimal heat sealing conditions can be accurately determined. Test Principles Mount the appropriate clamp onto the lower support plate of the instrument and place the sample on the clamp. Set the heat sealing temperature, heat sealing time, and heat sealing pressure as needed. Start the instrument with one button; the clamp on the instrument will descend to heat seal the sample. In manual mode, press the foot pedal once to press the heat sealing blade into place; the heat sealing time is determined by the time control setting. In automatic mode, the heat sealing instrument's upper and lower heat sealing blades repeatedly and automatically heat seal the sample according to the set time. Add.: No. 3, Linjiang Road, Huangpu District, Guangzhou, Guangdong Province, China

• Pull -out Sample Loading Method The lower tray features a double-layer stacking design, allowing for pull-out sample loading away from the sealing blade, offering both convenience and safety. • High -Precision Temperature Sensor A high-precision temperature sensor, combined with PID algorithm temperature control, achieves a temperature control accuracy of ± 1C, boasting exceptional stability and an extremely low failure Add.: No. 3, Linjiang Road, Huangpu District, Guangzhou, Guangdong Province, China Tel: 020-8615 3789, 8615 3790 Web: www.gbpitester.com

Personalized Testing Options Choose between manual and automatic testing. Automatic mode saves time and provides repeatable, fully automatic sample heat sealing; manual mode features a convenient foot switch—simply press the foot switch to press the heat sealing blade, ensuring safety and ease of operation. The drive system consists of a pressure gauge, pressure regulating valve, and cylinder. Compressed air is introduced, and the pressure is precisely locked via the pressure valve, pneumatically driving the heat sealing fixture for convenient and efficient operation. Extensive Customization...

Coffee capsules Medical blister packaging Factory configuration Standard Power cord, foot switch, Allen wrench, Phillips screwdriver configuration Optional Measurement certificate, air compressor Add.: No. 3, Linjiang Road, Huangpu District, Guangzhou, Guangdong Province, China

1. Power supply: 500W 220V 10A 3-hole socket with grounding wire; 2. Air source (e.g., air compressor): 2.5HP, 8KG pressure; 3. High-pressure air pipe (08mm plastic tube); 4. Air filter (dust filter, oil filter, water filter); Note: GBPI has always been committed to the innovation and improvement of product performance and function. For this reason, product technical specifications and appearance will also be changed accordingly. The above situation will not be notified. GBPI reserves the right of modification and final interpretation. Add.: No. 3, Linjiang Road, Huangpu District, Guangzhou,...
