"Solenoids" brochure

Product catalog summary

Overview
This document provides detailed information on the development and specifications of electromechanical solenoids by Gruner AG. The company specializes in creating custom solenoids tailored to specific applications, ensuring optimal integration into the overall function of the equipment.

Specifications
The document outlines technical specifications for various solenoids, including:

Rated voltage: 6 - 60 VDC
Rated power: Ranges from 0.7 W to 12 W at 20°C
Ambient temperature: -20 to +70°C
Protection class: IP 00
Weight: Varies from 5 g to 280 g
Coil resistance: Specified for different voltages
Duty cycle: 100%

These specifications are valid at 20°C.

Product Applications
Gruner's small solenoids are used in various sectors, including HiFi and video equipment, office machines, automotive accessories, white goods, and automatic devices. The company can accommodate special requirements regarding coil design, mounting, and armature type.

Product Examples
The document lists several types of solenoids, such as:

Pull solenoids
Thrust solenoids
Hinged-armature solenoids
Holding solenoids

Performance Data
Performance data is provided for different power levels and duty cycles, detailing the magnetic force exerted at various distances.

Additional Products
Besides solenoids, Gruner AG offers a range of products including P.C.B. relays for DC, polarized latching relays, industrial relays, actuators for dampers, and motorized ball valves.

Contact Information
For further inquiries or custom development requests, Gruner AG can be contacted via their website or email.

Catalog excerpts

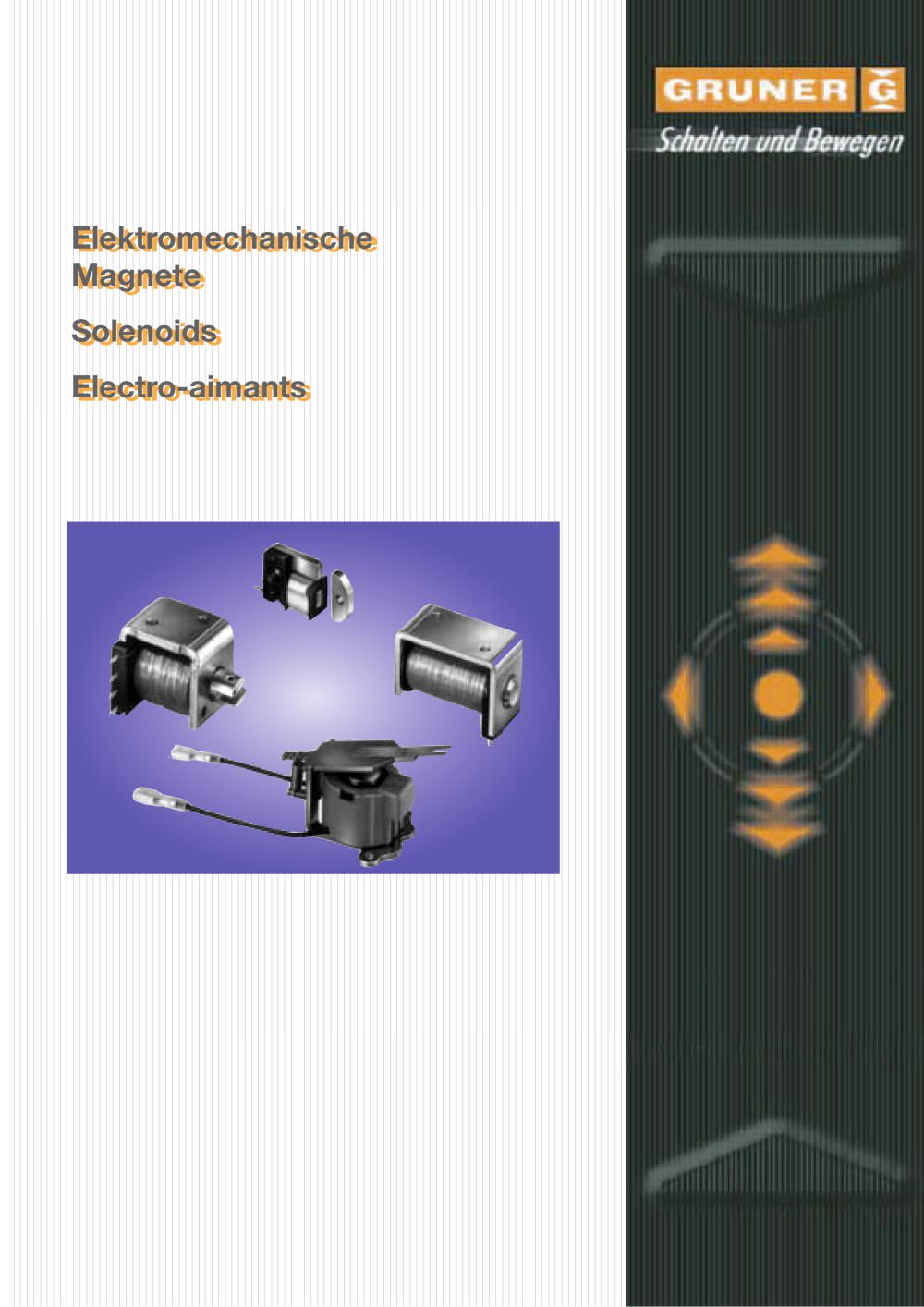

Elektromechanische Magnete Solenoids Electro-aimants Elektromechanische Magnete Solenoids Electro-aimants >

Open the catalog to page 1

Beispiele Halte-DoppelmagnetDouble holding magnetElectro-aimant de maintien, double Examples StomagnetThrust-solenoidAimant de poussߩe Exemples ProportionalmagnetProportional magnetElectro-aimant proportionnel Unsere besondere Strke liegt in derEntwicklung von Magneten, die aufden speziellen Einsatzfall zugeschnit-ten sind.Durch enge Zusammenarbeit mit demKunden erfolgen Gerte- und Magnet-entwicklung Hand in Hand. So ist eineoptimale Abstimmung und Integrationdes Magneten in die Gesamtfunktionm䤶glich.Dies gilt fr Hub-, Sto- oder Klapp-ankermagnete genauso wie f쟼r Halte-oder Proportionalmagnete...

Open the catalog to page 2

Elektromechanische Magnete Stellantriebe MotorventileP.C.B. Relays for DCPolarized latching relays Industrial relays Leiterplattenrelais fr GleichstromGepolt bistabile Relais Industrierelais Solenoids Actuators for dampers Motorized ball valves > Electro-aimants Servomoteurs Vannes motoris켩e Relais pour circuit imprim C.C.Relais polaris, bistable Relais industriels > Techn. 驄nderungen vorbehalten Techn. changes are reserved Օ Sous rserve de modifications techniques Postfach 1149, D-78560 Wehingen Tel.(+49) 74 26 / 948 - 0 Fax(+49) 74 26 / 948 - 200http://www.gruner.deE-Mail: [email protected] GRUNER...

Open the catalog to page 6
