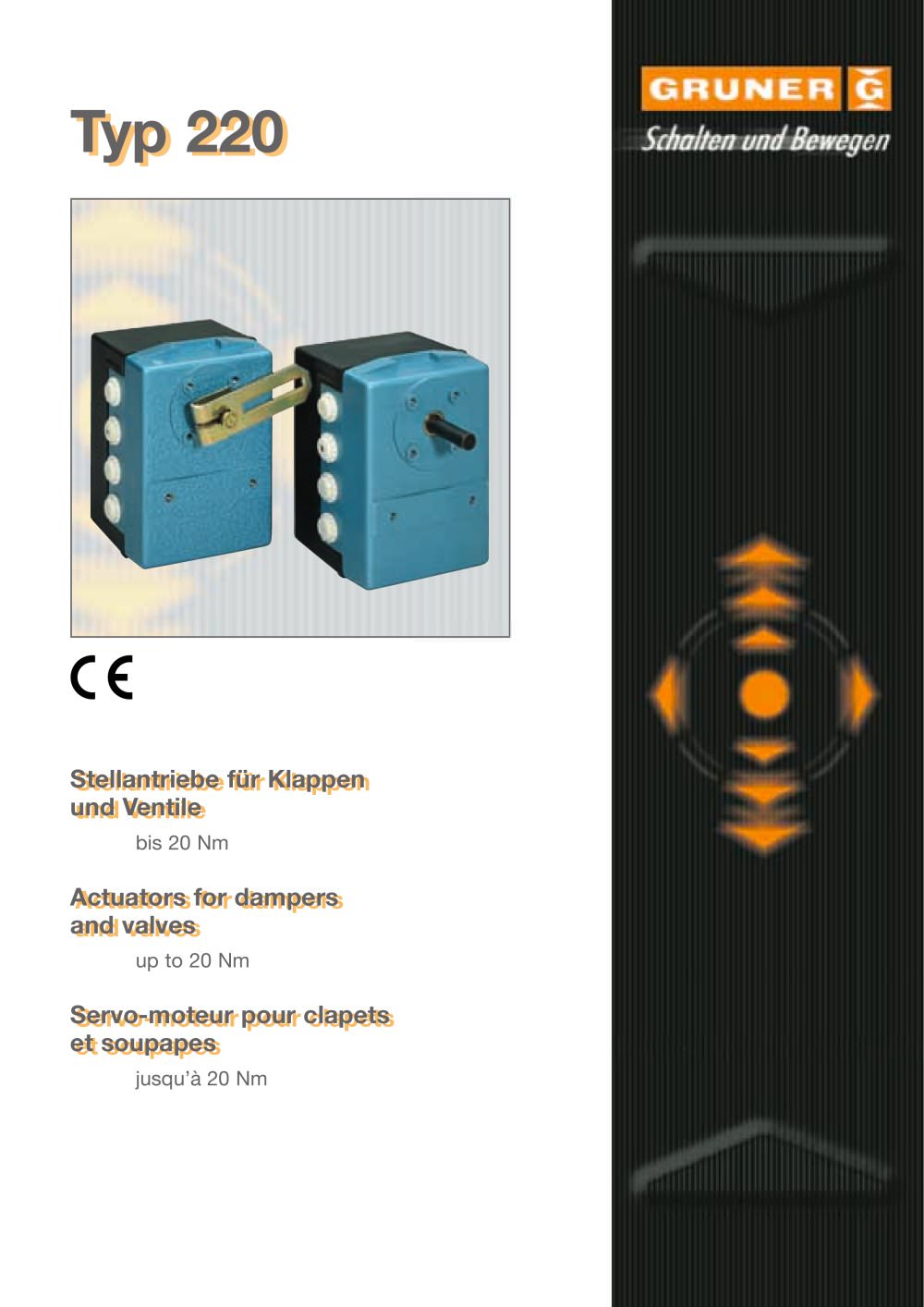

OEM Actuator Type 220

Product catalog summary

Overview: The document provides technical specifications and operational details for the Typ 220 actuators, designed for regulating dampers, valves, and other functions. These actuators are robust, maintenance-free, and feature a motor that operates independently of the load, with final stop control via microswitches.

Specifications:

Torque: Up to 20 Nm
Control: 3-point regulation
Motor Type: Synchronous
Connecting Voltage: 24 VAC ± 10% or 230 VAC ± 10%, 50/60 Hz
Running Time: Varies from 6s to 160s for 90° rotation depending on torque
Safety Class: I / III
Protection: IP 54
Ambient Temperature: -20 to +50 °C
Dimensions: 160 x 115 x 109 mm
Weight: 1500 g

Installation and Adjustment: The actuators can be mounted directly or with a fixing angle. The synchronous motor is controlled by microswitches at 0° and 90°. If the damper closes before reaching 90°, the trigger cam must be adjusted accordingly.

Additional Features:

Supplementary switches are available but not pre-adjusted; customization is possible upon request.
Potentiometer options are available for additional control.

Technical Data: The document includes detailed technical data such as power consumption, angle of rotation, direction of rotation, and switching power. It also provides connection schemes and diagrams for installation guidance.

Contact Information: For further inquiries, GRUNER AG can be contacted via phone, fax, or email as provided in the document.

Catalog excerpts

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:12.00pt "Arial", sans-serif; } .font2 { font:19.00pt "Arial", sans-serif; } GRUNER Schalten und Bewegen Technische Daten Baureihe 220 D Technical Data series 220 D Caract. techniques sries 220 D Motor synchron motor synchronous moteur synchrone Anschlussspannung connecting voltage 230 V ± 10% / 50 ... 60 Hz tension d'alimentation 24 V ± 10% / 50 ... 60 Hz Leistungsaufnahme power consumption max. 3,5 W / 5,0 VA consommation Gleichlauf synchron synchron operation synchronous marche synchrone...
