Latching Relays 100-250 Ampere 721

Product catalog summary

Overview: The document provides technical specifications and details for the Gruner AG Type 721 Polarized Latching Relay, designed for high shock and vibration resistance, suitable for applications requiring up to 100 A.

Specifications:

Coil Data: Rated voltage ranges from 6 to 48 VDC, with a rated power of 4.5 W and operating power of 3.0 W. The pulse to set is 20 ms with an action time of less than 15 ms.
Contact Data: Maximum switching power is 25,000 VA, with a maximum switching voltage of 440 VAC and a maximum switching current of 100 A. The relay has a mechanical life of 10⁶ operations.
Insulation: Creepage and clearance distance is 8 mm, with a test voltage of 4,000 V between coil and contact, and 2,000 V between contacts. The dielectric strength is 12 kV/1.2/50μs.
General Data: The relay operates in ambient temperatures from -25 to +70 °C and weighs 75 g. It conforms to VDE, UL, CSA, SEV, and SEMKO standards.

Design and Features:

The relay uses the H-armature principle for high resistance to shocks and vibrations, ensuring no loss of information during power failures.
Manual operation is possible, and the relay is dust-protected to prevent flux and solder vapors from entering.
Power terminals can be customized according to customer specifications.

Shunt Integration:

Type 721 CR/DR includes a shunt for energy measurement and load shedding in energy management systems. The shunt data varies with temperature, affecting resistance values.

Dimensions: Detailed dimensions are provided for installation, with options for customer-specific modifications.

Catalog excerpts

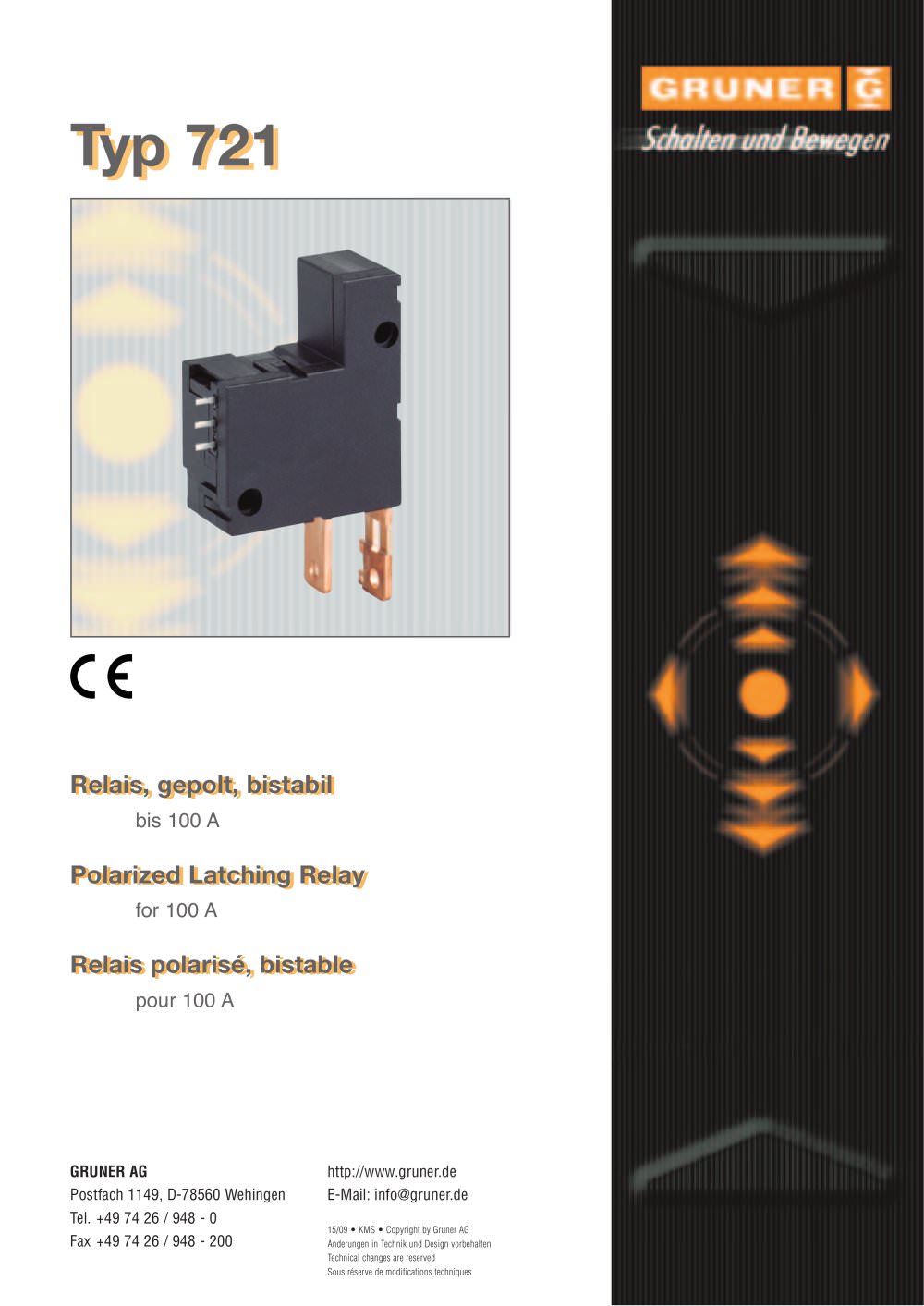

Relais, gepolt, bistabilPolarized Latching Relay Relais polaris, bistableRelais, gepolt, bistabil > bis 100 A Polarized Latching Relay > for 100 A Relais polaris, bistable > pour 100 A GRUNER AG Postfach 1149, D-78560 Wehingen Tel.+49 74 26 / 948 - 0 Fax+49 74 26 / 948 - 200http://www.gruner.deE-Mail: [email protected] 15/09 驕 KMS Copyright by Gruner AG Մnderungen in Technik und Design vorbehalten Technical changes are reserved Sous rserve de modifications techniques size="-3">

Open the catalog to page 1

Wicklungsdaten .Standard windings .Caractristiques des bobines Die Relaisspule mit Doppelwicklung kann auch als Einfachwicklung mit halber Ansprechleistung be trie ben Normwicklung Nr. Spulen-Spulen-Betriebssp.SpulenwiderstandToleranz werden, indem der mittlere Anschluss frei bleibt.The relay coil with double winding can also be used asa single winding with half operating power if the midd- le pin of the coil is not used.Le relais avec bobinage double peut tre utilis骩 com mebobinage simple avec demi puissance de collage, si la connexion de bobine du milieu nʼest pas utilis. Standard winding No....

Open the catalog to page 3
