Customised Solenoid Solutions
Customised Solenoid Solutions
- Custom Development: Gruner AG specializes in developing solenoids for specific applications, ensuring optimal integration into the client's equipment. This includes pull, thrust, holding, and proportional magnets in both monostable and bistable versions.
- Technical Specifications: The document lists technical data for various solenoids, including rated voltage (6-60 VDC), power, ambient temperature range (-20 to +70 °C), protection class (IP 00), weight, coil resistance, duty cycle, and magnetic force. These specifications are valid at 20 °C.
- Applications: Gruner's small solenoids are used in sectors such as HiFi and video, office machines, automotive accessories, white goods, and automatic devices. The company can accommodate special requirements regarding coil design, mounting, and armature type.
- Product Examples: Examples of solenoids include double holding magnets, thrust solenoids, proportional magnets, and pull solenoids. Each type is detailed with specific technical data.
- Performance Data: Tables provide performance data for solenoids at different power levels and duty cycles, showing the relationship between power consumption and magnetic force at various distances.
- Additional Products: The document briefly mentions other products such as P.C.B. relays for DC, polarized latching relays, industrial relays, actuators for dampers, and motorized ball valves.
Catalog excerpts

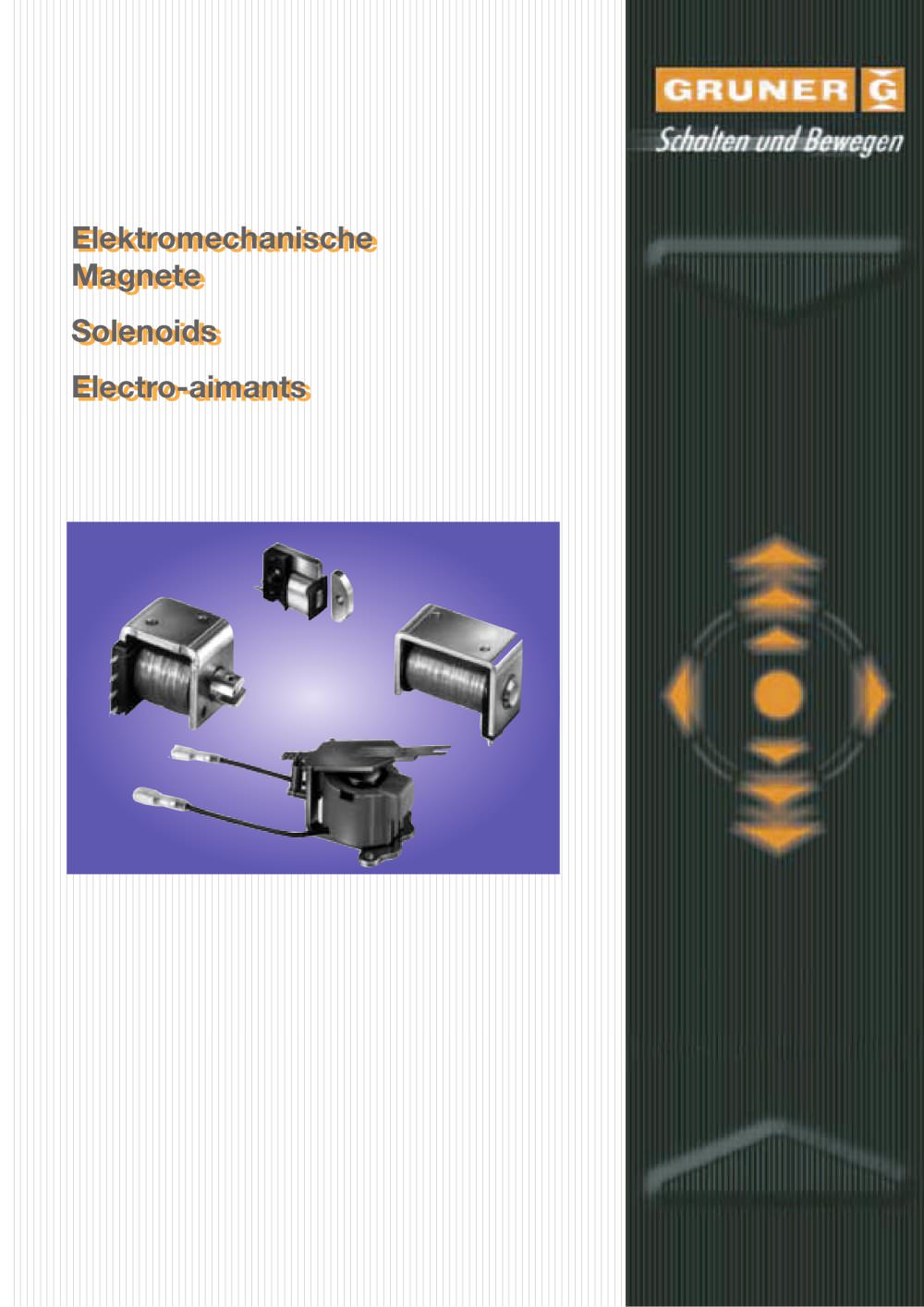

Elektromechanische Magnete Solenoids Electro-aimants Elektromechanische Magnete Solenoids Electro-aimants
Open the catalog to page 1
DQS-Zert. DIN EN ISO 9001 Unsere besondere Stärke liegt in der Entwicklung von Magneten, die auf den speziellen Einsatzfall zugeschnitten sind. Durch enge Zusammenarbeit mit dem Kunden erfolgen Geräte- und Magnetentwicklung Hand in Hand. So ist eine optimale Abstimmung und Integration des Magneten in die Gesamtfunktion möglich. Dies gilt für Hub-, Stoß- oder Klappankermagnete genauso wie für Halteoder Proportionalmagnete in monoals auch in bistabiler Ausführung. Besprechen Sie mit uns Ihr Problem, oder geben Sie uns vorab Ihr Pflichtenheft herein. Our strong point is the development of solenoids...
Open the catalog to page 2
DQS-Zert. DIN EN ISO 9001 Technische Daten Nennspannung DC Nennleistung (20 °C) Umgebungstemperatur Schutzart Gewicht Spulenreihe Einschaltdauer Magnetkraft Diese Angaben gelten bei 20 °C Wir entwickeln und fertigen auch nach Kundenspezifikation. Technical Data rated voltage DC rated power (20 °C) ambient temperature protective system weight coil perc. duty cycle magnetic force These specifications are valid at 20 °C We are also able to develop and produce according to customers specifications. Caract. techniques tension nominale DC puissance nom. (20 °C) témperature ambiante protection poids...
Open the catalog to page 3
Leiterplattenrelais für Gleichstrom Gepolt bistabile Relais Industrierelais Elektromechanische Magnete Stellantriebe Motorventile P.C.B. Relays for DC Polarized latching relays Industrial relays Solenoids Actuators for dampers Motorized ball valves Programmübersicht Product survey Relais pour circuit imprimé C.C. Relais polarisé, bistable Relais industriels Electro-aimants Servomoteurs Vannes motorisée Programme de fabrication Techn. Änderungen vorbehalten • Techn. changes are reserved • Sous réserve de modifications techniques GRUNER AG Postfach 1149, D-78560 Wehingen Tel. (+49) 74 26 / 948...
