CR, CRI, CRN, CRE, CRIE, CRNE - Vertical multistage centrifugal pumps

CR, CRI, CRN, CRE, CRIE, CRNE - Vertical multistage centrifugal pumps

Product catalog summary

Introduction
The document provides a comprehensive guide on the CR, CRI, CRN, CRE, CRIE, and CRNE series of vertical multistage centrifugal pumps by Grundfos. These pumps are designed for diverse applications such as water supply, industrial processes, and water treatment. The CR series features a compact design with in-line suction and discharge ports, while the CRE series includes frequency-controlled motors for variable speed operation.

Product Range
The product range includes models with varying flow rates and pressure capabilities. The CR series offers nominal flow rates from 4.5 to 750 US GPM and temperature ranges from -4°F to +250°F. The CRE series provides similar flow capabilities with integrated frequency control for enhanced energy efficiency and performance monitoring.

Applications
These pumps are suitable for water supply, pressure boosting, industrial processes, and water treatment applications. They can handle various liquids, including potable water, chemicals, oils, and coolants.

Pump and Motor Details
The CR and CRE pumps are non-self-priming, vertical multistage centrifugal pumps with maintenance-free mechanical shaft seals. They are available with standard or frequency-controlled motors, which can be customized for specific applications, including explosion-proof and energy-efficient options.

Control and Efficiency
The CRE series includes motors with built-in frequency control for variable speed operation, resulting in energy savings and increased comfort. Integrated pressure sensors enhance control capabilities.

Technical Specifications
Detailed specifications for each pump model include flow rates, pressure capabilities, motor power, and material options. The pumps are available in cast iron, stainless steel, and titanium versions, with various connection types and flange sizes.

Additional Features
The guide covers accessories such as pipework connections, sensors, and gauges, as well as motor protection and ambient temperature considerations. Custom-built motor solutions are available for special applications.

Overview of E, CRIE, and CRNE Pumps
These pumps are designed for variable flow at constant pressure, suitable for water supply systems, pressure boosting, and various industrial applications, offering benefits such as energy savings and improved processing.

Applications

Constant Pressure: Used in water supply, washing systems, and process boosting systems. E-pumps maintain constant pressure by adjusting flow based on consumption changes.
Constant Temperature: Utilized in air-conditioning and industrial cooling systems. E-pumps adapt performance to maintain desired temperature, enhancing comfort and reducing costs.
Constant Flow: Applied in steam boilers and chemical industries. E-pumps ensure constant water levels, optimizing operation and efficiency.
Dosing: Used in chemical and petrochemical systems. E-pumps ensure correct mixture ratios, improving processing and saving energy.

Control of E-pumps

Control Options: E-pumps can be controlled via a central management system, remote control, or a control panel, allowing monitoring and adjustment of pressure, temperature, flow, and liquid levels.
Control Modes: E-pumps are available with or without integrated pressure sensors for controlled or uncontrolled operation.

Construction
Detailed construction information for various models includes materials like cast iron and stainless steel, and specific components like impellers and seals.

Type Keys and Codes
The document explains the coding system for identifying pump types, versions, materials, and other specifications.

Operating and Inlet Pressure
Details on maximum operating pressure and temperature ranges for different pump models are provided, ensuring users understand the operational limits.

Specifications
The document outlines operating pressures and temperature ranges for various pump models, with pressures ranging from 145 psi to 435 psi and temperature limits from -22°F to +248°F.

Operating Range of Shaft Seals
The shaft seal's operating range is influenced by pressure, pump type, and liquid temperature, with specific limits provided.

Maximum Inlet Pressure
The document specifies maximum permissible inlet pressures for various pump models, emphasizing operational safety.

Selection and Sizing
Pump selection should consider duty point, sizing data, materials, connections, and shaft seal type, with guidelines provided for efficiency and performance curves.

Minimum Inlet Pressure - NPSHA
Calculating the minimum inlet pressure is crucial to avoid cavitation, with a formula provided for maximum suction lift.

Additional Information
References to specific pages for further details on topics like pumped liquids and performance curves are included, along with selection programs like WinCAPS and WebCAPS.

Specifications for Components
Detailed specifications for ANSI-rated threaded counter flanges and couplings used in pumps are provided, made of stainless steel and available in different pressure classes and sizes.

Procedures
Installation procedures for counter flanges and couplings include the use of gaskets, bolts, and nuts, with details on necessary components.

Standards and Norms
The document adheres to ANSI standards for pressure classes and pipework connections, using AISI 316 stainless steel for corrosion resistance.

Recommendations
Recommendations include using customized flanges, TriClamp connections for hygienic design, and explosion-proof motors in hazardous environments.

Accessories and Variants
Accessories include potentiometers and remote controls, with pump variants available for different applications.

Data and Graphs
Tables listing product numbers, pressure ratings, and dimensions for components are included, along with a summary of available variants.

Service Catalog
An interactive service catalog for identifying service parts of Grundfos pumps is provided, including service videos for part replacement.

WinCAPS Program
WinCAPS is a Windows-based program with detailed information on Grundfos products, offering features similar to WebCAPS.

Sizing
Instructions for selecting efficient pumps and performing advanced calculations on energy consumption and life cycle costs are provided.

Replacement Guide
A guide for selecting and comparing replacement data for installed pumps to improve efficiency is included.

CAD Drawings
Downloadable 2D and 3D CAD drawings of Grundfos pumps are available in various formats.

Contact Information
Contact details for Grundfos offices in the USA, Canada, and Mexico are provided.

Company Philosophy
Grundfos emphasizes responsibility, forward-thinking, and innovation as core values.

Catalog excerpts

CR, CRI, CRN, CRE, CRIE, CRNE - Vertical multistage centrifugal pumps-1

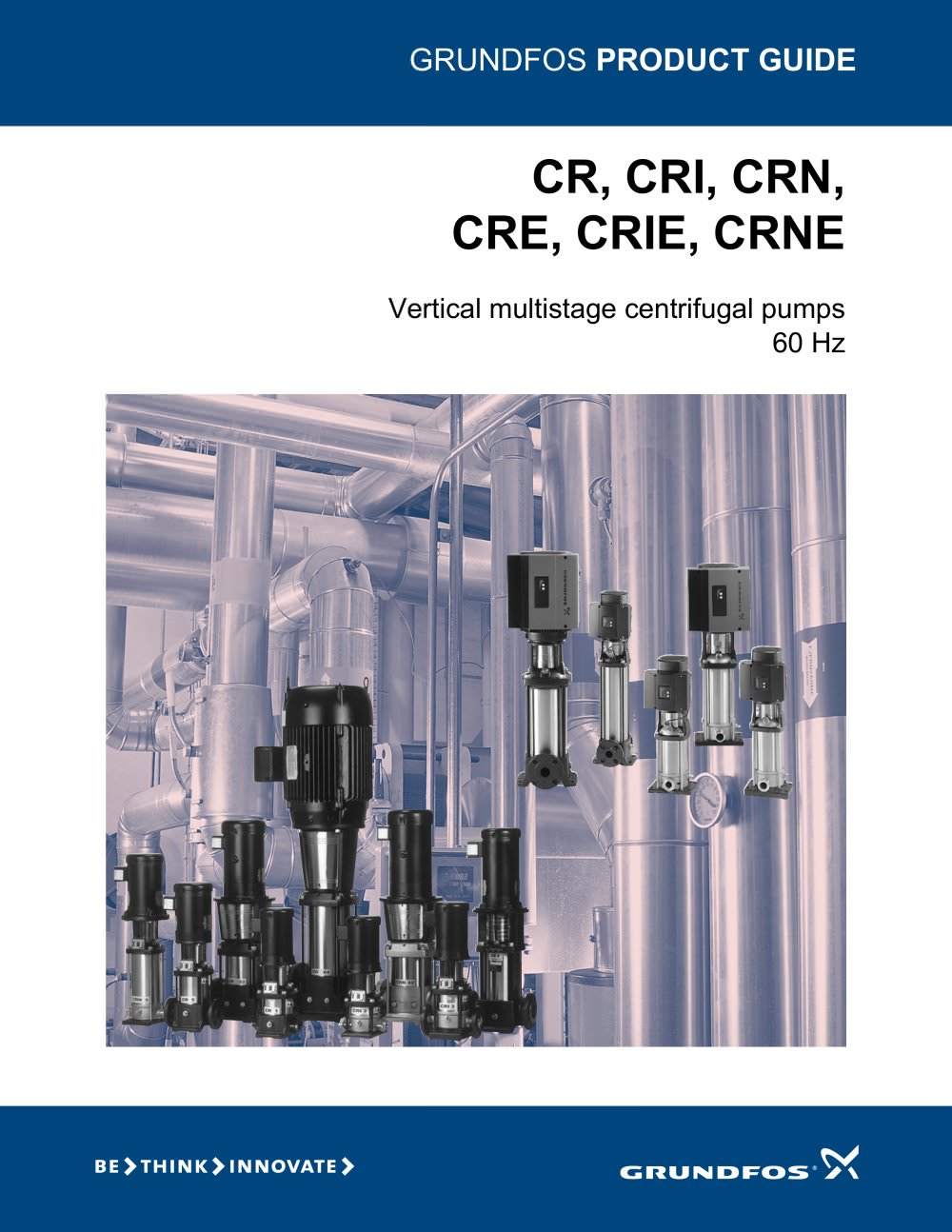

GRUNDFOS PRODUCT GUIDE CR, CRI, CRN, CRE, CRIE, CRNE Vertical multistage centrifugal pumps 60 Hz

Open the catalog to page 1

CR, CRI, CRN, CRE, CRIE, CRNE - Vertical multistage centrifugal pumps-2

Contents 2 Mission Product data Introduction 4 Product range 6 Applications 8 Pump 9 Motor 9 Terminal box positions 10 Ambient temperature 10 Viscosity 10 Product data for E-pumps Examples of E-pump applications 11 Control of E-pumps Control options of E-pumps 12 Control modes for E-pumps 12 Construction CR(E) 1s, 1, 3, 5, 10, 15 and 20 14 CRI(E), CRN(E) 1s, 1, 3, 5, 10, 15 and 20 14 CR(E) 32, 45, 64 and 90 15 CRN(E) 32, 45, 64 and 90 15 CR(E) 120 and 150 16 CRN(E) 120 and 150 16 Type keys and codes Type keys 17 Codes 17 Operating and inlet pressure Maximum operating pressure and temperature...

Open the catalog to page 2

CR, CRI, CRN, CRE, CRIE, CRNE - Vertical multistage centrifugal pumps-3

Mission - It is our mission - the basis of our existence - to successfully develop, produce and sell high-quality pumps and pumping systems world-wide, contributing to a better quality of life and a healthy environment • One of the 3 largest pump companies in the world • The second largest manufacturer of submersible motors in the world • World headquarters in Denmark • North American headquarters in Kansas City - Manufacturing in Fresno, California • 72 companies in 41 countries • More than 10 million motors and pumps produced annually worldwide • North American companies operating in USA, Canada...

Open the catalog to page 3

CR, CRI, CRN, CRE, CRIE, CRNE - Vertical multistage centrifugal pumps-4

CR, CRI, CRN, CRE, CRIE, CRNE 4 Product data Introduction This data booklet deals with CR, CRI and CRN as well as CRE, CRIE and CRNE pumps. CR, CRI, CRN Fig. 1 CR, CRI and CRN pumps CR, CRI, CRN pumps are vertical multistage centrifugal pumps. The in-line design enables the pump to be installed in a horizontal one-pipe system where the suction and discharge ports are in the same horizontal plane and have the same pipe dimensions. This design provides a more compact pump design and pipework. Grundfos CR pumps come with various pump sizes and various numbers of stages to provide the flow and the...

Open the catalog to page 4

CR, CRI, CRN, CRE, CRIE, CRNE - Vertical multistage centrifugal pumps-6

Product data CR, CRI, CRN, CRE, CRIE, CRNE 6 Product range Range CR 1s CR 1 CR 3 CR 5 CR 10 CR 15 CR 20 Nominal flow rate [US GPM] 4.5 8.5 15 30 55 95 110 Temperature range [°F] –4 to +250 Temperature range [°F] – on request –40 to +356 Max. working pressure [psi] 362 362 362 362 362 362 362 Max. working pressure [psi] – on request - 725 725 725 725 725 725 Max. pump efficiency [%] 35 49 59 67 70 72 72 CR pumps CR: Flow range [US GPM] 0.5-5.7 1 - 12.8 1.5 - 23.8 3 - 45 5.5 - 70 9.5 - 125 11-155 CR: Max. pump pressure (H[ft]) 760 790 790 780 865 800 700 CR: Motor power [Hp] .33 - 2 .33 - 3 .33...

Open the catalog to page 6

CR, CRI, CRN, CRE, CRIE, CRNE - Vertical multistage centrifugal pumps-7

Product data CR, CRI, CRN, CRE, CRIE, CRNE Range CR 32 CR 45 CR 64 CR 90 CR 120 CR 150 Nominal flow rate [US GPM] 140 220 340 440 610 750 Temperature range [°F] –22 to +250 1) –22 to +250 1) & 2) Temperature range [°F] – on request –40 to +356 - - Max. working pressure [psi] 435 435 360 360 360 360 Max. working pressure [psi] – on request 580 580 580 580 - - Max. pump efficiency [%] 76 78 79 80 75 73 CR pumps CR: Flow range [US GPM] 14-210 22-310 34-450 44-630 61-700 75-790 CR: Max. pump pressure (H[ft]) 995 940 565 595 685 570 CR: Motor power [Hp] 3-40 7.5-60 7.5-60 15-60 100 100 CRE pumps CRE:...

Open the catalog to page 7

CR, CRI, CRN, CRE, CRIE, CRNE - Vertical multistage centrifugal pumps-8

Product data CR, CRI, CRN, CRE, CRIE, CRNE 8 Applications Application CR, CRI CRN CRE, CRNE Water supply Filtration and transfer at waterworks .. .. .. Distribution from waterworks .. .. .. Pressure boosting in mains .. .. .. Pressure boosting in high-rise buildings, hotels, etc. .. .. .. Pressure boosting for industrial water supply .. .. .. Industry Pressure boosting in... process water systems .. .. .. washing and cleaning systems .. .. .. vehicle washing tunnels .. .. .. fire fighting systems .. Liquid transfer in... cooling and air-conditioning systems (refrigerants) .. .. .. boiler feed...

Open the catalog to page 8

CR, CRI, CRN, CRE, CRIE, CRNE - Vertical multistage centrifugal pumps-9

Product data CR, CRI, CRN, CRE, CRIE, CRNE Pump The CR and CRE pump is a non-self-priming, vertical multistage centrifugal pump. The pumps are available with a Grundfos standard motor (CR pumps) or a frequency-controlled motor (CRE pumps). The pump consists of a base and a pump head. The chamber stack and the outer sleeve are secured between the pump head and the base by means of staybolts. The base has suction and discharge ports on the same level (in-line). All pumps are equipped with a maintenance-free mechanical shaft seal of the cartridge type. Fig. 3 CR pump CR pump with ANSI/NSF 61 listing...

Open the catalog to page 9

CR, CRI, CRN, CRE, CRIE, CRNE - Vertical multistage centrifugal pumps-10

Product data CR, CRI, CRN, CRE, CRIE, CRNE 10 Terminal box positions As standard the terminal box is mounted on the suction side of the pump. Fig. 4 Terminal box positions Ambient temperature Ambient temperature: Maximum +104 °F. If the ambient temperature exceeds +104 °F or if the motor is located 3280 feet above sea level or higher, the motor output (P2) must be reduced due to the low cooling effect of the air. In such cases, it may be necessary to use a motor with a higher output. Fig. 5 Relationship between motor output (P2) and ambient temperature Viscosity The pumping of liquids with densities...

Open the catalog to page 10

CR, CRI, CRN, CRE, CRIE, CRNE - Vertical multistage centrifugal pumps-11

CR, CRI, CRN, CRE, CRIE, CRNE Product data for E-pumps Examples of E-pump applications CRE, CRIE and CRNE pumps are the ideal solution in a number of applications characterized by a need for variable flow at constant pressure. The pumps are suited for water supply systems and pressure boosting, but also industrial applications. Depending on the nature of the application, the pumps offer energy-savings, increased comfort or improved processing. E-pumps in the service of industry Industry uses a large number of pumps in many different applications. Demands on pumps in terms of pump performance...

Open the catalog to page 11

CR, CRI, CRN, CRE, CRIE, CRNE - Vertical multistage centrifugal pumps-12

CR, CRI, CRN, CRE, CRIE, CRNE 12 Control of E-pumps Control options of E-pumps Communication with CRE, CRIE, CRNE pumps is possible by means of • a central management system, • remote control (Grundfos R100) or • a control panel. The purpose of controlling an E-pump is to monitor and control the pressure, temperature, flow and liquid level of the system. Central management system Communication with the E-pump is possible even though the operator is not present near the E-pump. Communication is enabled by having connected the E-pump to a central management system allowing the operator to monitor...

Open the catalog to page 12
