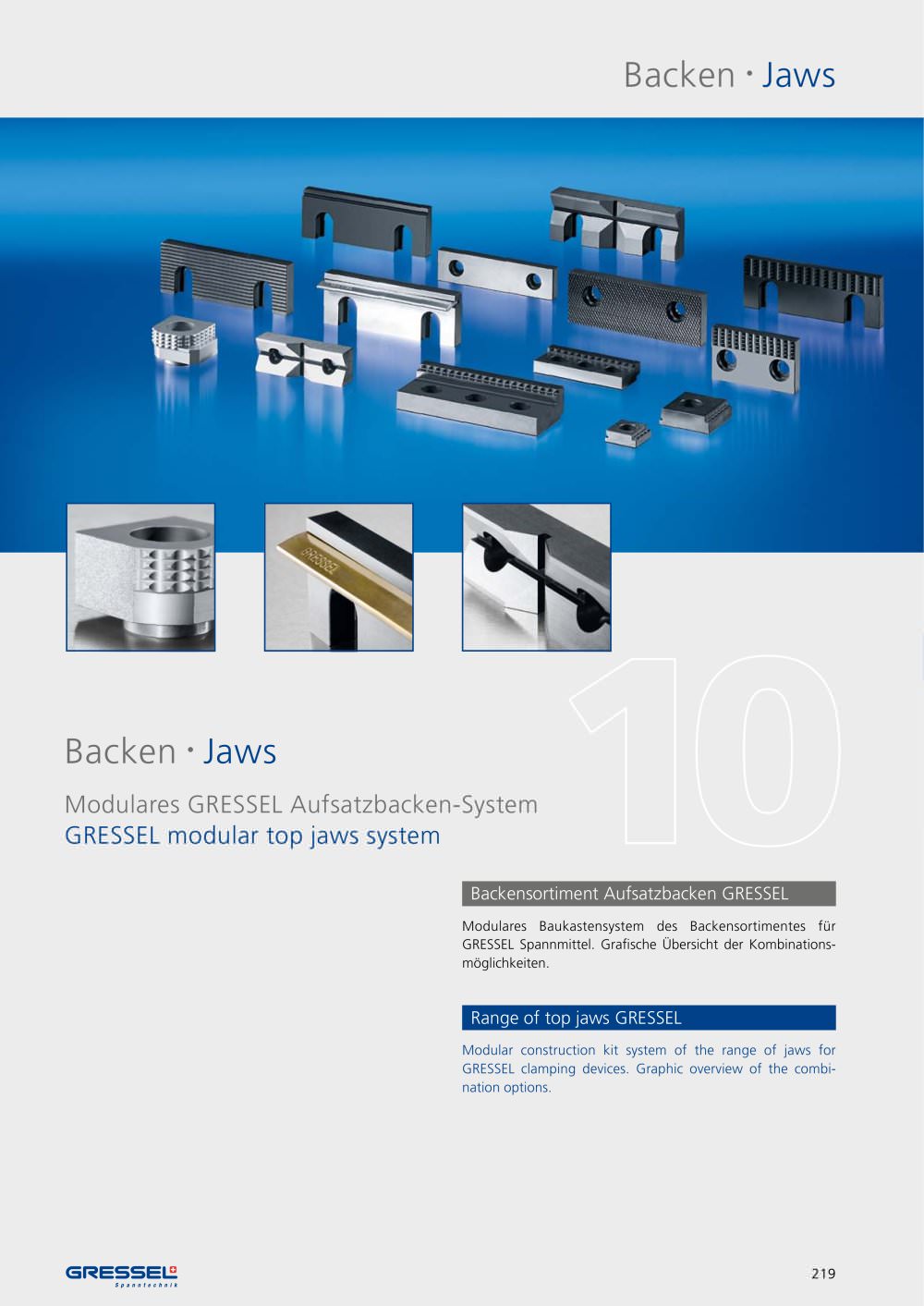

Jaws

Product catalog summary

Overview: The document provides a detailed catalog of GRESSEL's modular top jaws system, which is part of their clamping devices. It includes a comprehensive list of various types of jaws, their dimensions, suitable applications, and order numbers.

Specifications: The document lists different types of jaws such as standard jaws, ground jaws, stepped jaws, prism jaws, soft jaws, and more. Each type is specified with dimensions (A, B, C, D, E) and compatibility with different GRESSEL systems like gripos, solinos, and centrinos.

Product Range: The catalog includes jaws with different surface finishes like profiled, ground, and coated with tungsten carbide. It also covers jaws designed for specific applications such as pull-down jaws for thin workpieces and precision jaws.

Dimensions and Compatibility: Each jaw type is detailed with its dimensions in millimeters and its compatibility with various GRESSEL clamping systems. The document provides a graphical overview of combination possibilities.

Ordering Information: Each jaw type is associated with a specific order number, facilitating easy procurement. The document also includes contact information for GRESSEL AG for further inquiries.
