GRESSEL

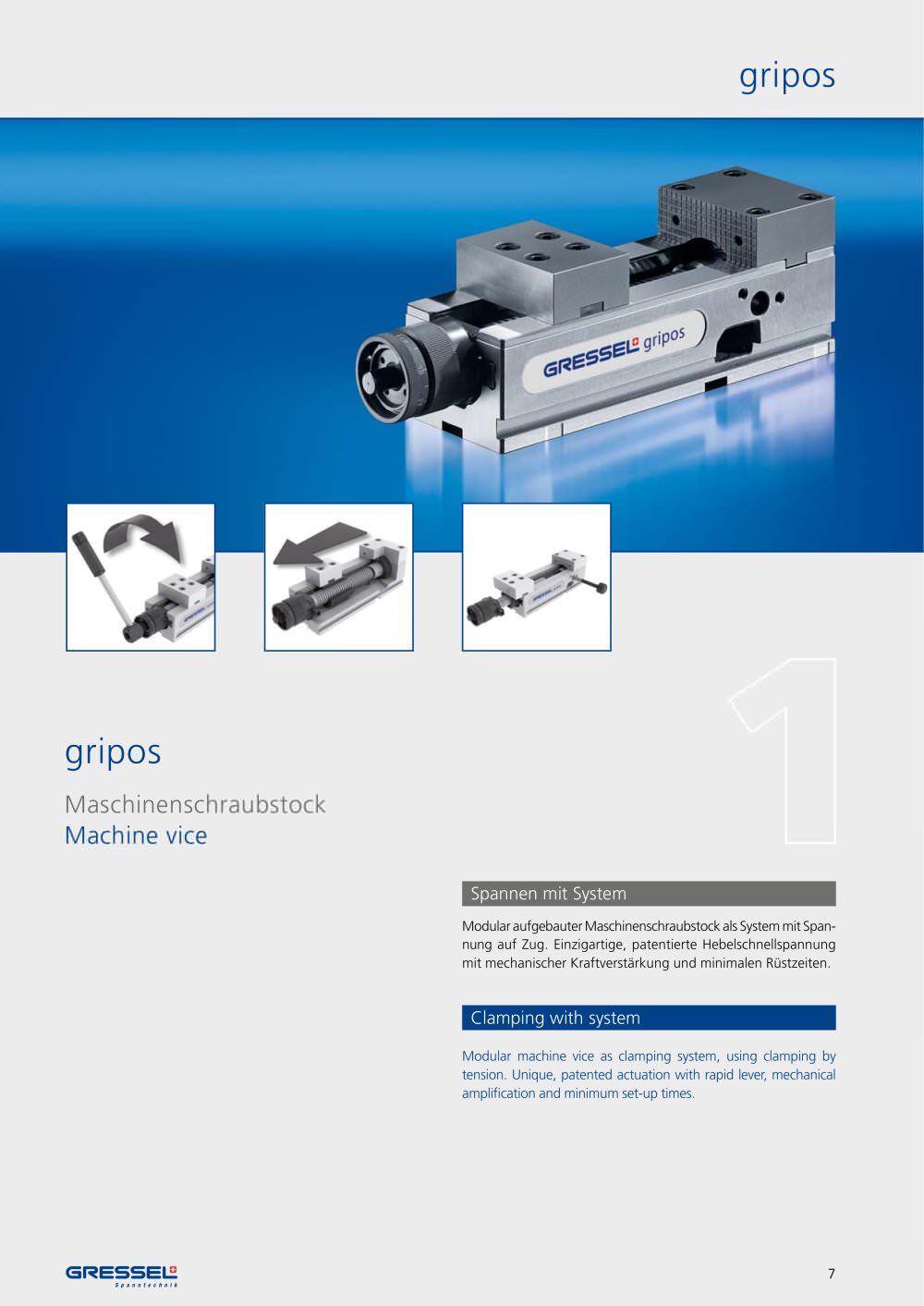

gripos, Machine vice

gripos, Machine vice

Product catalog summary

Overview: The document describes the 'gripos' modular machine vice system, emphasizing its unique features, benefits, and applications. It is designed for rapid clamping with minimal setup time, using a patented lever mechanism for mechanical force amplification.

Advantages:

Rapid Clamping: Clamping is achieved in under one second without lever turning, enhancing safety and eliminating the need for additional angle drives.
Clamping by Tension: This feature prevents base plate deflection, making it ideal for quick change palleting systems and allowing high machining accuracy with adjustable clamping force.
Easy Handling: The system is easy to position on machine tables, requires few components, and allows for quick cleaning and removal.

System Overview:

Encased Force Transmission: Offers mechanical locking and protection from chips and coolant.
Controlled Clamping Force: Adjustable from 10% to 100% without force loss.
Trouble-Free Clamping: No rotation of the outer spindle and no jamming of chips.

Construction Kit: Various models and configurations are available, including standard, tombstone, and specialized versions, each with specific features and applications.

Applications: The document lists multiple applications for different gripos models, such as clamping large casting supports, automated clamping of gearing rails, and use in horizontal machining centers.

Technical Specifications: Detailed specifications for each model are provided, including jaw width, clamping force, weight, and scope of delivery. Dimensions and order numbers are also included for easy reference.
