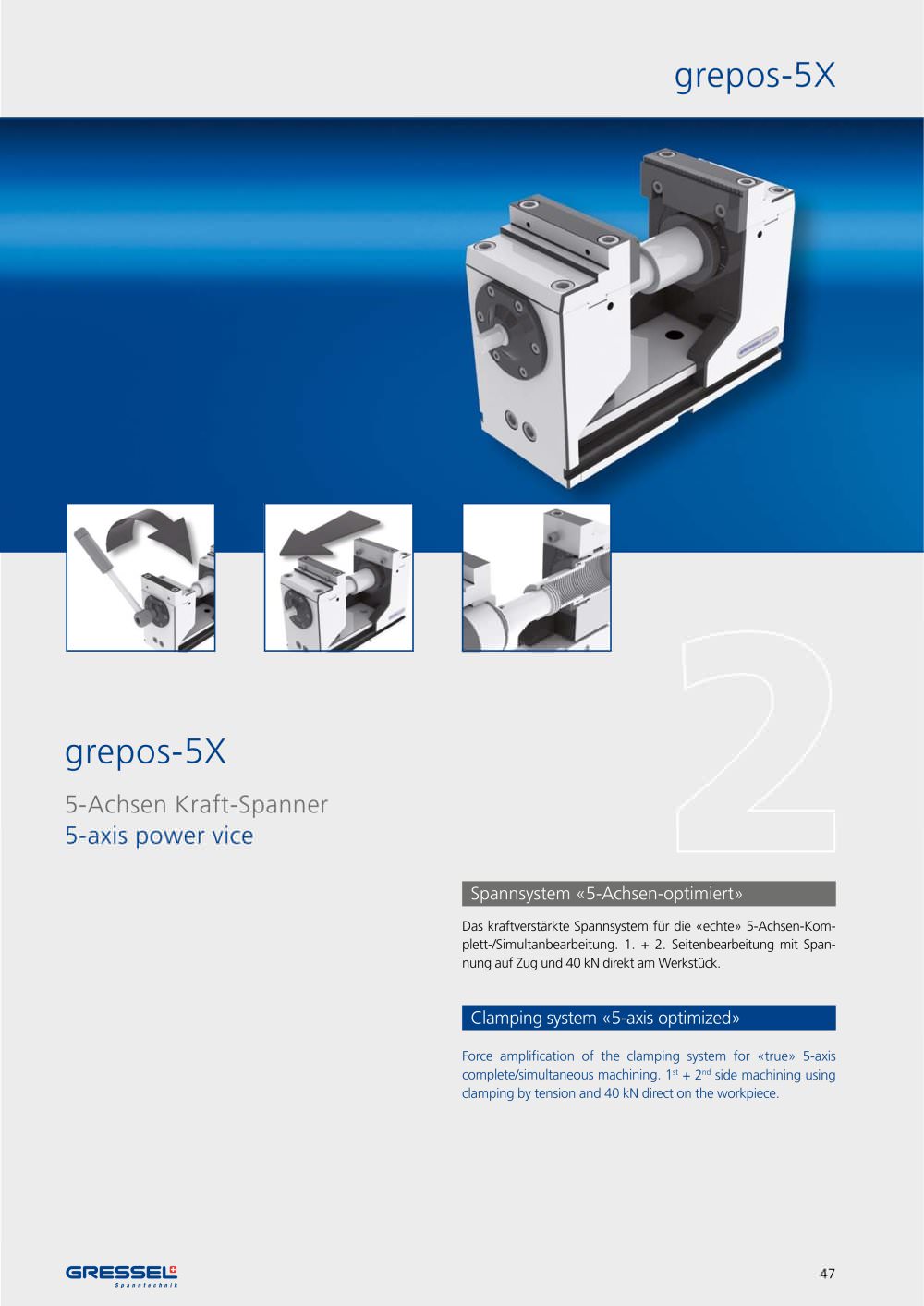

grepos-5X, 5-axis power vice

grepos-5X, 5-axis power vice

Product catalog summary

Overview: The document outlines the specifications and features of the grepos-5X, a 5-axis power vice designed for comprehensive and simultaneous 5-axis machining. It emphasizes the system's ability to amplify force, enabling clamping by tension with a force up to 40 kN directly on the workpiece.

Advantages: Key benefits of the grepos-5X include rapid lever quick clamping in under one second, mechanical load amplification, and straightforward stress adjustment without a torque key. It provides high repetition accuracy and vibration-resistant mechanical locking of the clamping force.

System Features: The system is fully enclosed to prevent chip accumulation and ensure optimal coolant drainage. It features easy lever adjustment and supports multifunctional applications with a broad clamping range for both raw and finished workpieces.

Construction Kit: The document details various components and accessories for the grepos-5X, such as standard and aluminum top jaws, tension rod extensions, and adapter and swivel plates, each with dimensions, clamping force, and order numbers.

Applications: The grepos-5X is adaptable, supporting extended clamping ranges and various jaw configurations to fit different workpiece sizes and shapes.

Technical Specifications: The document provides detailed dimensions and specifications for different grepos-5X configurations, including jaw width, clamping force, and weight, along with order numbers for easy reference.

Accessories: A variety of accessories are available for the grepos-5X, including reversible jaws, clamping levers, hand levers, tension rod extensions, and base plate extensions. Precision slot nuts and clamping screws for T-slots are also listed.
