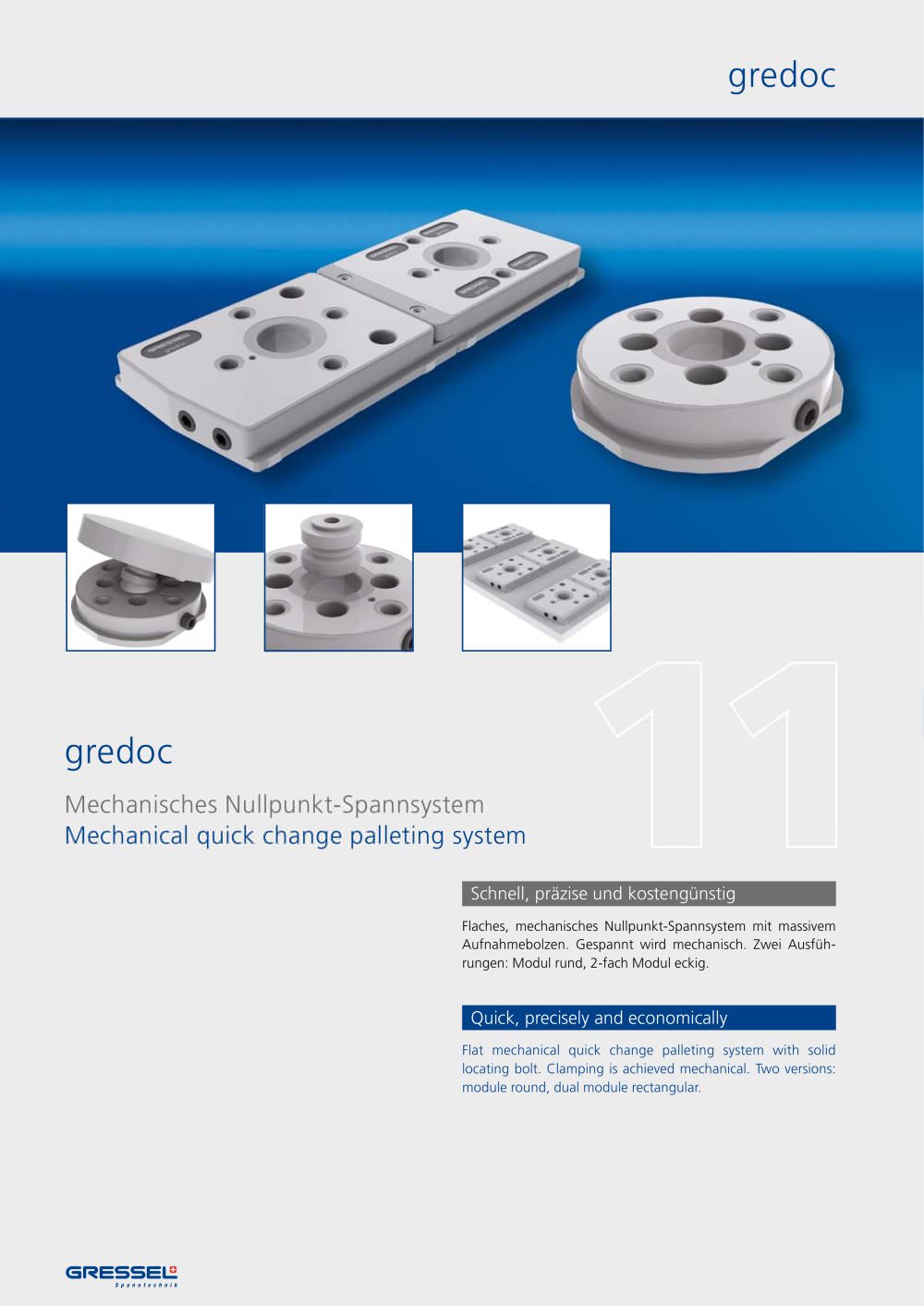

gredoc, Mechanical quick change palleting system

Product catalog summary

Overview: The document outlines the 'gredoc' mechanical quick change palleting system, emphasizing its fast, precise, and economical operation. It features a flat design with a solid locating bolt and is available in round and rectangular modules.

Specifications: The system offers a repeat accuracy of less than 0.01 mm, a pull-down force of 20 kN, and a height of 30 mm +/- 0.005. It is designed to be low-maintenance, wear-resistant, and unaffected by chips and coolant. The locating bolt is compatible with major quick change systems and can be installed from either the top or bottom.

Advantages: Benefits include easy and quick conversion, no tilting, high stiffness, and compatibility with 50 mm raster holes. It significantly reduces setup times and costs compared to traditional and pneumatic/hydraulic systems.

Applications: The gredoc system is suitable for direct clamping of workpieces, machine table mounting, and various configurations like tombstones and intermediate plates.

Economy: The document compares setup times and costs, showing substantial savings with the gredoc system over three months, with an example profit of 280 Euros and amortization in under three months.

Operation Principle: The locating bolt ensures precise positioning in the X/Y direction and is secured with a 20 kN pull-down force.

Mounting Options: Various alignment and centering sets, fitting screws, and clamping screws are available for different T-slot sizes, ensuring compatibility with existing setups.

Accessories: Accessories include torque wrenches, alignment kits, and clamping claws, offering comprehensive solutions for diverse mounting needs.

Alignment and Centering Kits: Detailed kits for T-slots of various sizes (12mm, 14mm, 16mm, 18mm) are provided with order numbers, essential for precise machining setups.

Fixing and Clamping Screws: Specifications for fixing screws for bore hole grids (M12) and clamping screw sets for T-slot applications are included, available in different sizes with specific order numbers.

Accessories for Gredoc and Centrinos: Lists of compatible accessories, including positioning sets, locating bolts, torque wrenches, and lock pins, each with designated order numbers.

Intermediate Plates: Descriptions of intermediate plates for Solinos and Multigrip systems, with options for different lengths and corresponding order numbers.

Pallets: Specifications for types of pallets, such as blank and breadboard pallets, with respective order numbers.

Contact Information: Contact details for GRESSEL AG, including address, phone, fax, and email for distribution inquiries.
