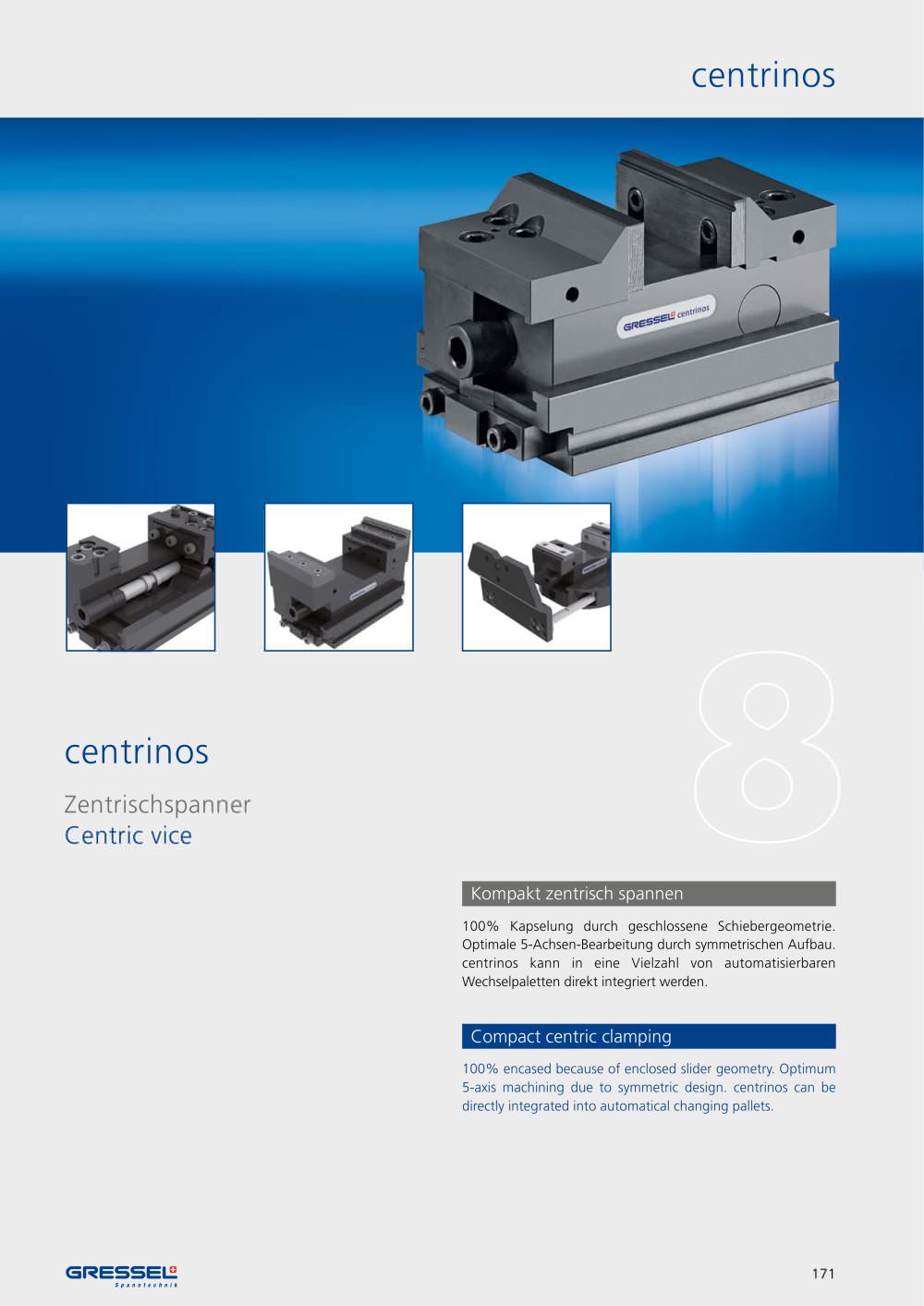

centrinos, Centric vice

Product catalog summary

Overview: The document provides comprehensive information on Centrinos centric clamping systems, emphasizing their design, benefits, and applications. These systems are optimized for 5-axis machining and can be integrated into automated pallet systems.

Specifications: Centrinos systems are fully encased to prevent contamination and ensure reliability. They feature a compact design with high clamping forces: up to 20 kN for Centrinos 65 and up to 30 kN for Centrinos 100. The modular design allows for various applications with different top jaws.

Advantages: Benefits include reduced cleaning due to enclosed slider geometry, prevention of chip jamming in the spindle, and dual-side spindle operation. They are suitable for both raw and finished workpieces.

Applications: These systems can be integrated into pallets, ideal for GRESSEL workpiece storage. They support centric multi-clamping on base plates or tombstones and are cost-effective for pallet storage. Applications include integration with EROWA ITS pallets and use on machines like Mikron, Haas, and Matsuura.

Product Variants: Variants include Centrinos 65 and 100 with stepped jaws, prism jaws, and special 5-axis top jaws. Multi-version configurations are available for clamping multiple workpieces.

Technical Data: Detailed specifications are provided for each variant, including jaw width, clamping force, weight, and order numbers. The systems are designed for easy integration into quick-change palleting systems and GRESSEL workpiece storage.

GRESSEL Workpiece Storage System: Focuses on the centrinos 100 IP-5A-WSP centric vice integrated into the pallet, detailing various jaws and accessories.

Specifications:

Centric Vice: The centrinos 100 IP-5A-WSP features a 100 mm jaw width, 30 kN clamping force, and weighs 14.6 kg. It includes clamping pins, hardened support areas, and screws for top jaws.
Dimensions: Specific dimensions are provided for the centrinos 100 IP-5A-WSP.

Jaws:

System Jaws: Includes standard, ground, stepped, prism, soft, and hewn jaws, each with specific dimensions and order numbers.
Top Jaws: Lists different top jaws with details on dimensions and compatibility.

Accessories:

Workpiece Stop: Available for centrinos 65 and 100.
Torque Wrenches: Two types available, covering ranges of 20-100 Nm and 40-200 Nm.
Clamping Accessories: Includes articulated clamping levers, quick release operations, alignment and clamping kits, clamping screws, clamping claws, and fitting screws.

Contact Information: GRESSEL AG, Schützenstrasse 25, CH-8355 Aadorf, with contact details for further inquiries.
