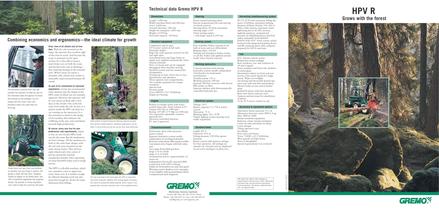

Technical data Gremo HPV R Length: 7,490 mm Width (machine tted with 600-mm tyres): 2,600 mm Ground clearance: 580 mm Height for transport: 3,445 mm Weight: 13,970 kg Fuel-tank capacity: 330 litres Combining economics and ergonomics—the ideal climate for growth The excellent visibility from the cab enables the operator to keep his eye on the harvester head throughout its travel. And thanks to the rooight, he can always see the crown cover and therefore select the right trees for thinning. As part of its commitment to improved ergonomics, Gremo has incorporated many features into the design of the HPV, some of which are not instantly apparent. However, the operator will be very aware of them after a few days in the woods. One is the low noise level inside the cab. In fact, it is quieter inside the HPV cab than in a car cruising on the motorway. It is this attention to detail in the design of the machine that enhances the wellbeing of the user, and contributes towards high productivity. Of course, every user has his own preferences and requirements, which is why no two Gremo HPVs look exactly the same. But the fundamentals don’t change. All the machines are built to the same basic design, with the cab and crane mounted on the same chassis frame. They all have eight wheels and a low centre of gravity, giving the machine exceptional stability when operating on steep downhill slopes and in tough terrain. Forest land can vary from one extreme to another, but one thing is certain: the going is never at and even. However, thanks to bogies on all wheel pairs, the HPV condently negotiates the toughest terrain. No wonder so many operators can’t wait to take the machine off-road! The HPV is a exible machine, which our customers come to appreciate many times over. It is nimble enough for efcient thinning work but also powerful enough for all but the largedimension nal fellings. Standard equipment Compressor and air gun. 24 V power socket at fuel tank. Hydraulic ladder. Bogie lift, with separate controls for left and right sides Articulated-joint and bogie locks on engine unit (applied automatically when Neutral selected) Drive on boom unit can be engaged/ disengaged when machine moving Sprinkler system and two manual re extinguishers Towing lug at front. Draw-bar at rear. Speedometer and odometer. Three separate tool compartments. Two include equipment for stump treatment. Special tools Vacuum pump Tyres: 600/50 x 22.5 Trelleborg Engine pre-heating Clear view of all wheels and all tree tops. With the cab mounted on the bogie, the operator has excellent sight of the close-in work. And because the crane is mounted on the same section, he is also able to keep a much better eye on both the crane and the harvester unit in thinning— thus reducing damage to the retained trees. What’s more, he enjoys a smoother ride, which soon results in noticeably improved performance all round. Eight wheels increase the ground bearing capacity and give Power-assisted steering wheel Electric proportional off-road steering via boom control. Steering effort: 42 kNm maximum Steering angle: ± 43° Outer turning radius: – with bogie raised: 6,350 mm Braking system Four multidisc brakes running in oil bath in front and rear differentials Braking effort: 136 kN Parking and emergency brakes acting on all disc brakes and applied automatically when Neutral selected. Working hydraulics Constant-pressure load-sensing hydraulics system (totally independent of hydraulics for hydrostatic transmission) Variable pump: 135 cc Working pressure: 240 bar Separate 200-litre reservoir with electric ller pump via lter. Separate radiator with thermostatically controlled hydraulic fan. Electrical system Perkins 6-cylinder turbo with watercooled intercooler. Total volume: 6.0 l. Torque: 695 Nm at 1400 rpm Rating: 129 kW (175 bhp) at 2100 rpm Two separately adjustable constantspeed devices. Electrical controlled injection. EC step 2 approved. Voltage: 24 V Battery capacity: 2 x 750 A starter current Alternator: 75 A Working lights: 30 x 70 W Vehicle lighting system meeting road trafc regulations the machine a softer footprint. Suddenly rough terrain can be taken in one’s stride and the job can be done more efciently. Transmission/axles Hydrostatic drive with electronic power control Separate hydraulics system totally independent of working hydraulics Reservoir with electric ller pump via lter Cast pinion-drive bogies with hub reduction Two-stage Powershift gearbox: Stage 1: 0–9.1 km/h Stage 2: 0–25 km/h Transmission power: approximately 12 tonne net Independent electrically operated differential lock with 100% locking. Pedals for forward/reverse and road speed Warning system displays error messages in text together with acoustic/optical alarm Computerized fault diagnosis Standard boom Loglift 181 V Outreach: 10.0 m Lifting moment: 138 kNm (gross) Joysticks Boom control with memory settings for four operators. All settings are entered via a keypad and are displayed (as are error messages) in plain text. Cab ECC climate-control system Widescreen tinted rooight Rear windows, rear side windows of 19 mm Lexgard. Front windows and front side windows of tinted glass. Intermittent wipers on front and rear screens. One-touch button for single sweep. Wiper on rooight. Air-sprung and electrically heated operator seat with seat belt and headrest. Electric brake on seat swivel mechanism. Radio/CD player with four speakers. Rear-view mirror and sun visor Antenna and provision for installation of phone. 12 & 24 V power sockets in cab. Accessory & equipment options Alternative boom outreach: 11.1 m Alternative harvester units: SP451; LogMax 3000 & 5000 Stump-treatment equipment Indicator colour (stump treatment) Crane tilt with automatic levelling Crane damper Tilting operator’s seat Sun blinds Four extra tool boxes Tyres: 710/40 x 22.5 Trelleborg Wear guards on bogie boxes Xeon workinglights Special requirements? Let us know! We retain the right to alter designs or specications without prior notice. Machines pictured may include optional equipment and accessories. All values, measurements etc. are approximate. the machine exceptional lateral stability, which means it can operate with maximum precision even in the roughest terrain. World-class forestry machines Gremo AB • Box 44 • SE-310 61 Ätran Phone: +46 346-605 15 • Fax: +46 346-603 42 [email protected] • www.gremo.com Grows with the forest SP 551 LF II with maximum felling diameter of 600mm, maximum limbing diameter 430mm, Poclain 514, 560 or 926cc roller motors, automatic chaintightening device SC100, autocut, loghold, quickcut, proportional pressure on delimbing knives and feed rollers adjustable from DASA4. DASA4 with 10,4” touch screen, sealed keybord with integrated pointing device and IR communication with computer, prepared for GPS E-mail mm. The low mounting of the boom gives the HPV an extremely low centre of gravity. Together with locking bogies, this gives Harvesting head/measuring system
