GREMO Forwarder 950 R

Product catalog summary

Overview: The document provides a detailed technical description of the Gremo 950 R, a forestry machine designed for efficiency and adaptability in various forestry operations. It highlights the machine's power, flexibility, and environmentally friendly features.

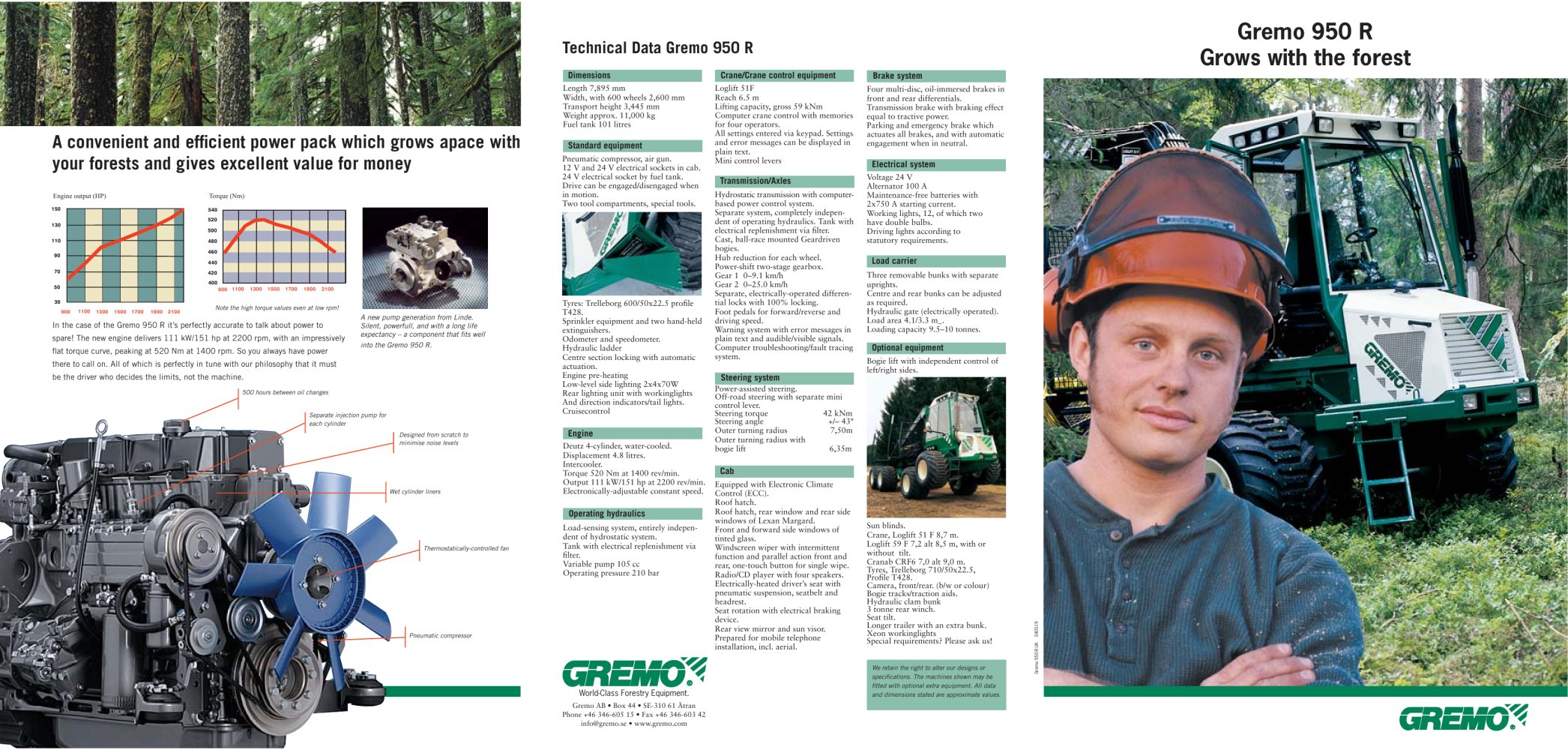

Specifications: The Gremo 950 R is equipped with a Deutz 4-cylinder, water-cooled engine delivering 111 kW/151 hp at 2200 rpm, with a torque of 520 Nm at 1400 rpm. It features a hydrostatic transmission with a power control system, and a power-shift two-stage gearbox allowing speeds of 0–9.1 km/h in gear 1 and 0–25.0 km/h in gear 2. The machine's dimensions are 7,895 mm in length, 2,600 mm in width with 600 wheels, and a transport height of 3,445 mm. It weighs approximately 11,000 kg and has a fuel tank capacity of 101 litres.

Engine and Performance: The engine is designed for high torque even at low rpm, ensuring power availability. It includes features like thermostatically-controlled fan, pneumatic compressor, and wet cylinder liners. The machine is capable of maintaining high speeds on difficult terrain, enhancing working capacity by allowing simultaneous operation of the crane and transmission.

Crane and Load Handling: The Loglift 51F crane has a reach of 6.5 m and a lifting capacity of 59 kNm. It includes computer crane control with memory for four operators, and settings are entered via a keypad. The load carrier is flexible, with a capacity of 9.5–10 tonnes, and features a hydraulic gate and adjustable bunks.

Cab and Ergonomics: The cab is equipped with Electronic Climate Control, a roof hatch, and windows made of Lexan Margard and tinted glass. It includes an electrically-heated driver's seat with pneumatic suspension, a radio/CD player, and provisions for mobile phone installation. The design emphasizes comfort and reliability for long shifts.

Environmental Considerations: Gremo emphasizes environmental protection, with engines meeting Euro 2 emission standards and the use of catalytic converters and environmentally-sound oils.

Optional Equipment: The document lists various optional equipment such as bogie lift, hydraulic clam bunk, and different crane models, allowing customization to meet specific operational needs.

Conclusion: The Gremo 950 R is a versatile and powerful forestry machine, designed for both thinning and final-felling operations. Its adaptability, combined with a focus on environmental sustainability and operator comfort, makes it a valuable asset in forestry operations.

Catalog excerpts

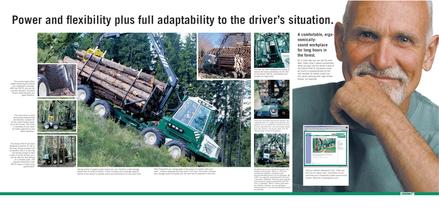

The neutral bogie offers power transmission without any unpleasant surprises.With the 950 R, you are the one who decides. Excellent terrain response gives you great freedom.The load carrier is both generously-proportioned and fl exible, suitable for all the usual harvest types, up to ten tonnes. The crane is mounted on the trailer for bet ter ergonomics and easier ope ra tion. > There are countless equipment options. By choosing from our range of accessories and options, you can adapt the machine to your precise requirements. You practically create your own Gremo, just as you want it to be. (Shown...

Open the catalog to page 2
