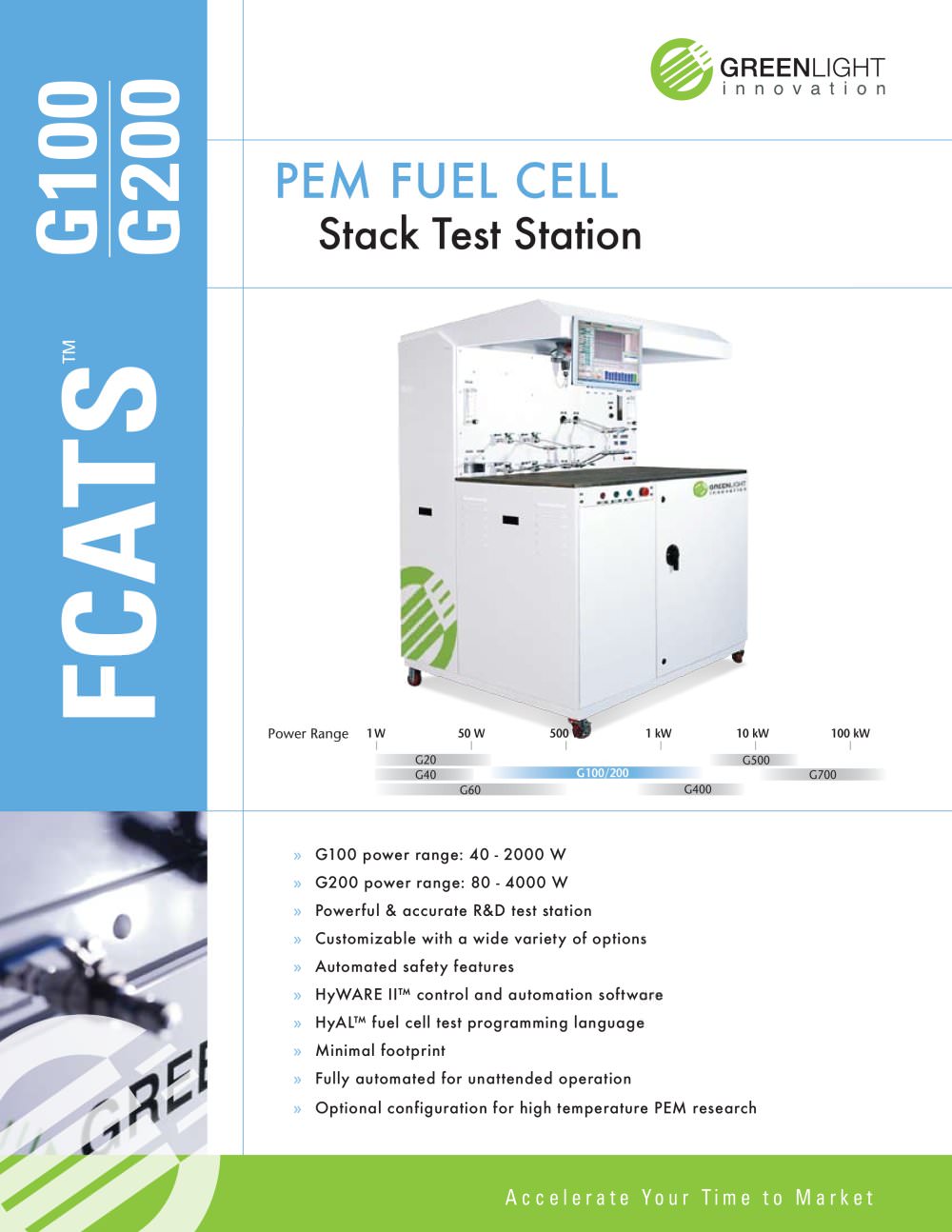

PEM fuel cell test station G100 - G200

Product catalog summary

Overview: The document provides detailed specifications and features of the G100 and G200 fuel cell test stations by Greenlight Innovation Corporation. These stations are designed for research and development (R&D) purposes, particularly for single cell and short stack testing.

Specifications:

Power Range: G100: 40 - 1000 W, G200: 80 - 4000 W.
Gas Flows: Anode flow range for G100 is 0.25 - 25 nlpm and for G200 is 0.8 - 80 nlpm. Cathode flow range for G100 is 0.8 - 80 nlpm and for G200 is 2 - 200 nlpm.
Gas Humidification: Includes dew point control and optional high temperature operation up to 110°C (230°F).
Electrical Control: Features include electrical end plate heater control and optional liquid cell cooling.
Load Bank: Maximum load is 2000W, 400A, 50V with other configurations available.
Cell Voltage Monitoring: Standard number of channels is 4, with additional channels available.
Dimensions: Approximately 1375 x 1810 x 1132 mm (54 x 72 x 45 in).

Features:

Automated safety features including hard-wired, factory software, and user-configurable interlocks.
HyWARE II™ control and automation software with HyAL™ programming language for easy script assembly.
Optional configurations for high temperature PEM research and customizable options.
Integrated fume hood with H₂ sensor and automatic N₂ purge on shutdown.
Small footprint and generous workspace with Dri-Dek® work surface.

Performance Commitment: Greenlight Innovation emphasizes their commitment to customer satisfaction and the quality of their fuel cell testing equipment.
