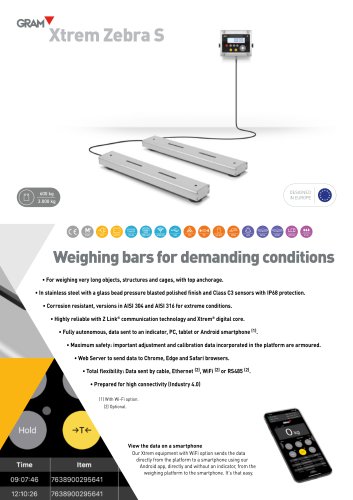

Weighing bars for demanding conditions • For weighing very long objects, structures and cages, with top anchorage. • In stainless steel with a glass bead pressure blasted polished finish and Class C3 sensors with IP68 protection. • Corrosion resistant, versions in AISI 304 and AISI 316 for extreme conditions. • Highly reliable with Z Link® communication technology and Xtrem® digital core. • Fully autonomous, data sent to an indicator, PC, tablet or Android smartphone (1). • Maximum safety: important adjustment and calibration data incorporated in the platform are armoured. • Web Server to send data to Chrome, Edge and Safari browsers. • Total flexibility: Data sent by cable, Ethernet (2), WiFi (2) or RS485 (2). • Prepared for high connectivity (Industry 4.0) (1) With Wi-Fi option. (2) Optional. View the data on a smartphone Our Xtrem equipment with WiFi option sends the data directly from the platform to a smartphone using our Android app, directly and without an indicator, from the weighing platform to the smartphone

Z-Link® connectivity • Multiple connection options with indicators, PC software and Android smartphone. • Fully digital platforms that include all data in its internal Xtrem module. • Greater safety and reliability due to digital communication between platform, indicators and PC or Android software. • Data sent directly to PC or smartphone by optional WiFi in the platform's own Xtrem module. • Connection of multiple platforms via Wi-Fi or Ethernet router, for central management. • Web Server for data capture from Chrome, Edge and Safari browsers. Protected connection with steel tube • The Z Link®...

INDUSTRIAL SCALES Advanced connectivity • Our Xtrem equipment connects directly (3) to the Ethernet, Wifi or RS485 without intermediate equipment. No limits Capable of weighing very long objects, practically no length limit (up to 4 ; longer length available optionally). Fixed assembly Optional plates allow for fixed assembly. Adaptable A high-capacity weight scale ready for installation in any structure.

Extra-long Z Link cables • The standard Z Link digital connection cable can be replaced with longer ones of 8 and 15 m. • Allows replacement in case of failure or breakage, due to its sealed connection and quick connectors. 4 m Z Link cable as standard.Optional 8m Z Link cable.Optional 15m Z Link cable. Xtrem Xtrem Xtrem Model Zebra-S Zebra-S Zebra-S

INDUSTRIAL SCALES • With CE-M Verification for legal use. • Classification or check by weight with display in 3 colours. • Tare memory for weighing tanks and silos. • Accumulation of weights with totalling. • Normal or fixed tare, with 20 memories. • Print-out with 3 lines at the top and 2 lines at the end of the ticket. • Date and time on ticket records. • Accumulation of weights with totalling. • RS232C serial connection for PC and optional printers. • 3-relay digital output and simple, single-speed dispensing. • ABS casing with IP65 protection. K3iX indicator • With CE-M Verification for legal...

INDUSTRIAL SCALES ► SOFTWARE XTREMPC Xtrem • Indicator PC software with CE-M Verification for legal use. • Scalable display size, can occupy the entire screen. • Data recording and export in CSV file. • 3 free data fields to include more information. • Copies and pastes the weight, or drags it to another window. • Enter a tare value using the numeric keypad. • Allows configuration of the balance from the same application. • Shows several devices connected to the PC simultaneously, each in its own window. • 10 times higher resolution available on the display. • Display and export of weight data...

INDUSTRIAL SCALES • Compact thermal printer. • Paper roll capacity up to 83 mm in diameter. • Connection with K3X and K3iX by cable (included). • Easy paper loading. • Detects the beginning of the label. • Front exit, protected from liquids. • Maximum capacity 90 mm diameter. • Interchangeable print head without screws. • Connection with K3X and K3iX by cable (included). • LED indication with 3 adjustable levels for product classification or luminous information on weight differences programmed in the K3X, K3iX and K3iX P indicators. • Wired connection. • Data output with USB-A female connector....

INDUSTRIAL SCALES ► INDICATOR SOFTWAREEX Link • PC application for data capture. • Imports records in CSV or compatible sheet. • PC application for viewing and recording data. • Display with adjustable dimensions - can occupy the entire PC screen width. • View and record data with date and time. • Compatible with K3X and K3iX, includes connection cable. • Smart direct connection with PC. • Enter data in any open application on the PC. • No software needed; the PC recognises the smart cable. • The data sent includes the measurement unit (g or kg). • Our Xtrem equipment is delivered with CE-M Verification...

INDUSTRIAL SCALES INDICATOR COLUMNS Painted steel base with stainless steel column for K3X • Supports K3X indicator on a 930 mm tall column. Painted steel base with stainless steel column for K3iX, K3iX P • Supports a K3iX or K3iX P indicator on a 930 mm tall column. Stainless steel base with stainless column for K3X • Supports K3X indicator on a 930 mm tall column. Stainless steel base with stainless column for K3iX, K3iX P • Supports a K3iX or K3iX P indicator on a 930 mm tall column.

• Adapts the K3X indicator for watt mounting. U-shaped bracket for watt mounting of compatible indicators. (1) They are exclusive, only one of these options can be placed. (2) They are exclusive, only one of them can be used.
