XTREME-DUTY™

Product catalog summary

Features and Benefits

Comprehensive range of hoses designed for high-pressure spraying applications.
Color-coded system based on pressure ratings to simplify hose selection.
Configurable part numbering system for easy ordering.
Durable design aimed at minimizing downtime.

Technical Specifications

Working Pressure: Available in 310 bar (4500 psi), 386 bar (5600 psi), and 500 bar (7250 psi).
Temperature Rating: Suitable for temperatures ranging from -40 to 180˚C.
Chemical Resistance: Hose cover is resistant to various solvents, acids, and bases.
Weather Resistance: Excellent resistance to oxygen, ozone, sunlight, and general weather conditions.
Electrical Properties: Conductive hose.

Quality and Performance Tests

Impulse
Burst
Cold Bend
Flexibility
Change of Length
Visual Inspections

Product Variants

Xtreme-Duty 310 bar (4500 psi) High Pressure Hose: Available in various lengths and diameters, with part numbers ranging from H42503 to H4251X.
Xtreme-Duty 386 bar (5600 psi) High Pressure Hose: Available in various lengths and diameters, with part numbers ranging from H52503 to H5501X.
Xtreme-Duty 500 bar (7250 psi) High Pressure Hose: Available in various lengths and diameters, with part numbers ranging from H72503 to H7501X.

XTR-7 Airless Spray Gun

Various models available with different handle types and trigger configurations.
Accessories include trigger kits, gun extensions, spray nozzles, repair kits, and filters.

Part Numbering System

Pressure Rating: 4 for 310 bar, 5 for 386 bar, 7 for 500 bar.
Hose Diameter: 25 for 1/4", 38 for 3/8", 50 for 1/2".
Length of Hose: 03 for 3 ft, 06 for 6 ft, 10 for 10 ft, 25 for 25 ft, 50 for 50 ft, 1X for 100 ft.

Catalog excerpts

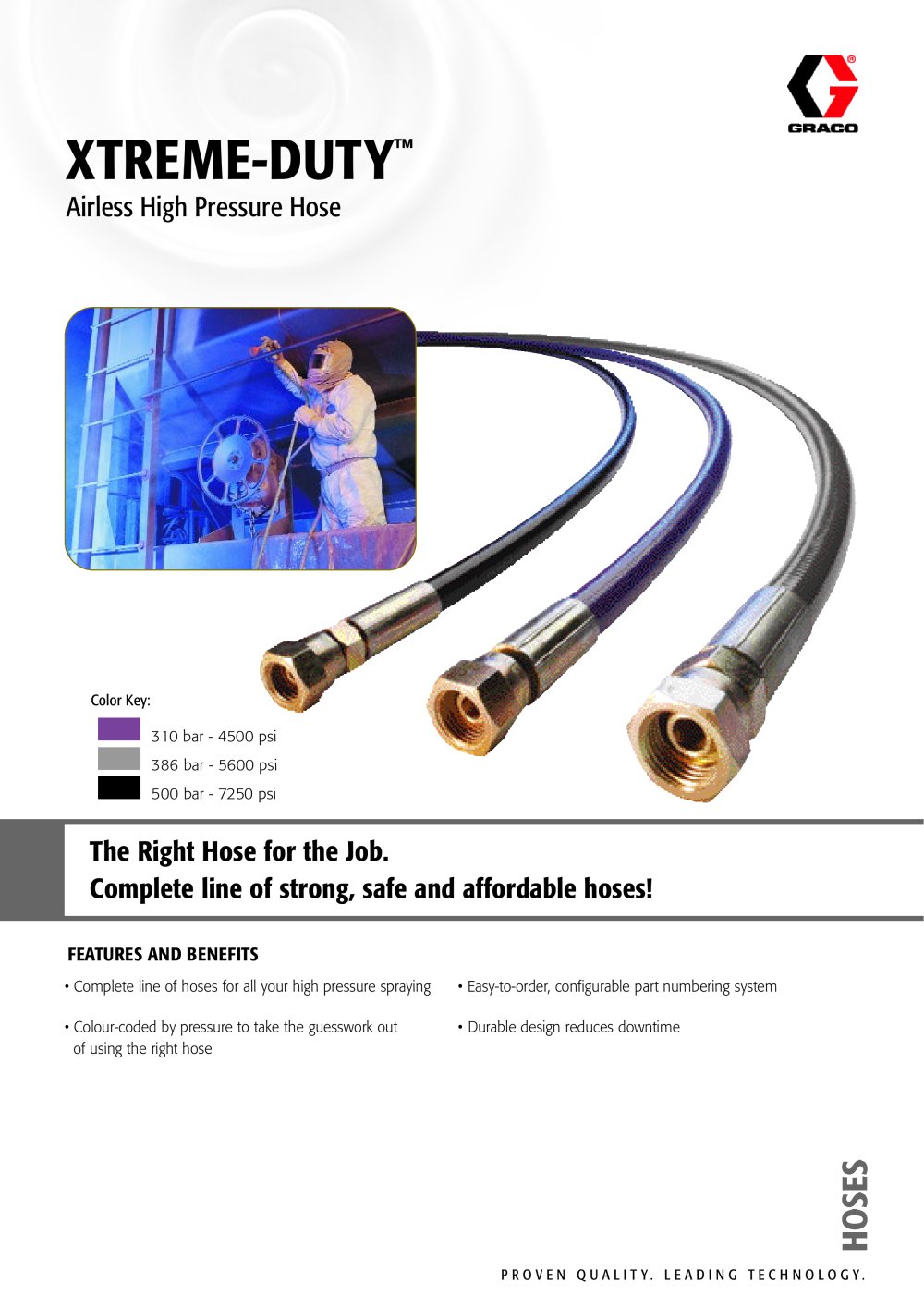

FEATURES AND BENEFITS • Complete line of hoses for all your high pressure spraying • Colour-coded by pressure to take the guesswork out of using the right hose • Easy-to-order, configurable part numbering system • Durable design reduces downtime XTREME-DUTY™ Airless High Pressure Hose The Right Hose for the Job. Complete line of strong, safe and affordable hoses! P R O V E N Q U A L I T Y . L E A D I N G T E C H N O L O G Y . Color Key: 310 bar - 4500 psi 386 bar - 5600 psi 500 bar - 7250 psi

Open the catalog to page 1

Technical Specifications Working pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310 bar (4500 psi), 386 bar (5600 psi), 500 bar (7250 psi) Temperature rating (all sizes) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . - 40 to 180°C Chemical resistance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hose cover resistant to a wide variety of solvents, acids and bases Weather resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hose...

Open the catalog to page 2
