Xtreme® Airless Sprayers

Xtreme® Airless Sprayers

Product catalog summary

Overview: The document introduces the Xtreme® Airless Sprayers, highlighting their superior performance and durability in airless spraying applications. These sprayers are designed to handle harsh conditions and demanding protective coatings, offering advanced features like material tracking and system diagnostics.

Specifications: The Xtreme sprayers come in various models with different air motor sizes and configurations to suit diverse applications. Key specifications include output per cycle, motor size, maximum working pressure, and maximum air input pressure. The sprayers are equipped with the latest NXT Air Motor technology, featuring a modular design for easy maintenance and rugged construction.

Components and Accessories: The document details various components such as replacement screen filter elements, Xtreme-Duty high-pressure hoses, and XTR-7 airless guns. It also provides information on accessories like gun extensions, spray nozzles, and repair kits.

Innovative Features: New features include the modular air valve that reduces noise and prevents stalling, integrated air controls for easy regulation, and the DataTrak™ Control system for monitoring pump diagnostics and material usage.

Ordering Information: A Smart Numbering System is provided to facilitate quick and accurate ordering of parts and accessories. The document includes examples of product identifiers and package configurations.

Technical Specifications: The document outlines the working pressure, temperature rating, chemical resistance, and weather resistance of the hoses, emphasizing their suitability for various environmental conditions.

Catalog excerpts

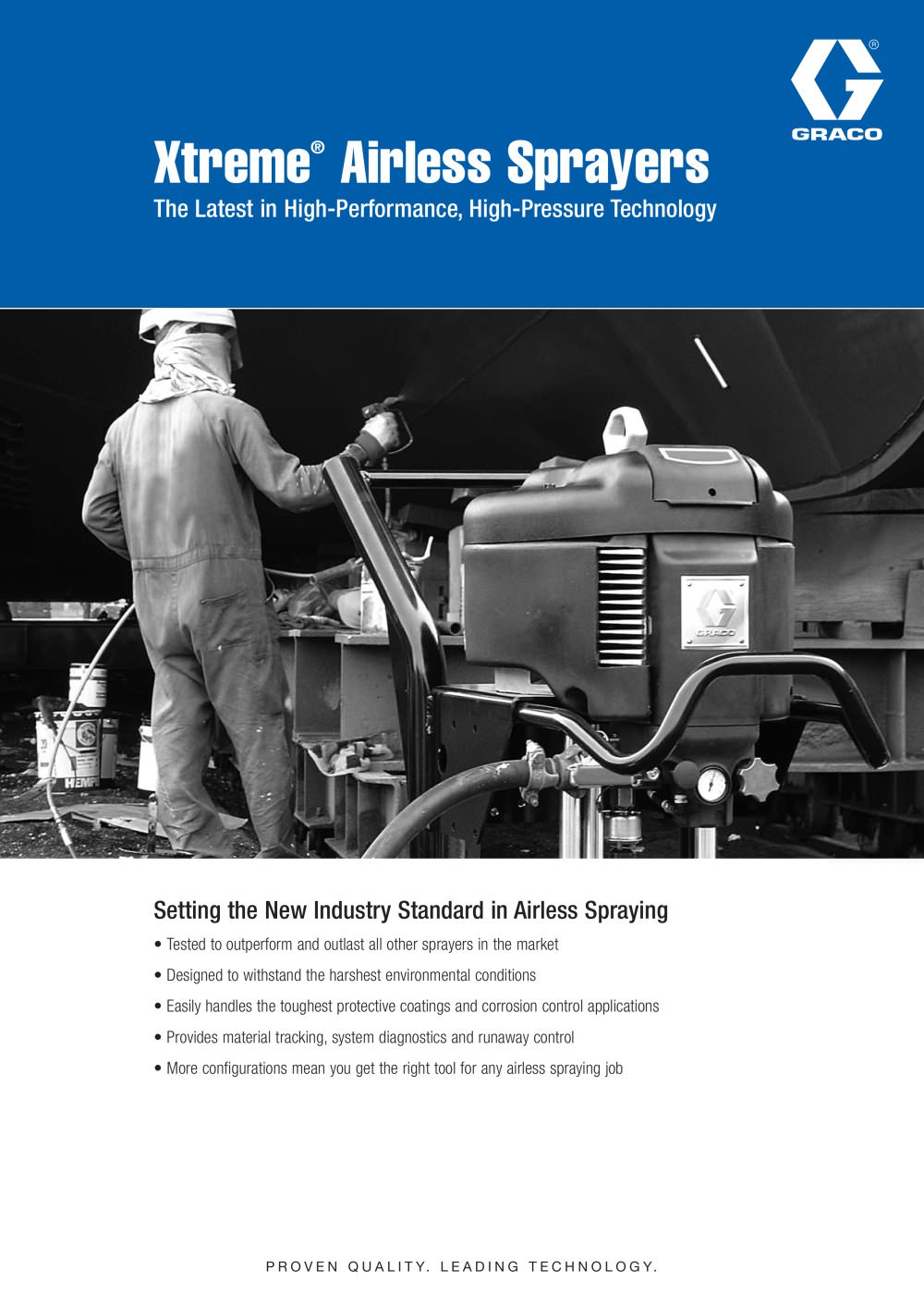

P R O V E N Q U A L I T Y. L E A D I N G T E C H N O L O G Y. Setting the New Industry Standard in Airless Spraying • Tested to outperform and outlast all other sprayers in the market • Designed to withstand the harshest environmental conditions • Easily handles the toughest protective coatings and corrosion control applications • Provides material tracking, system diagnostics and runaway control • More configurations mean you get the right tool for any airless spraying job Xtreme® Airless Sprayers The Latest in High-Performance, High-Pressure Technology

Open the catalog to page 1

P x x x C x X x x x x x L x x x C x Selecting the Right Xtreme Sprayer Three new air motor sizes and 11 models to fit all your demanding applications Xtreme Lowers Replacement Screen Filter Elements 2-Pack 25-Pack Description 224458 238436 30 mesh (595 micron) 224459 238438 60 mesh (250 micron) 224469 238440 100 mesh (149 micron) X25 X30 X35 X40 X45 X46 X50 X55 X60 X70 X90 SPECIFICATIONS XTREME SPRAYER Output per cycle 290cc 220cc 115cc 180cc 290cc 145cc 250cc 115cc 220cc 180cc 145cc Motor Size NXT 3400 NXT 3400 NXT 2200 NXT 3400 NXT 6500 NXT 3400 NXT 6500 NXT 3400 NXT 6500 NXT 6500 NXT 6500...

Open the catalog to page 2

H x x x x x Xtreme-Duty High-Pressure Hoses 4500 psi 5600 psi 7250 psi Choose the Right Hose for the Job Technical Specifications Working pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4500 psi (31MPa) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5600 psi (38,6 MPa) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . or 7250 psi (50 MPa) Temperature rating (all sizes) . . . . . . . . . . . . . . . . . . . . -40¢ª to 180¢ª F (-40¢ª to 82¢ªC) Chemical resistance ....

Open the catalog to page 3
