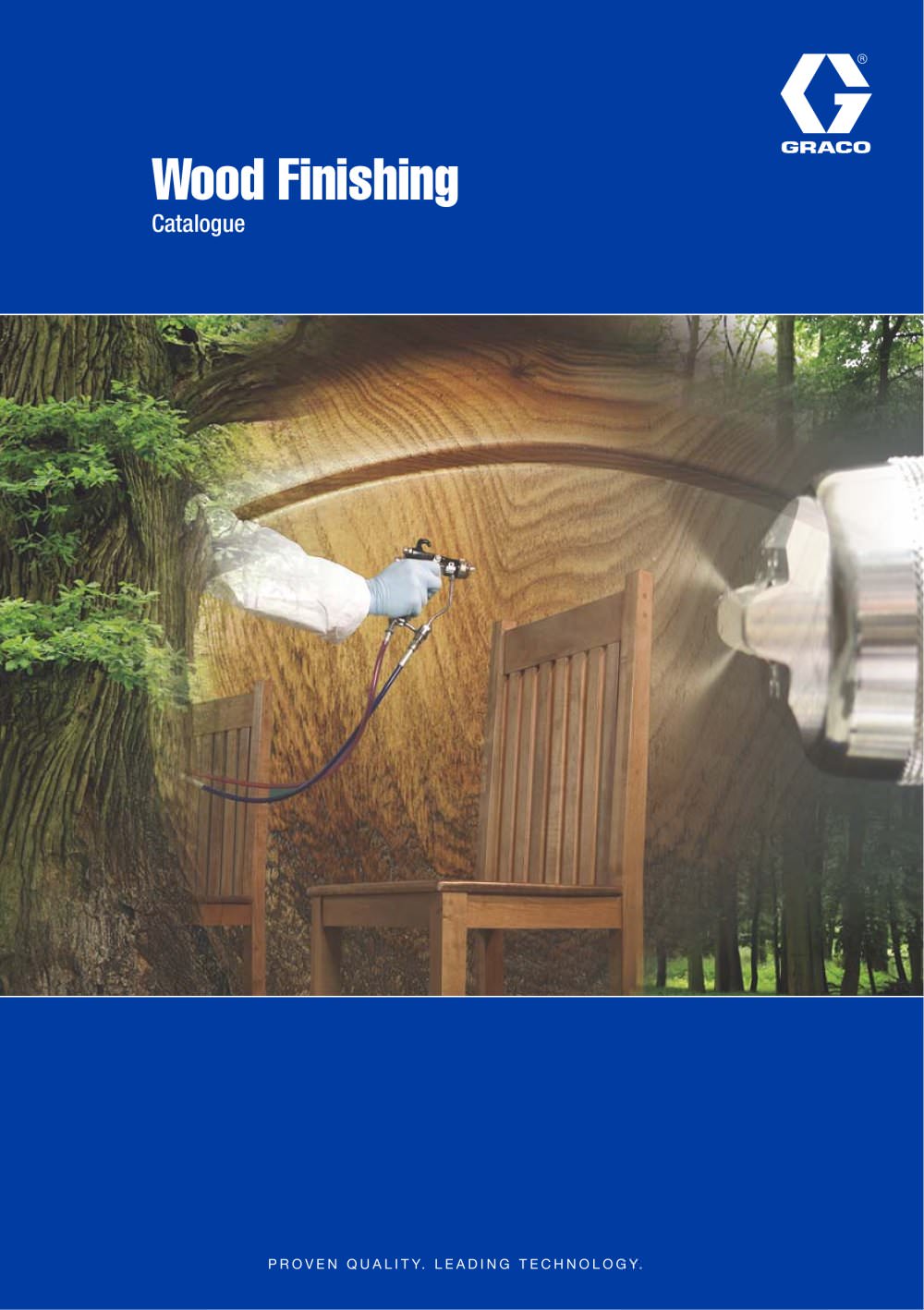

PROVEN QUALITY. L E A D I N G T E C H N O L O G Y. Wood Finishing Catalogue

 Open the catalog to page 1

The wood market becomes more and more competitive and technical. More than ever, “Time is money” and by assisting you in making the optimal choice, we help you save time. Graco has been involved in the wood market for a long time and our expertise is the result of many years of worldwide collaboration and research. We are in a continuous process of innovation by listening to the market, the end-users and by collaborating with all the major stakeholders in the wood industry. This new Wood Finishing Catalogue is especially designed to support and optimize your decision process. Selection...

 Open the catalog to page 3

Corporate Profile Founded in 1926, Graco is a world leader in fluid handling systems and components. Graco products move, measure, control, dispense and apply a wide range of fluids and viscous materials used in vehicle lubrication, construction/renovation and industrial/ automotive settings. Graco’s ongoing investment in fluid management and control continues to provide innovative solutions to a diverse global market. The Company has its corporate headquarters in Minneapolis, Minnesota, and employs approximately 2200 people worldwide. Graco common stock (ticker symbol: GGG) is listed on...

 Open the catalog to page 5

Tips & Practical Info 9 TIPS

 Open the catalog to page 9

Spray Finishing Technologies Technology Finish Quality Air Spray Atomisation through Air Pressure Fine and Smooth Finish Easy-to-use High Quality Decorative Finish Typically has 3 bar Air Pressure and about 1-2 bar Fluid Pressure at the Gun HVLP Atomisation through High Volume Close to Air Spray, if using Low Flow Rates but Low Air Pressure About 0,7 bar Atomising Air and 1-2 bar Fluid Pressure at the Gun Airless Hydraulic Atomisation: directing Fluid Quickly applies High Volumes of Coatings under High Pressure through a Controlled with Medium to Coarse Quality Orifice Fluid Pressure up to...

 Open the catalog to page 10

Fluids Applications Air Spray Low and Medium Viscosity Fluids Automotive, Metal and Wood Decorative Finishing Solvent Borne and Waterborne Coatings, All Operations that require Superior Finish Top Coats, Wash Coats, Stains, Clear Quality Coats and Adhesion Promoters HVLP Low and Medium Viscosity Fluids Wood and Metal Finishing for all kinds of Parts and Shapes Solvent Borne and Waterborne Coatings, Top Coats, Clear Coats Airless Medium to High Viscosity Fluids Large Surfaces like Metal Constructions, Storage Tanks, Ships More Protective Coatings, Solvent Borne and Waterborne Air-Assisted...

 Open the catalog to page 11

Tips Atomisation vs. flow rate chart Very Coarse Coarse Medium Fine Very Fine Airless 0,3 l/min 0,7 l/min 1,5 l/min Spray Gun Application Rate (Flow) Atomisation HVLP Air-Assisted Airless Less Overspray = saves money + protects the environment • Less material consumption • Less waste • Less spray booth cleaning • Less energy cost for air and water make-up Relative atomisation and typical flow rate comparison of atomisation methods 12 Compliant Air Spray

 Open the catalog to page 12

Your Graco distributor can help you to select the right method and product for your application. AIR ATOMIZATION Expected Overspray Rate ESTIMATED OVERSPRAY IN % ASTM : Measuring Method Variable overspray rate, depending on part size and shape HYDRAULIC ATOMIZATION ELECTROSTATIC SPRAY AIR SPRAY HVLP COMPLIANT AIRLESS AIR-ASSISTED AIRLESS AIR SPRAY AIR-ASSISTED AIRLESS 0 10 20 30 40 50 60 70 80 90 100 13 TIPS

 Open the catalog to page 13

Guns Selection Table PRO Xs™ AirPro™ PRO Xs™ AA AA Series Finex™ Legend Designed pieces, stylish furniture, frame parts ... Front panel for furniture, kitchen, boards & cabinets, etc. Tables, doors & window frames ... Designed pieces, stylish furniture, frame parts ... Front panel for furniture, kitchen, boards & cabinets, etc. Tables, doors & window frames ... 14 Dye Stains (NGR) Other Stains NGR Toner Shading SAP Equalizers Wiping Stain Glaze Spray Stain Spray & Wipe Stain Filler Washcoat Sealer Primer ... Nitrocellulose (NC) Post-Cat Pre-Cat Urethane Top Coats Sealers & Primer Type of...

 Open the catalog to page 14

Designed pieces, stylish furniture, frame parts ... Front panel for furniture, kitchen, boards & cabinets, etc. Tables, doors & window frames ... Designed pieces, stylish furniture, frame parts ... Front panel for furniture, kitchen, boards & cabinets, etc. Tables, doors & window frames ... GUNS SELECTION TABLE Intensity of use less < > more 15 Dye Stains (NGR) Top Coats Sealers & Primer Other Stains

 Open the catalog to page 15

Designed pieces, stylish furniture, frame parts ... Front panel for furniture, kitchen, boards & cabinets, etc. Tables, doors & window frames ... Designed pieces, stylish furniture, frame parts ... Front panel for furniture, kitchen, boards & cabinets, etc. Tables, doors & window frames ... Dye Stains (NGR) Other Stains NGR Toner Shading SAP Equalizers Wiping Stain Glaze Spray Stain Spray & Wipe Stain Filler Washcoat Sealer Primer ... Nitrocellulose (NC) Post-Cat Pre-Cat Urethane One Colour Plural Colour (Quick) Colour Change Top Coats Sealers & Primer Type of material 1K paint 2K paint...

 Open the catalog to page 16

Designed pieces, stylish furniture, frame parts ... Front panel for furniture, kitchen, boards & cabinets, etc. Tables, doors & window frames ... Designed pieces, stylish furniture, frame parts ... Front panel for furniture, kitchen, boards & cabinets, etc. Tables, doors & window frames ... Dye Stains (NGR) Top Coats Sealers & Primer Other Stains PACKAGES SELECTION TABLE Hand mix + Hand mix + 17 Intensity of use less < > more

 Open the catalog to page 17

Tip Selection Table How to select your tip • Select spray technology: Air-Assisted, Electrostatic or Airless • Select your application: manual or automatic • Select your appropriate tip according to the selection charts below Tip references are made out of two parts: the first 3 characters define the type (AAP, FFA, GG3), plus 3 numbers defining pattern with flow that you can find on here below selection charts. Air-Assisted RAC™ Guns Automatic and Manual Guns: tips All of these are RAC™ SwitchTips™ (Reverse-A-Clean™) Order desired tip (Part Number FFAxxx or PAAxxx) from the selection chart...

 Open the catalog to page 18
