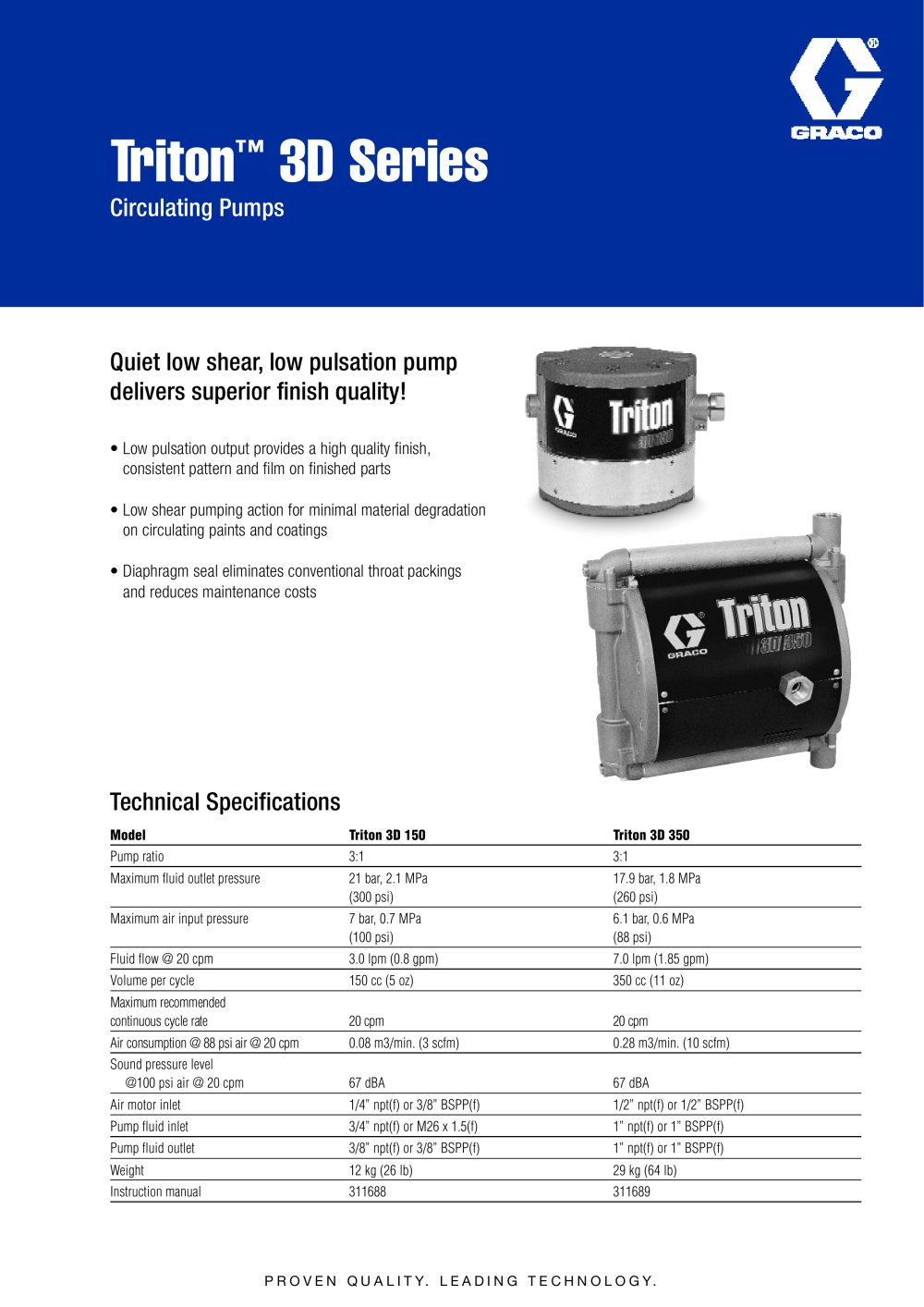

Technical Specifications Model Triton 3D 150 Triton 3D 350 Pump ratio 3:1 3:1 Maximum fluid outlet pressure 21 bar, 2.1 MPa 17.9 bar, 1.8 MPa (300 psi) (260 psi) Maximum air input pressure 7 bar, 0.7 MPa 6.1 bar, 0.6 MPa (100 psi) (88 psi) Fluid flow @ 20 cpm 3.0 lpm (0.8 gpm) 7.0 lpm (1.85 gpm) Volume per cycle 150 cc (5 oz) 350 cc (11 oz) Maximum recommended continuous cycle rate 20 cpm 20 cpm Air consumption @ 88 psi air @ 20 cpm 0.08 m3/min. (3 scfm) 0.28 m3/min. (10 scfm) Sound pressure level @100 psi air @ 20 cpm 67 dBA 67 dBA Air motor inlet 1/4” npt(f) or 3/8” BSPP(f) 1/2” npt(f) or 1/2” BSPP(f) Pump fluid inlet 3/4” npt(f) or M26 x 1.5(f) 1” npt(f) or 1” BSPP(f) Pump fluid outlet 3/8” npt(f) or 3/8” BSPP(f) 1” npt(f) or 1” BSPP(f) Weight 12 kg (26 lb) 29 kg (64 lb) Instruction manual 311688 311689 P R O V E N Q U A L I T Y. L E A D I N G T E C H N O L O G Y. Quiet low shear, low pulsation pump delivers superior finish quality! • Low pulsation output provides a high quality finish, consistent pattern and film on finished parts • Low shear pumping action for minimal material degradation on circulating paints and coatings • Diaphragm seal eliminates conventional throat packings and reduces maintenance costs Triton™ 3D Series Circulating Pumps

Open the catalog to page 1

1. Select 3D 150 or 3D 350, based on flow requirements of the circulating system. Refer to TRITON 3D150 and 3D 350 pump performance charts. 2. Select npt or BSPP thread design based on circulating system pumping requirements. 3. Order pump part number. TRITON 3D 150 TRITON 3D 150 TRITON 3D 350 TRITON 3D 350 Pump Part Number (Bare Pump Only) 253705 253704 253708 253707 Construction SST SST SST SST Thread design npt BSPP npt BSPP Seat Construction SST SST SST SST Ball guides construction Acetal Acetal Acetal Acetal Ball construction Acetal Acetal Acetal Acetal Diaphragm construction PTFE PTFE...
