Introduction
Graco introduces its new 1590 and 3150 pumps, designed for high sanitary applications, particularly in the dairy and milk industries. These pumps are certified by 3-A, ensuring compliance with industry standards.

Key Features

Flow rates range from 340 to 570 liters per minute (lpm).
Easy cleaning facilitated by a quick knockdown and 185° rotating design.
Equipped with a durable, lube-free, non-sticking air valve.

Technical Specifications
3150 High Sanitary Pump

Maximum fluid working pressure: 0.8 Mpa, 8 Bar (120 psi).
Maximum free flow delivery: 568 l/min (150 gpm).
Maximum suction lift: 5.5 m wet, 2.7 m dry (ball type); 3.0 m wet, 1.5 m dry (flapper type).
Maximum pumpable solids: 25.4 mm (ball type), 63.5 mm (flapper type).
Operating temperature varies by diaphragm material, with a maximum of 135°C (275°F) for EPDM.
Weight: 66 Kg (145 lb).

1590 High Sanitary Pump

Maximum fluid working pressure: 0.8 Mpa, 8 Bar (120 psi).
Maximum free flow delivery: 378 l/min (90 gpm).
Maximum suction lift: 8.5 m wet, 4.57 m dry.
Maximum pumpable solids: 15.9 mm.
Operating temperature varies by diaphragm material, with a maximum of 135°C (275°F) for EPDM.
Weight: 44 Kg (97 lb).

Ordering Information
Various configurations are available, including ball and flapper check types, with different materials for balls and diaphragms such as PTFE, Santoprene®, Buna-N, and Fluorelastomer.

Accessories and Kits

Conversion kits for changing between ball and flapper types.
Diaphragm kits available in multiple materials.
Leak detector kits and air valve repair kits.

Conclusion
Graco's 1590 and 3150 pumps offer robust solutions for sanitary applications, with versatile configurations and easy maintenance features, making them suitable for demanding industrial environments.

Catalog excerpts

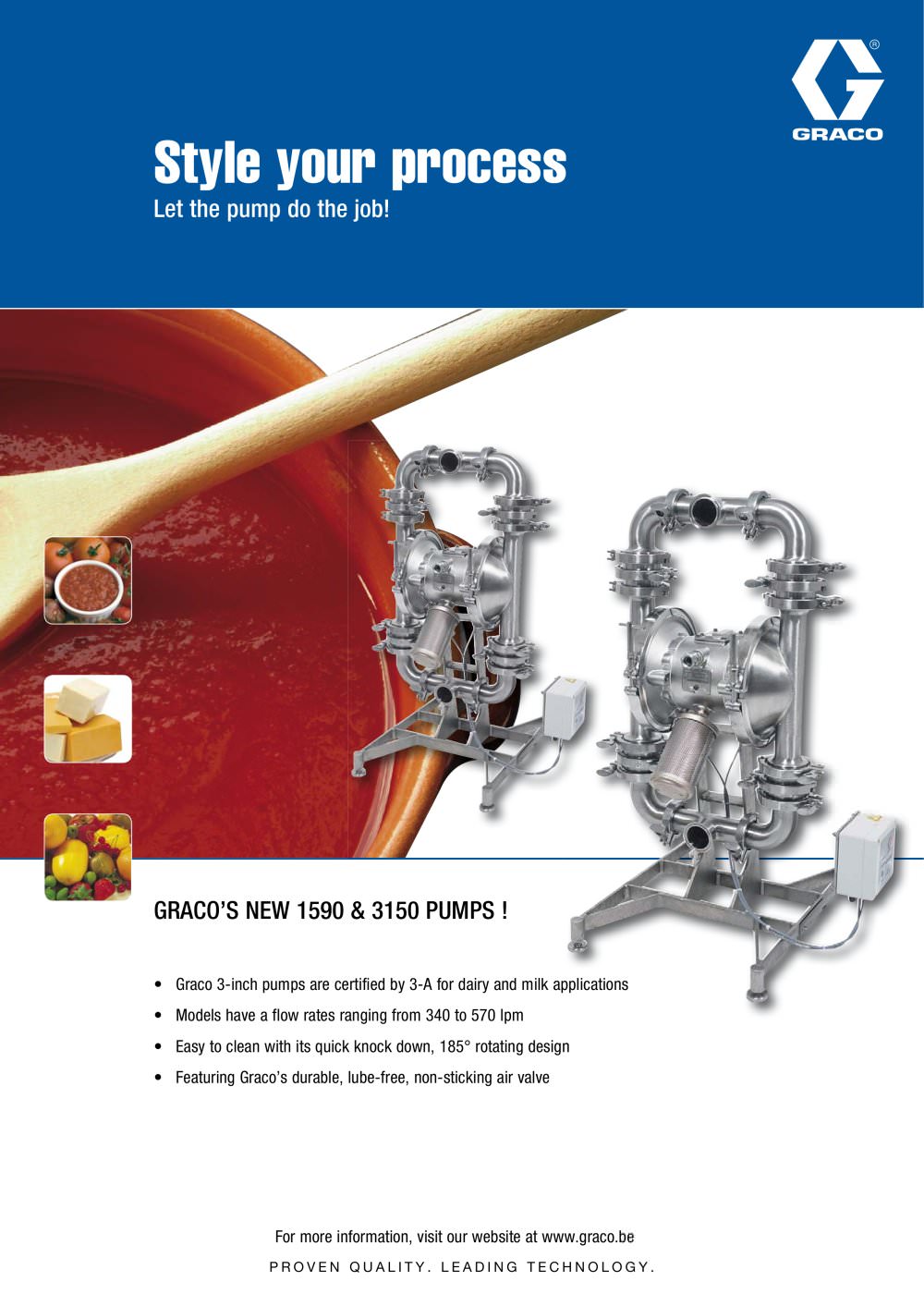

P R O V E N Q U A L I T Y . L E A D I N G T E C H N O L O G Y . GRACO’S NEW 1590 & 3150 PUMPS ! • Graco 3-inch pumps are certified by 3-A for dairy and milk applications • Models have a flow rates ranging from 340 to 570 lpm • Easy to clean with its quick knock down, 185° rotating design • Featuring Graco’s durable, lube-free, non-sticking air valve Style your process Let the pump do the job! For more information, visit our website at www.graco.be pplications n
