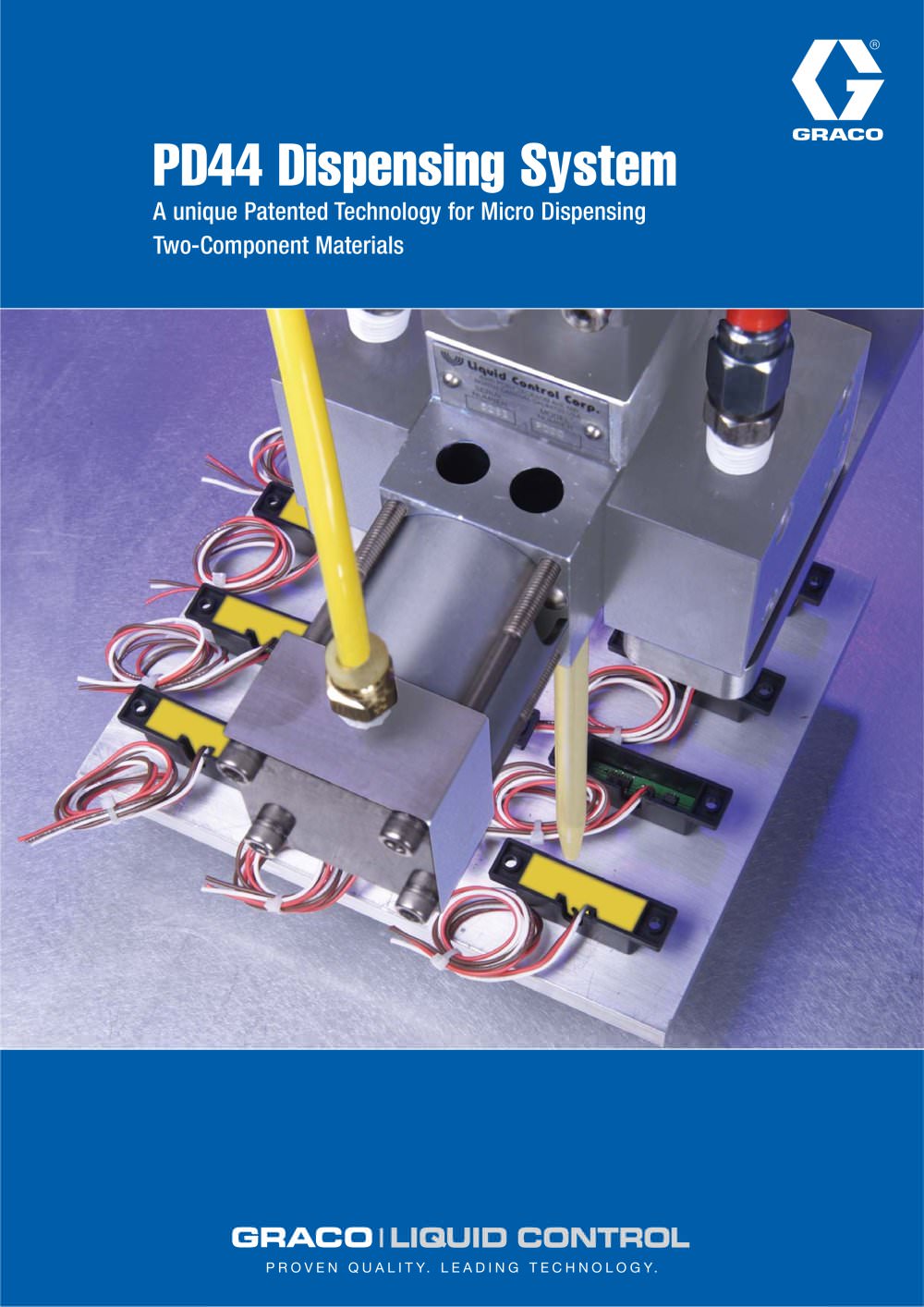

PD44 Dispensing System A unique Patented Technology for Micro Dispensing Two-Component Materials P R O V E N Q U A L I T Y. L E A D I N G T E C H N O L O G Y.
Open the catalog to page 12 The PD44 is specifically designed to dispense small amounts of water thin to paste viscosity materials from 0.005cc’s to 5cc’s. The metering rods are matched with machined seals for improved seal life. There are no material hoses between the rod pump outlets and mixer inlet which eliminates potential ratio or shot size problems (phasing) due to hose expansion and contraction. PD44 Dispensing System Key Industries and Applications Applications 4 Potting 4 Gasketing 4 Sealing 4 Encapsulation 4 Syringe Filling Industries 4 Automotive Electronics 4 Consumer Electronics 4 Medical 4 Sporting...
Open the catalog to page 23 Materials remain separate until injected into static mixer The patented PD44 valve features balanced inlet/outlet spool assemblies that do not displace material while shifting from the reload to the dispense position. This allows pressure feeding of the “A” and “B” components up to 1200 psi during reloading while isolating the materials from the mixer inlet. Upon shifting to the dispense position without any material displacement, an accurate volume of “A” and “B” components is injected into the disposable mixer inlet by rod displacement metering technology. Reload Spools shift to the...
Open the catalog to page 34 Meter, mix and dispense shots from 0.005 to 5 cc's and handle material ratios from 1:1 to 25:1. Patented PD44 Metering Valves Metering Drives PD44 Valve Material Feed Inlet Block Balanced Inlet/Outlet Spool/Sleeve Assembly for accurate reloading and dispensing Upgraded Sensors for faster response and reliable position control for long term performance Metering Drive Shroud and disposable mixer Machined Seals for longer cycle life “A” and “B” Precision Metering Rods for accurate and repeatable volume ratio control Manual control of shot size Pneumatically-driven valves have micrometer...
Open the catalog to page 45 PD44 Controller • Simple operator interface for day to day operation • Password protection for added security • Anti-gel/purge timer to protect static mixer from curing Shot size screen • Programmable shot sizes for fast operator set-up • Shot size storage for quick change between parts Status screen • System monitoring for productive planning • Scheduling preventative maintenance Pneumatic controller Electric controller Controller Screen Shots Used for Manual and Programmable Shot Size Control Sensors in the valve monitor the position of the spool assemblies and metering rods. These...
Open the catalog to page 56 Complete System PD44 with pneumatic controller, manual micrometer shot adjuster and dual one gallon transfer pump feed package. Systems Cartridge Feed Systems Cartridges of various sizes can be placed in pressurized retainers to allow low to medium viscosity materials to transfer to the PD44 valve. Transfer Pumps and Rams Low to high viscosity materials can be pumped directly from bulk containers using pail and drum rams, transfer pumps and feed hoses as required. Reservoir Tanks Various sized reservoir tanks can be used to transfer low to medium viscosity materials to the PD44 valve....
Open the catalog to page 67 “A” and “B” Metering Rods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A wide selection of standard size metering rods are available depending on the ratio and shot sizes desired. Custom sized metering rods can be machined to accommodate most material ratios. The standard construction of the main body is 303/304 stainless steel. The standard construction of the metering assembly is a nitrided tool steel rod and a nitrided tool steel tube. Optional materials include stainless steel rod with UHMW polyethene tube and a tungsten rod with UHMW polyethylene tube....
Open the catalog to page 7Founded in 1926, Graco is a world leader in fluid handling systems and components. Graco products move, measure, control, dispense and apply a wide range of fluids and viscous materials used in vehicle lubrication, commercial and industrial settings. The company’s success is based on its unwavering commitment to technical excellence, world-class manufacturing and unparalleled customer service.Working closely with qualified distributors, Graco offers systems, products and technology that set the quality standard in a wide range of fluid handling solutions. Graco provides equipment for spray...
