Paint finishing spray packages

Catalog excerpts

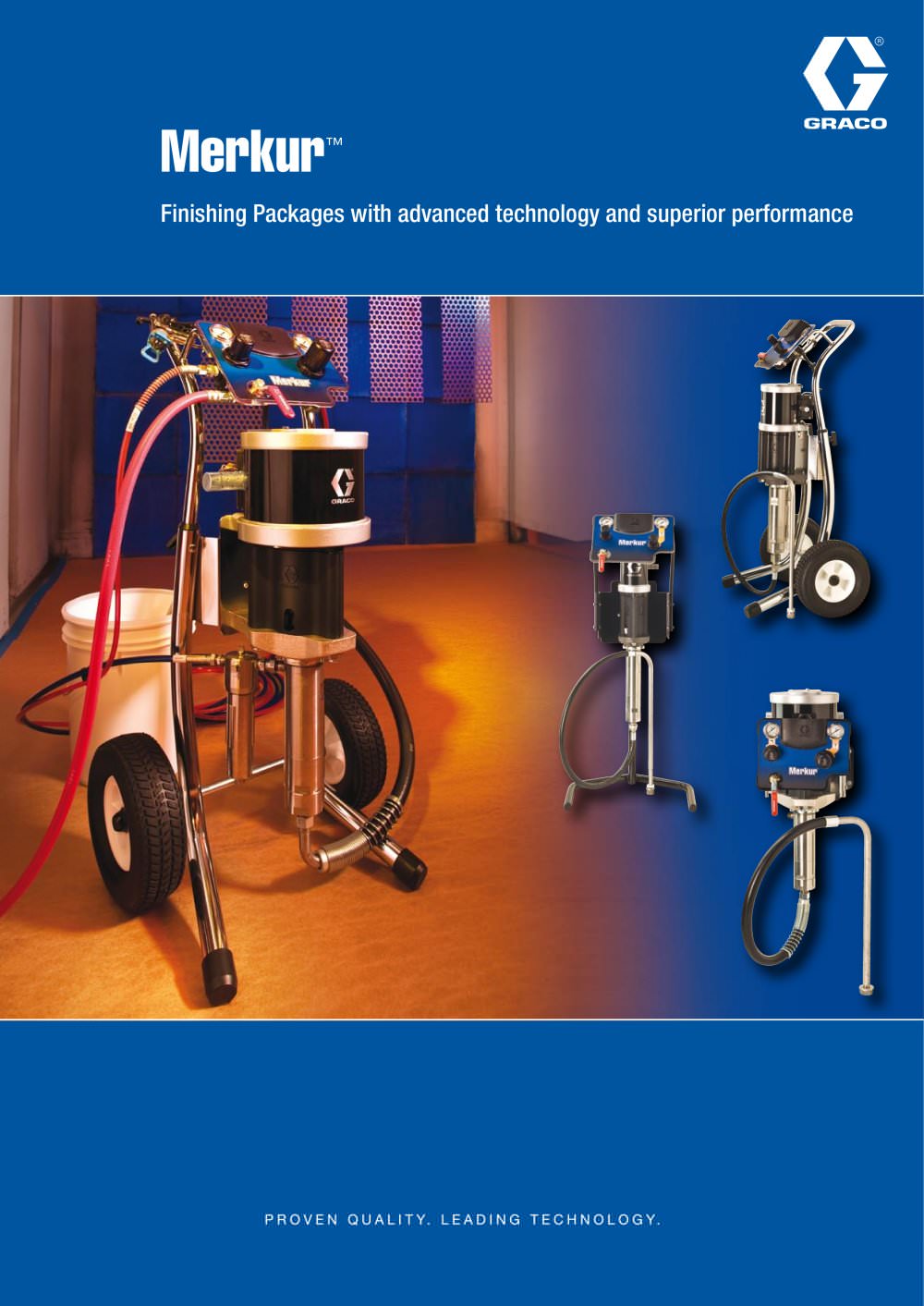

Merkur™ Finishing Packages with advanced technology and superior performance

 Open the catalog to page 1

Monitor and protect your pump with fully integrated local monitoring system! • Easy-to-set runaway protection, where you set the cycle rate limit • Pump diagnostics help advise when to maintain the pump • Resettable batch counter tracks material usage and maintenance schedule Advanced Technology. Superior Performance. Cost Management Run-away auto stop with DatatrakTM Ergonomy Controls plate is at operator heigh and cover all Commands: air, material and datatrak monitoring Efficiency Low air consumption for increased efficiency thanks to the new air motor design Protection and safety Throat...

 Open the catalog to page 2

Pump Lower • Easy-to-flush design allows fast colour changes and reduced solvent usage • 300 series stainless steel pump construction provides long-lasting durability • Designed for improved serviceability with fewer parts and lower cost of ownership Throat and Piston Packings Self-adjusting and spring-loaded so no adjustments are needed to maintain long packing life Coil spring design ensures easiest flushability Throat Seal Liquid (TSL) Level Indicator Extended wet cup for external filling and monitoring of TSL levels Air Valve Provides smooth and rapid changeover 360° Inlet Swivel Makes...

 Open the catalog to page 3

0 5 10 15 20 25 30 35 40 45 50 0.00 1.5 (0.40) 3.0 (0.80) 4.5 (1.20) 6.0 (1.60) 7.5 (2.00) 9.0 (2.40) 10.5 (2.80) Pressure Ratio Fluid Flow in lpm (gpm) at 60 cpm Merkur 15:1 Merkur 24:1 Merkur 18:1 Merkur 28:1 Merkur 23:1 Merkur 36:1 Merkur 10:1 Merkur 30:1 Merkur 48:1 Merkur 15:1 Merkur 15:1 Merkur 30:1 Merkur 45:1 The correct flows at the right pressures to fit all your spraying needs. With 4 air motor sizes and 13 different models to choose from, Merkur fine finish packages are designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes...

 Open the catalog to page 4

Making the Right Choice for your Application Combine a Merkur pump with a variety of guns and accessories, and you’ll be on your way to selecting the package that’s right for you! Select a Spray Technology XTR Airless Gun PRO Xs Air-Assisted Electrostatic AA Series Air-Assisted Gun Determine the Accessories that are right for you! Hopper Heater Filter, with or without drain valve Siphon Hose Select a Mounting Configuration Cart Mount Wall Mount Stand Mount

 Open the catalog to page 5

Ordering Information Merkur 45:1 3 lpm (0.89 gpm) - 50cc lower G45W17 • • * • G45W18 • • • * • G45W15 • • • • G45W16 • • • • • G45C13 • • • G45C15 • • • • G45C16 • • • • • G45C19 • • * • G45C20 • • • * • G45C21 • • * • G45C17 • • • • G45C18 • • • • • Merkur 48:1 4.5 lpm (1.29 gpm) - 75cc lower G48W07 • • * • G48W08 • • • * • G48W13 • • • • G48W14 • • • • • G48W15 • • • • G48W16 • • • • • G48C07 • • * • G48C08 • • • * • G48C09 • • • G48C11 • • • • G48C12 • • • • • G48C13 • • • • G48C14 • • • • • Merkur Assembly Part No. Wall Mount 2 Wheel Cart Mount Data Trak G40 Gun G40 RAC Gun Fluid Filter...

 Open the catalog to page 9

Refer to the spray gun brochure for additional model numbers. All guns include tip of choice. 287926 G15 Carbide Air-Assisted Spray Gun 249242 G40 Air-Assisted Spray Gun 249238 G40 RAC Air-Assisted Spray Gun XTR501 XTR-5 Airless Spray Gun 244573 PRO Xs 4AA Smart Electrostatic Spray Gun Accessories 256410 Hopper 5l ( 1.5 gal ) polyethylene 243340 Pail Cover with Agitator Use to agitate material in a 18.9 l (5 gal) pail 222121 Fluid Regulator, Stainless Steel Maximum working pressure: 103 bar, 10.3 MPa (1500 psi) Regulator range: 10-28 bar, 1-8.2 MPa (150-1200 psi) 24A587 Pump Outlet Fluid...

 Open the catalog to page 13

Technical Specifications Merkur Merkur Merkur Merkur Merkur Merkur Merkur Pump Ratio 10:1 15:1 15:1 15:1 18:1 23:1 24:1 Fluid Flow @ 60 cpm 4.5 lpm (1.2 gpm) 1.5 lpm (0.4 gpm) 3 lpm (0.8 gpm) 9 lpm (2.4 gpm) 7.5 lpm (2 gpm) 6 lpm (1.6 gpm) 9 lpm (2.4 gpm) Volume per Cycle (cc) 75 cc (2.5 oz) 25 cc (0.8 oz) 50 cc (1.7 oz) 150 cc (5 oz) 125 cc (4 oz) 100 cc (3.4 oz) 150 cc (5 oz) Maximum Fluid Outlet Pressure 69 bar (1000 psi) 103 bar (1500 psi) 103 bar (1500 psi) 103 bar (1500 psi) 124 bar (1800 psi) 158 bar (2300 psi) 165 bar (2400 psi) Maximum Air Inlet Pressure 7 bar (100 psi) 7 bar (100...

 Open the catalog to page 14

Technical Specifications Merkur Merkur Merkur Merkur Merkur Merkur Pump Ratio 28:1 30:1 30:1 36:1 45:1 48:1 Fluid Flow @ 60 cpm 7.5 lpm (2 gpm) 1.5 lpm (0.4 gpm) 4.5 lpm (1.2 gpm) 6 lpm (1.6 gpm) 3 lpm (0.8 gpm) 4.5 lpm (1.2 gpm) Volume per Cycle (cc) 125 cc (4.2 oz) 25 cc (0.8 oz) 75 cc (2.5 oz) 100 cc (3.3 oz) 50 cc (1.7 oz) 75 cc (2.5 oz) Maximum Fluid Outlet Pressure 192 bar (2800 psi) 206 bar (3000 psi) 206 bar (3000 psi) 248 bar (3600 psi) 310 bar (4500 psi) 331 bar (4800 psi) Maximum Air Inlet Pressure 7 bar (100 psi) 7 bar (100 psi) 7 bar (100 psi) 7 bar (100 psi) 6.2 bar (90 psi)...

 Open the catalog to page 15

Founded in 1926, Graco is a world leader in fluid handling systems and components. Graco products move, measure, control, dispense and apply a wide range of fluids and viscous materials used in vehicle lubrication, commercial and industrial settings. The company’s success is based on its unwavering commitment to technical excellence, world-class manufacturing and unparalleled customer service. Working closely with qualified distributors, Graco offers systems, products and technology that set the quality standard in a wide range of fluid handling solutions. Graco provides equipment for spray...

 Open the catalog to page 16
