MD2 Dispense Valve

MD2 Dispense Valve

Product catalog summary

Overview
The document provides detailed information about the Graco MD2 Dispense Valve, designed for accurate dispensing and mixing of plural-component sealants and adhesives. It emphasizes minimizing maintenance time and costs while maximizing dispense time, featuring a modular design adaptable to various installation needs.

Key Features

Minimized maintenance with fewer parts and easy cleaning.
Modular design for different installation requirements.
No unique tools required for maintenance.
Handles a wide range of materials.

Valve and Gun Options

Various valve options including soft and hard seats with adjustable and non-adjustable snuff-back.
Manual gun options with air-actuated and electrically-actuated triggers and levers.

Technical Specifications

Maximum fluid pressure: 207 bar (3000 psi).
Maximum cylinder air pressure: 8.4 bar (120 psi).
Minimum air cylinder actuating pressure: 2.8 bar (40 psi).
Maximum working fluid temperature: 60˚C (140˚F).
Wetted parts include stainless steel, carbide, UHMWPE, acetal, PEEK, PTFE.
Gun weight varies slightly between models.
Dimensions: 168.7 mm L x 59 mm W x 57 mm D.

Additional Features

Independent air cylinder for improved mean time to repair (MTTR).
All-SST wetted section for material compatibility.
Grease isolation chamber for moisture-sensitive materials.
Adjustable inlet position for installation flexibility.
Chromex™ shafts for extended life with abrasive materials.
Adjustable snuff-back control for precise material dispensing.

Contact Information
Graco N.V., Industrieterrein Oude Bunders, Slakweidestraat 31, B-3630 Maasmechelen. Tel: +32 (89) 770 700, Fax: +32 (89) 770 777, Email: [email protected], Website: http://www.graco.be

Catalog excerpts

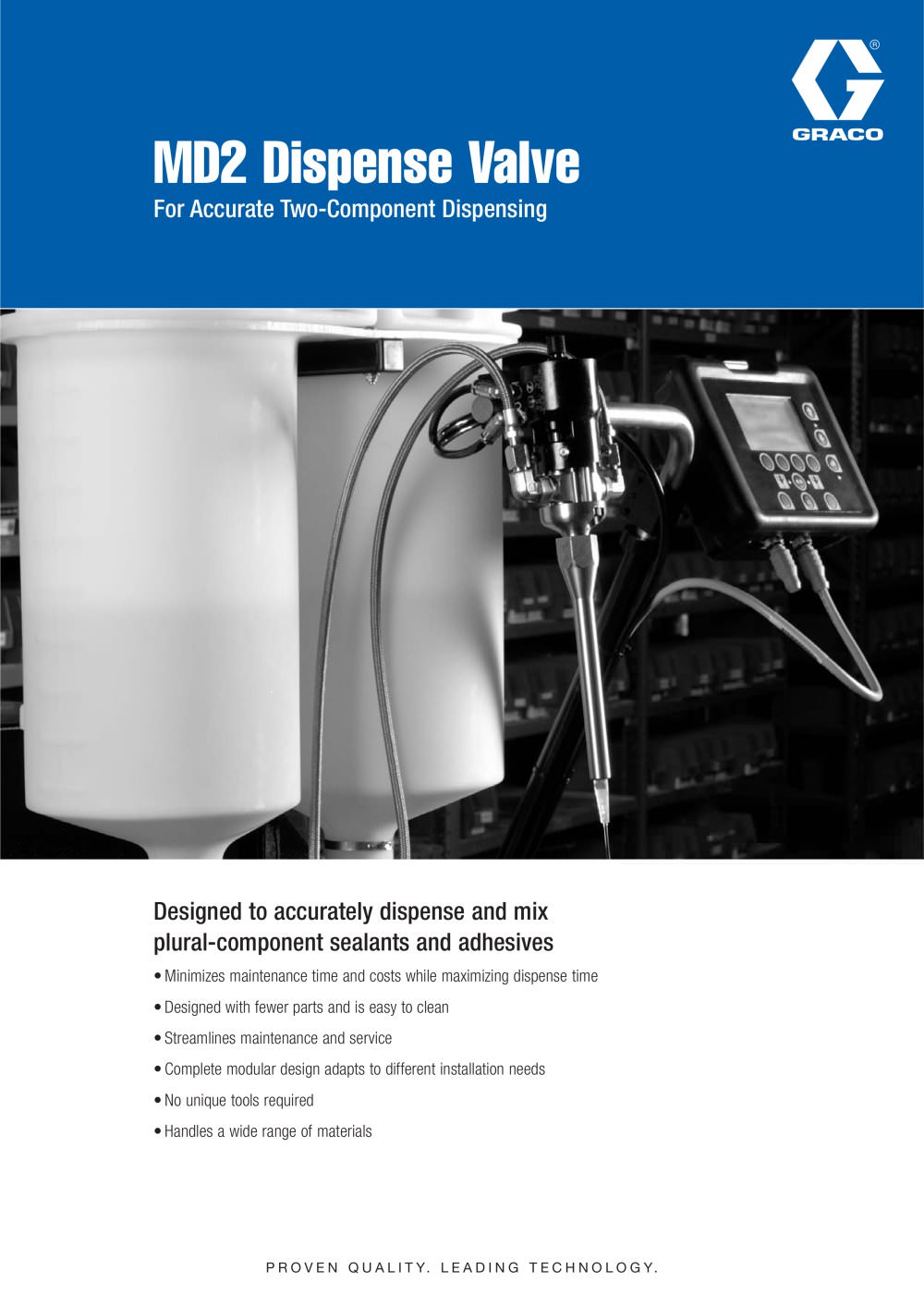

P R O V E N Q U A L I T Y. L E A D I N G T E C H N O L O G Y. Designed to accurately dispense and mix plural-component sealants and adhesives •Minimizes maintenance time and costs while maximizing dispense time • Designed with fewer parts and is easy to clean • Streamlines maintenance and service • Complete modular design adapts to different installation needs • No unique tools required • Handles a wide range of materials MD2 Dispense Valve For Accurate Two-Component Dispensing

Open the catalog to page 1

Graco MD2 Dispense Valve Valve Options 255179 1:1 soft seat, adjustable snuff-back 255180 1:1 hard seat, non-adjustable snuff-back 255181 Wide ratio, soft seat, adjustable snuff-back 255182 Wide ratio, hard seat, non-adjustable snuff-back Manual Gun Options 255442 1:1 hard seat, air-actuated gun, trigger 255445 Wide ratio, hard seat, air-actuated gun, trigger 255443 1:1 hard seat, electrically-actuated counter-balanced valve, trigger 255446 Wide ratio, hard seat, electrically-actuated gun, trigger 255444 1:1 hard seat, electrically-actuated counter-balanced valve, lever 255447 Wide ratio, hard...

Open the catalog to page 2
