Fusion®

Catalog excerpts

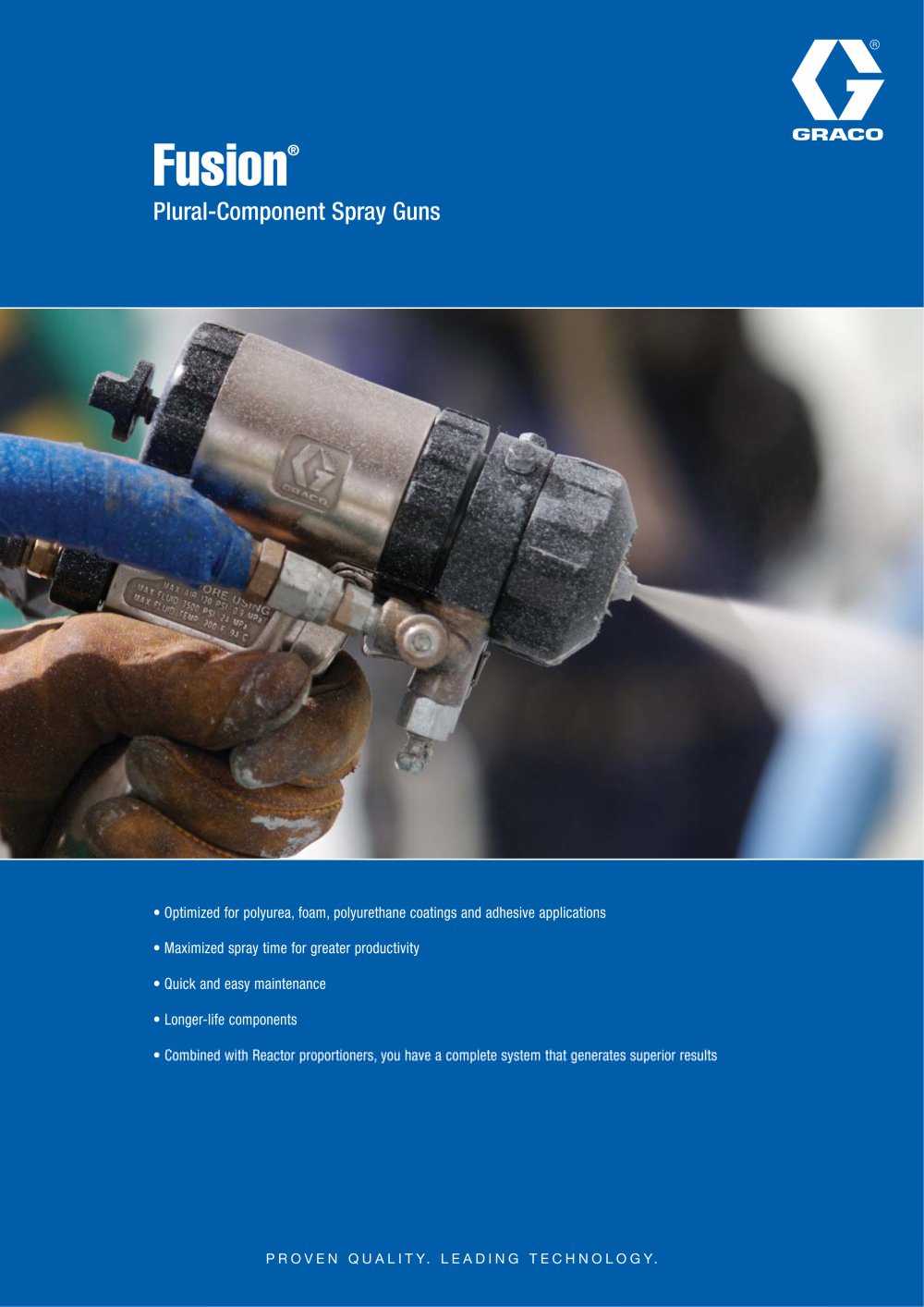

Fusion® Plural-Component Spray Guns • Optimized for polyurea, foam, polyurethane coatings and adhesive applications • Maximized spray time for greater productivity • Quick and easy maintenance • Longer-life components • Combined with Reactor proportioners, you have a complete system that generates superior results P R O V E N Q U A L I T Y. L E A D I N G T E C H N O L O G Y.

 Open the catalog to page 1

Fusion Mechanical-Purge Superior mixing • Smoother finish and better atomization • Widest range of flow rates • Low output for thin mil applications • Graco Fusion MP gun offers advanced features compared to other competitive mechanical-purge guns Graco® Fusion® plural-component spray guns apply everything from foam to coatings. Built with an advanced design and durable components, Fusion guns provide long life and a better mix. Combined with Reactor® Proportioners, you have a complete system that generates superior application results. Use Fusion for: • Foam • Polyurea • Polyurethane...

 Open the catalog to page 2

Maximum spray time Reduced clean-up time Longer component life Minimum repair and maintenance costs Improve your productivity with a Fusion gun Remove the front cap for easy access Remove the fluid section from the gun Fewer parts, less maintenance Fusion – Designed with fewer parts for easy maintenance Hand-tight connections reduce the need for tools, making maintenance quick and easy 3 Easy to Use. Easy to Maintain. So easy to use, you’ll never want to own another gun

 Open the catalog to page 3

4 Improved mixing and spray pattern • Advanced Cyclone-Mix™ Chamber engineering optimizes material mix and reduces overspray • Provides increased material yield and performance Durable, long-life components • Fusion’s mix chambers and side seals are built to last • Hardened stainless steel mix chambers • Side seals (PolyCarballoy or stainless steel) are designed for longer seal life – lets you spray a wider range of materials • Solvent-resistant parts withstand the effects of industry standard chemicals Cyclone-Mix Chambers for optimal fluid flow and mixing Quick-Release Fluid Housing...

 Open the catalog to page 4

5 Easy air-blast cleaning • Air-blast tip cleaning reduces build-up and tip clogging Daily maintenance in 10 seconds flat! • Quick-Shot™ grease port reduces end-of-day maintenance to seconds • At the end of the day, simply shoot grease into the head of the gun • Purged air carries grease mist through the air chamber, impingement ports and chamber nozzle, coating all surfaces to prevent two-component curing • Hand-tight connections reduce the need for tools, making maintenance quick and easy FUSION AIR-PURGE, ROUND PATTERN 241 (24.1, 3500) 207 (20.7, 3000) 174 (17.4, 2500) 138 (13.8, 2000)...

 Open the catalog to page 5

6 Fusion MP does it all • Fusion MP handles from very low output, thin mil applications to large, high flow, high output applications just by changing the mix module and tip Improved mixing and better physical properties • Advanced mix module and tip design provides optimal mix and material properties PolyCarballoy Mix Module For proven long life CeramTip™ Is durable and easy to change Purge Rod Easy-to-set, one piece rod for longer life Adjustable Front Packing PolyCarballoy Mix Module Advanced Computational Fluid Dynamics (CFD) is utilized to demonstrate fluid flow and mixing as it moves...

 Open the catalog to page 6

7 Sprays 10 times more material! • PolyCarballoy mix modules for proven long life • CeramTip is durable and easy to change • Significantly reduces repair and maintenance costs Easy mechanical cleaning • Mix modules and tips are cleaned with a drill bit (supplied) Setting the purge rod • No complex purge rod adjustments • One step sets the purge rod – you’re ready to spray! FUSION MECHANICAL-PURGE, ROUND PATTERN 241 (24.1, 3500) 207 (20.7, 3000) 174 (17.4, 2500) 138 (13.8, 2000) 103 (10.3, 1500) 69 (6.9, 1000) 35 (3.5, 500) 0 1.9 3.8 5.7 7.6 9.5 11.4 13.2 14.1 17.0 18.9 (0.5) (1) (1.5) (2)...

 Open the catalog to page 7

8 Mix Pattern at Polyurea Chamber/ 60 cm (24 in) in lpm P O LY U R E A Fusion Gun* Tip from target 140 bar EXP1 HXP2 EXP2 HXP3 FUSION AIR-PURGE ROUND 246099 AR2020 127 mm (5 in) 1.9 lpm • • • • 246100 AR2929 203 mm (8 in) 4.1 lpm • • • • NA AW2828 381 mm (15 in) 4.1 lpm • • • • 248617 AR3737 227 mm (9 in) 4.9 lpm • • • NA AW3333 381 mm (15 in) 4.9 lpm • • • 246101 AR4242 279 mm (11 in) 6.1 lpm • • • 249529 AW3939 406 mm (16 in) 6.1 lpm • • • 246102 AR5252 305 mm (12 in) 9.1 lpm • 249530 AW4646 457 mm (18 in) 9.1 lpm • 246103 AR6060 356 mm (14 in) NA AW5757 457 mm (18 in) 246104 AR7070 381...

 Open the catalog to page 8

9 Foam kg/min F OA M 70 bar A20 E20 H25 E30 H40 1.5 kg/min • • • • • 3.1 kg/min • • • • • 3.1 kg/min • • • • • 3.6 kg/min • • • • • 3.6 kg/min • • • • • 4.1 kg/min • • • • • 4.1 kg/min • • • • • 6.4 kg/min • • • • • 6.4 kg/min • • • • • 8.6 kg/min • • • 8.6 kg/min • • • 11.3 kg/min • • 11.3 kg/min • • 15.8 kg/min • 15.8 kg/min • 1.5 kg/min • • • • • 3.1 kg/min • • • • • 4.1 kg/min • • • • • 5.4 kg/min • • • • • 1.8 kg/min • • • • • 3.1 kg/min • • • • • 3.6 kg/min • • • • • 4.5 kg/min • • • • • 6.8 kg/min • • • • • 10.8 kg/min • • 13.6 kg/min • • 17.7 kg/min • 0.7 kg/min 0.9 kg/min 1.1...

 Open the catalog to page 9

10 FUSION® AP AIR-PURGE GUN FUSION® AP Foam and coatings 18 kg/min (40 lb/min) 1.4 kg/min (3 lb/min) 240 bar (24.0 MPa, 3500 psi) 9 bar (0.9 MPa, 130 psi) 93°C (200°F) 1.13 kg (2.5 lb) 1/4 npt quick disconnect nipple -5 JIC; 1/2-20 UNF swivel -6 JIC; 9/16-18 UNF swivel Aluminum, stainless steel, plated carbon steel, carbide, brass, chemically resistant O-rings 19 x 20.6 x 8.4 cm (7.5 x 8.1 x 3.3 in) 309550 Residential foam insulation, roofing, concrete, waterproofing and other polyurethane foams and elastomeric coatings Model Materials sprayed Maximum Output Minimum Output Maximum Fluid...

 Open the catalog to page 10
