E-Flo

Product catalog summary

Technical Specifications Overview:
The document provides detailed specifications for the E-Flo series of electric circulating pumps, including models 4000, 3000, 2000, and 1500. Key specifications include maximum fluid pressure, flow rate at 20 cycles per minute (cpm), volume per cycle, inlet/outlet size, weight, and dimensions. Each model varies in these specifications, with the E-Flo 4000 offering the highest performance metrics.

Key Features:

Energy-efficient electric drive unit with the benefits of a piston pump.
Dual midrange High-Flo stainless steel lowers for reduced pressure variation.
Online maintenance capabilities for simplified repair and reduced downtime.
Graco programmed Variable Frequency Drive (VFD) for less pressure variation and integrated overpressure protection.
Pneumatically controlled Back Pressure Regulator (BPR) for energy savings and material integrity.

Standard and Optional Kits:
The document lists various kits available for each pump model, including UHMWPE piston seal kits, Chromex and Maxlife piston rods, and stainless steel lowers. Optional kits include PTFE piston and throat seal kits, leather throat seal kits, and various fittings and accessories.

Ordering Information and Accessories:

Accessories include floor stands, VFD kits for different voltages, back pressure regulators, local I/O boxes, Ethernet upgrade kits, and sensor circuit kits.
Specific part numbers are provided for each accessory and kit.

Manuals:
Several manuals are available for operations, installation, repair parts, VFC, and pneumatic BPR, each identified by a specific manual number.

Contact Information:
The document concludes with contact details for Graco N.V., including address, phone, fax, email, and website.

Catalog excerpts

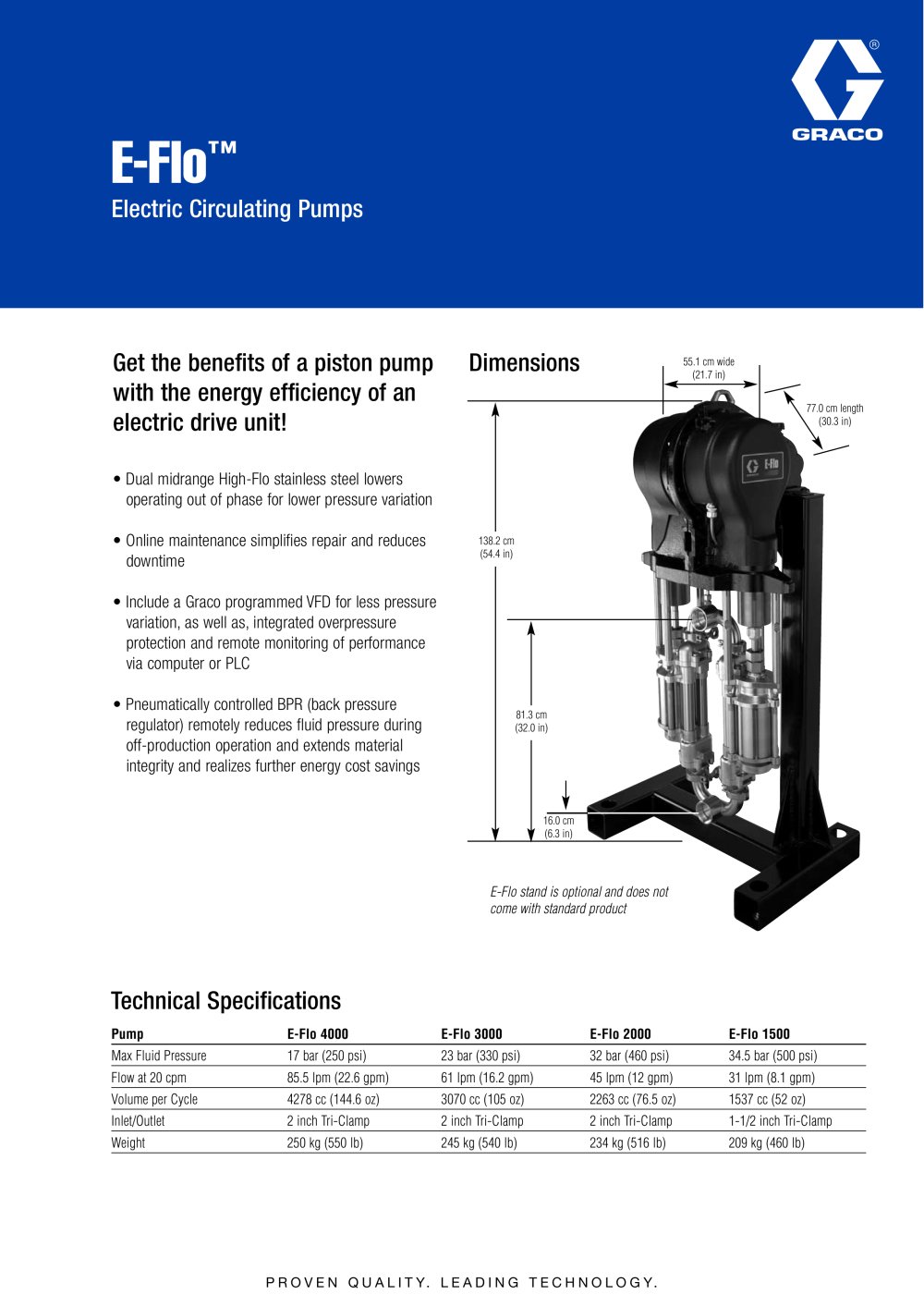

Technical Specifications Pump E-Flo 4000 E-Flo 3000 E-Flo 2000 E-Flo 1500 Max Fluid Pressure 17 bar (250 psi) 23 bar (330 psi) 32 bar (460 psi) 34.5 bar (500 psi) Flow at 20 cpm 85.5 lpm (22.6 gpm) 61 lpm (16.2 gpm) 45 lpm (12 gpm) 31 lpm (8.1 gpm) Volume per Cycle 4278 cc (144.6 oz) 3070 cc (105 oz) 2263 cc (76.5 oz) 1537 cc (52 oz) Inlet/Outlet 2 inch Tri-Clamp 2 inch Tri-Clamp 2 inch Tri-Clamp 1-1/2 inch Tri-Clamp Weight 250 kg (550 lb) 245 kg (540 lb) 234 kg (516 lb) 209 kg (460 lb) Dimensions 138.2 cm (54.4 in) 55.1 cm wide (21.7 in) 77.0 cm length (30.3 in) 81.3 cm (32.0 in) 16.0 cm (6.3 in) E-Flo stand is optional and does not come with standard product P R O V E N Q U A L I T Y. L E A D I N G T E C H N O L O G Y. Get the benefits of a piston pump with the energy efficiency of an electric drive unit! • Dual midrange High-Flo stainless steel lowers operating out of phase for lower pressure variation • Online maintenance simplifies repair and reduces downtime • Include a Graco programmed VFD for less pressure variation, as well as, integrated overpressure protection and remote monitoring of performance via computer or PLC • Pneumatically controlled BPR (back pressure regulator) remotely reduces fluid pressure during off-production operation and extends material integrity and realizes further energy cost savings E-Flo™ Electric Circulating Pumps

Open the catalog to page 1

Standard Kits E-Flo 4000 E-Flo 3000 E-Flo 2000 E-Flo 1500 UHMWPE piston seal kit 277358 277362 277360 289548 UHMWPE/Leather throat seal kit 277357 277357 277357 277357 Chromex piston rod 15H280 15H280 15H280 15H280 Maxlife piston rod 15H589 15H589 15H589 15H589 Chrome cylinder 15G882 183048 183047 183049 Maxlife cylinder 15H451 15H453 15H452 - Lowers E-Flo 4000 E-Flo 3000 E-Flo 2000 E-Flo 1500 Stainless Steel Cromex 253522 253521 253520 289366 Stainless Steel Maxlife 253525 253524 253523 - Manifold Assembly E-Flo 4000 E-Flo 3000 E-Flo 2000 E-Flo 1500 Stainless Steel Cromex 15J749 15J748 15J747...

Open the catalog to page 2
